Product Description

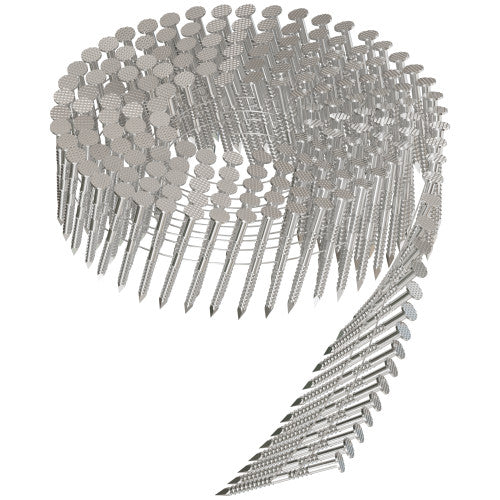

The Simpson 15 deg. Wire Coil Full Round Head Ring-Shank Nail, 1-1/2 in., Type 304 Stainless Steel, 3600-Pack is a high-performance collated fastener built for general framing and wood deck board installation where corrosion resistance and holding strength are non-negotiable. Manufactured by Simpson, this 4d nail combines an annular ring shank with Type 304 stainless steel construction, delivering the withdrawal resistance and long-term durability that exposed or moisture-prone assemblies demand. Wire-coil collation at a 15 deg. angle pairs with many major manufacturers' pneumatic coil nailers, helping crews reduce driving force and move faster on the job.
Key Features
- Annular ring shank - increases withdrawal resistance significantly compared to smooth-shank nails, creating a more secure, long-lasting attachment in framing and decking applications
- Type 304 stainless steel finish - provides high-level corrosion resistance, making these nails well suited for decks and framing exposed to moisture or corrosive conditions where standard fasteners may fail prematurely
- Checkered head pattern - blends with wood grain, reduces sunlight glare, and accepts surface finishes, keeping the finished appearance clean and consistent on visible deck boards
- 15 deg. wire-coil collation - compatible with many major manufacturers' pneumatic coil nailers, reducing driving force and increasing installation speed versus hand nailing
- Full round head with 1/4 in. diameter - maximizes bearing surface against the workpiece for a reliable, code-friendly connection in structural framing
- Diamond point tip - promotes accurate nail placement and cleaner wood penetration, reducing splitting in decking lumber
- 3,600 nails per package - bulk quantity minimizes reload stops and keeps production moving on larger framing or decking projects
Why This Product
- Built to resist corrosion in demanding environments - Type 304 stainless steel construction gives these fasteners a clear durability advantage over standard galvanized options in exterior decking and framing assemblies exposed to weather and moisture
- Holds tighter, longer - the annular ring shank mechanically locks into wood fibers to resist pull-out forces, making this nail a dependable choice for deck board attachment and structural connections that need to stay secure over time
- Designed for pneumatic productivity - 15 deg. wire-coil collation is compatible with many major manufacturers' coil nailers, so contractors can drive nails faster and with less fatigue than hand nailing, keeping large framing and decking jobs on schedule
- Finish-friendly head for visible applications - the checkered head pattern reduces glare and accepts stains or surface finishes, making these nails a practical pick for deck boards where appearance matters as much as performance
Specifications
- Model Number: S12A150PNB
- Material / Finish: Type 304 Stainless Steel
- Gauge: 12
- Penny Size: 4d
- Length: 1-1/2 in.
- Shank Diameter: 0.099 in.
- Shank Type: Annular-Ring Shank
- Head Type: Full Round Head
- Head Diameter: 1/4 in.
- Head Pattern: Checkered
- Point Type: Diamond Point
- Collation Type: Wire Coil
Options
- For tool compatibility questions, refer to the complete Tool Compatibility Matrix, or Contact us and a sales professional will assist with fastener selection.
Frequently Asked Questions
What type of nailer is compatible with these nails?
These nails feature 15 deg. wire-coil collation, which is compatible with many major manufacturers' pneumatic coil nailers that accept 15 deg. wire-coil format. This collation style helps reduce driving force and increases installation speed compared to hand nailing.
Why choose Type 304 stainless steel over standard galvanized nails?
Type 304 stainless steel provides a high level of corrosion resistance, making these nails suitable for demanding environments where standard galvanized fasteners may fall short. This makes them a strong choice for decking and framing applications exposed to moisture or corrosive conditions.
What are the key specifications of this nail?
This nail is 1-1/2 inches in length with a 0.099-inch shank diameter (12 gauge), a 1/4-inch full round head diameter, a diamond point, and an annular ring shank. It is collated at a 15 deg. angle using wire-coil collation, and each package contains 3,600 nails.
What does the annular ring shank do, and why does it matter?
The annular ring shank increases withdrawal resistance compared to a smooth-shank nail, meaning the nail resists backing out over time once driven. This provides a more secure and long-lasting attachment, which is especially important in general framing and decking applications where joint integrity is critical.
