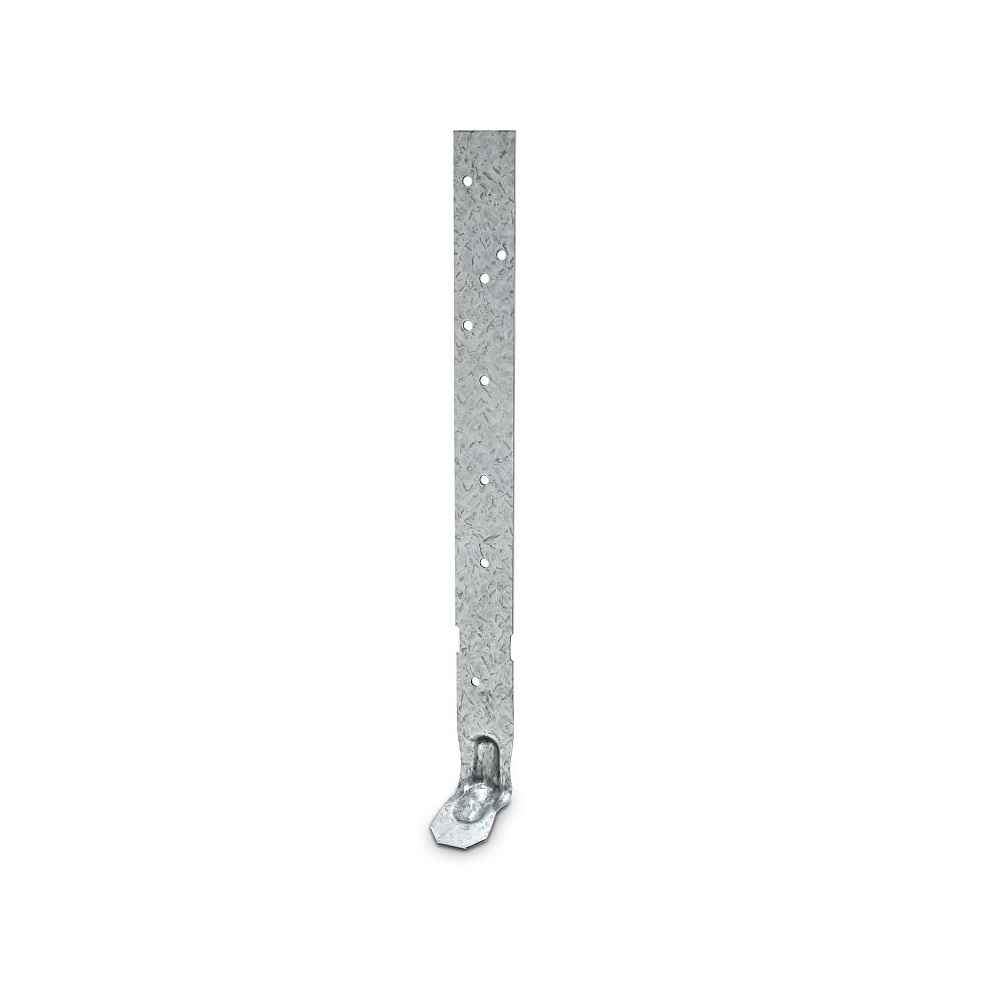

The Simpson META16 12" w/4" Embed Truss Anchor from Simpson Strong-Tie delivers an engineered method to attach roof trusses securely to concrete and masonry walls, giving builders a reliable, tested connection that stands up to wind and seismic forces. With a 12-in. exposed length and a 4-in. embed depth, this medium embedded truss anchor features staggered nail patterns that strengthen uplift resistance, making it a strong choice for both single- and multi-ply truss applications. Its versatile design can be installed straight or field-bent around truss or rafter members, adapting easily to real-world job-site conditions.

Key Features

• Indented embedment line ensures accurate embedment depth - takes the guesswork out of installation so the anchor seats correctly in concrete or masonry every time.
• Load rated for wind and seismic forces - gives builders and inspectors confidence that the connection meets engineered performance requirements in demanding conditions.
• Staggered nail pattern design - strengthens uplift resistance so the truss-to-wall connection holds firm under the lateral and vertical loads that matter most.
• Can be installed straight or field-bent around truss or rafter members - provides flexible on-site positioning to accommodate varying framing configurations without special tools or additional parts.
• Compatible with the Simpson Strong-Tie TSS truss seat snap-in and TBP8 moisture barrier plate - works as part of a coordinated system to address both structural performance and moisture protection at the wall-to-roof connection.
• Made from 18-gauge steel with a Zinc Galvanized G90 finish - delivers a sturdy, corrosion-resistant connector built to perform in exposed or harsh environments over the long term.
• Usable in pairs on single- and multi-ply trusses - offers a single connector solution that scales to different truss configurations, reducing the need to source separate hardware for varying conditions.

Why This Product

• Engineered and tested for structural reliability - the META16 is rated for both wind and seismic uplift forces, so contractors working in code-sensitive regions have a connector that meets the demands of modern building requirements without compromise.
• Built-in depth indicator removes installation error - the indented embedment line guides the installer to the correct 4-in. embed depth automatically, reducing costly mistakes and saving time during concrete or grouted block wall placement.
• Adaptable to a wide range of roof framing situations - whether the job calls for a straight installation or requires field-bending around a truss or rafter member, this embedded truss anchor adjusts to the application rather than forcing the framing to adjust to the connector.
• Corrosion resistance built into the base material - the G90 zinc galvanized coating protects the steel anchor in conditions where moisture exposure at the wall-to-roof interface is a long-term concern, supporting durability throughout the life of the structure.

Specifications

• Model Number (MPN): META16
• Brand: Simpson Strong-Tie
• Exposed Length: 12 in.
• Embed Depth: 4 in.
• Gauge: 18
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Minimum Concrete Beam: 6 in.
• Minimum Grouted Block Wall: 8-in. nominal
• Install With: 0.148 in. x 1-1/2 in. nails (or) 0.162 x 3-1/2 in. nails
• Country of Origin: United States

Approved Applications

• Attaching roof trusses to concrete walls
• Attaching roof trusses to masonry walls
• Single-ply truss installations
• Multi-ply truss installations (used in pairs)
• Applications requiring resistance to wind and seismic uplift forces
• Installations requiring straight or field-bent connector configuration around truss or rafter members

Frequently Asked Questions

How deep does the META16 need to be embedded?

The META16 must be embedded 4 in. into either a 6-in. minimum concrete beam or an 8-in. nominal grouted block wall. The indented embedment line on the anchor makes it easy to achieve the correct embedment depth accurately during installation.

Can the META16 be used on multi-ply trusses?

Yes. The META16 can be used in pairs on both single- and multi-ply trusses, providing a secure and engineered connection method for a variety of truss configurations.

What fasteners should be used to install the META16?

The META16 should be installed with 0.148 in. x 1-1/2 in. nails or 0.162 x 3-1/2 in. nails. Using all specified fasteners is required to achieve the rated load performance of the anchor.

Is the META16 compatible with other Simpson Strong-Tie accessories?

Yes. The META16 is compatible with the Simpson Strong-Tie TSS truss seat snap-in and the TBP8 moisture barrier plate, allowing for a more complete and integrated truss-to-wall connection system.
