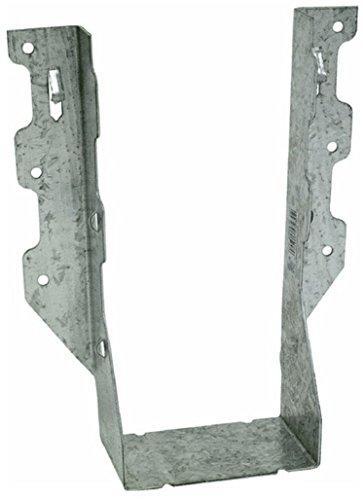

The Simpson LUS28-2 LUS Galvanized Face-Mount Joist Hanger for Double 2x8 by Simpson is an economical, easy-to-install face-mount hanger engineered to deliver reliable support underneath joists, rafters, and beams. Designed for double 2x8 and double 2x10 nominal lumber, this hanger is built around a patented double-shear nailing system that distributes the load through two points on each joist nail, giving you a stronger connection with fewer nails and faster installation. Constructed from 18-gauge steel with a G90 zinc galvanized finish, it holds up in moisture-prone and outdoor framing applications where corrosion resistance matters.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, so you get a stronger connection while driving fewer nails and keeping installation time down
• Speed prongs - hold the hanger in position during placement, freeing up your hands and reducing fumbling on the job site
• Angled joist nailing - lets you drive nails at an angle, making it easier to fasten in confined or tight framing spaces where a straight drive is difficult
• 18-gauge steel construction - provides a solid structural base that holds rated loads without adding unnecessary bulk to the connection
• G90 zinc galvanized finish - delivers extra corrosion resistance, making this hanger a dependable choice for decks, exterior framing, and other moisture-exposed applications
• Compatible with common nails and Simpson Strong-Tie fasteners - works with all common nails or Simpson Strong-Drive SD and SCN fasteners, giving you flexibility with the hardware already on your truck
• Tabs must not be bent or removed - preserving the tabs as designed is essential to maintaining the hanger's rated load performance and structural integrity

Why This Product

• Fewer nails, no compromise on strength - the patented double-shear design achieves greater connection strength than standard hangers while actually reducing the nail count, cutting both material use and installation time on double joist framing
• Built for real job-site conditions - speed prongs and angled nailing positions mean this hanger goes in quickly even in tight bays and confined framing situations, reducing frustration and rework
• Ready for exterior and moisture-exposed framing - the G90 galvanized coating provides a higher level of corrosion protection than standard zinc plating, making it a practical choice for deck framing, exterior structures, and damp environments
• Versatile fit for two common lumber configurations - the LUS28-2 accommodates both double 2x8 and double 2x10 nominal members, reducing the number of different hanger SKUs you need to stock for a typical framing job

Specifications

• Model Number: LUS28-2
• Member Size: Double 2x8 and Double 2x10
• Width: 3-1/8 in.
• Height: 7 in.
• Seat Depth: 2 in.
• Gauge: 18
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States

Frequently Asked Questions

What makes the double-shear nailing design beneficial?

The patented double-shear nailing design distributes the load through two points on each joist nail, resulting in greater connection strength. This means fewer nails are needed compared to standard designs, speeding up installation while maintaining a strong, reliable connection using all common nails.

What fasteners should be used to install the LUS28-2?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (6) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (10) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG).

Is the LUS28-2 suitable for use in corrosive or outdoor environments?

The LUS28-2 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance, making it well-suited for applications where moisture exposure is a concern.

Can the tabs on the LUS28-2 be bent or removed for easier fitting?

No. The tabs on the LUS28-2 must not be bent or removed. Modifying the tabs could compromise the structural integrity and load-rated performance of the hanger. Use all specified fasteners and follow installation guidelines to achieve rated table loads.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
