Product Features
Product Description

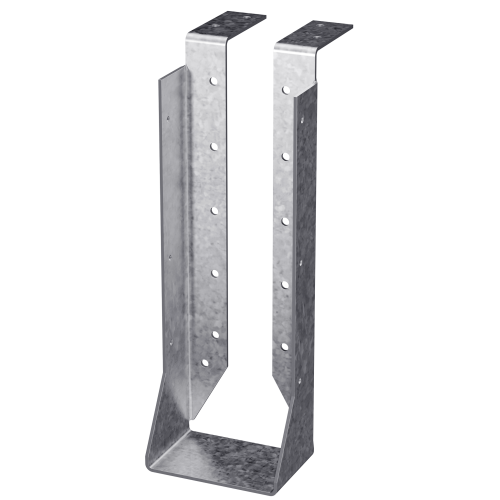

The Simpson Strong-Tie HUC46TF is a heavy-duty hybrid joist hanger that combines the advantages of both face-mount and top-mount hanger designs into a single versatile connector. Engineered with two concealed top flanges, the HUCTF series is purpose-built for end-of-wall or corner installations where a clean, concealed flange profile is required. Face-nailing capability allows the hanger to be securely attached to the framing member, delivering a strong, reliable connection for 4x6 nominal joist applications. Built from 12-gauge steel with a G90 zinc galvanized coating, this hanger is tested, load rated, and code compliant for structural confidence on every job.
Key Features
- Hybrid Face-Mount & Top-Mount Design: Incorporates the advantages of both face-mount and top-mount hangers in a single connector.
- Two Concealed Top Flanges: Designed for end-of-wall or corner installation with a clean, concealed-flange profile.
- Face-Nailing Capability: Allows the hanger to be securely attached directly to the framing member.
- Slope Capability: Can be sloped a maximum of 45 deg.; no skew options available.
- 12-Gauge Steel Construction: Heavy-duty steel provides superior strength for structural load transfer.
- G90 Zinc Galvanized Finish: Corrosion-resistant coating protects against environmental exposure.
- Tested, Load Rated & Code Compliant: HUCTF-series hangers meet testing and code compliance standards.
- Rough Beam Sizes: Available by special order for non-standard applications.
Specifications
- Model Number: HUC46TF
- Nominal Joist / Member Size: 4x6
- Steel Gauge: 12-gauge
- W (Width): 3 9/16 in.
- H (Height): 5 3/8 in.
- B (Seat Width): 2 1/2 in.
- TF (Top Flange): 2 1/2 in.
- Coating / Finish: Zinc Galvanized, G90
- Maximum Slope: 45 deg.
- Skew Options: None
- Country of Origin: United States
Approved Applications
- End-of-wall joist connections requiring a concealed top-flange profile
- Corner framing installations where standard face-mount hangers cannot be used
- Structural connections for 4x6 nominal joist or beam members
- Applications requiring slope adjustments up to a maximum of 45 deg.
Installation Fasteners
The HUC46TF installs with the following nails (fasteners not included unless otherwise noted):
- Header: (10) 0.
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What joist size is the HUC46TF designed for?
- The HUC46TF is designed for nominal 4x6 joist applications. If you require a rough beam size, those are available by special order.
- What nails are required to install the HUC46TF?
- Installation requires 10 nails measuring 0.162 in. x 3-1/2 in. in the header and 4 nails measuring 0.148 in. x 3 in. in the joist.
- Can the HUC46TF be installed at an angle?
- Yes, the HUC46TF can be sloped a maximum of 45 deg.. However, no skew options are available for this hanger.
- What material and finish is the HUC46TF made from?
- The HUC46TF is constructed from 12-gauge steel with a G90 zinc galvanized coating, which provides corrosion resistance for added durability in exposed or demanding environments.
