Product Features
Product Description

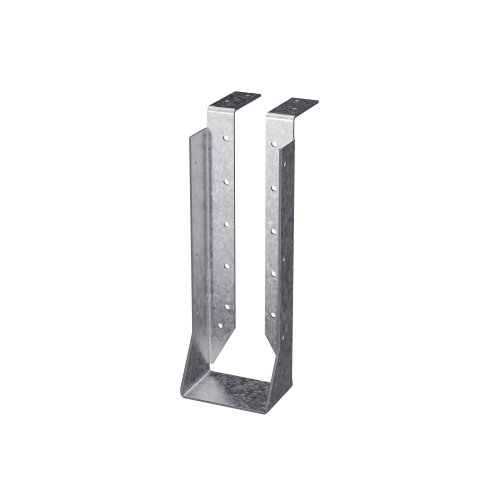

The Simpson Strong-Tie HUC414TF is a heavy-duty, galvanized concealed top-flange face-mount joist hanger engineered for 4x14 nominal lumber. Part of Simpson Strong-Tie's HUCTF series, this hybrid hanger combines the advantages of both face-mount and top-mount designs, featuring two concealed flanges that make it ideal for end-of-wall or corner installation. Its face-nailing configuration allows for a secure, reliable connection to the structural member, delivering performance trusted by builders and engineers on demanding projects.
Key Features
- Hybrid design incorporates the advantages of both face-mount and top-mount hangers
- Two concealed flanges engineered for end-of-wall or corner installation
- Face-nailing allows the hanger to be securely attached to the member
- Nominal joist size: 4x14
- Made from 12-gauge steel for heavy-duty strength and durability
- Galvanized (G90) for corrosion resistance
- The hanger can be sloped a maximum of 45 deg., with no skew options available
- HUCTF-series hangers are tested, load rated and code compliant
- Rough beam sizes are available by special order
Specifications
- MPN: HUC414TF
- Brand: Simpson Strong-Tie
- Series: HUCTF
- Member Size: 4x14
- Steel Gauge: 12
- Width (W): 3 9/16 in.
- Height (H): 13 in.
- B: 2 1/2 in.
- TF: 2 1/2 in.
- Coating / Finish: Zinc Galvanized, G90
- Installation Fasteners: Installs with (18) 0.162 in. x 3-1/2 in. nails in the header and (8) 0.148 in. x 3 in. nails in the joist (sold separately)
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What makes the HUC414TF a hybrid hanger?
- The HUC414TF is considered a hybrid hanger because it incorporates the advantages of both face-mount and top-mount hangers. Its two concealed flanges provide top-flange support while its face-nailing design allows it to be securely attached directly to the structural member.
- What lumber size is the HUC414TF designed for?
- The HUC414TF is designed for a nominal 4x14 joist or beam member. It measures 3 9/16 in. wide and 13 in. tall to accommodate that lumber size.
- Can the HUC414TF be installed at an angle?
- Yes. The HUC414TF can be sloped a maximum of 45 deg.. However, no skew options are available for this hanger.
- Is the HUC414TF code compliant and load rated?
- Yes. HUCTF-series hangers, including the HUC414TF, are tested, load rated, and code compliant, making them suitable for use in structurally critical applications.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
