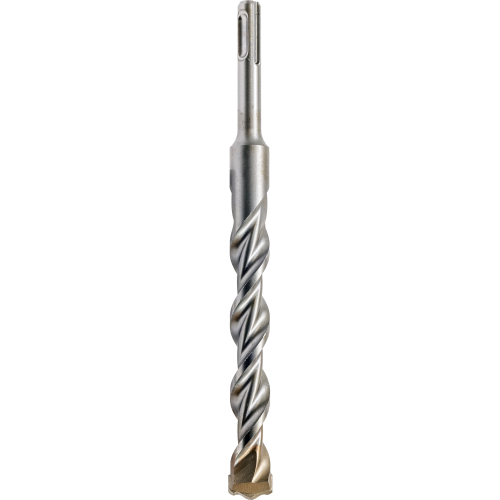

Simpson MDPL07508 3/4 in. x 8 in. SDS-plus Shank Drill Bit is a professional-grade, carbide-tipped SDS-plus drill bit from Simpson Strong-Tie, engineered to deliver superior performance in concrete drilling and demolition applications. Built to the highest industry standards, this bit features a chromium-nickel-molybdenum steel alloy body and uniformly brazed carbide inserts that combine long service life with fast, precise drilling in demanding jobsite conditions.

Key Features

• Uniformly brazed carbide inserts result in longer bit life
• Most bits contain a centering tip that facilitates easy spot drilling
• Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Drill bits conform to ANSI Standard B212.15
• Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
• High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• Designed to meet precise tolerance requirements with proprietary features that enhance durability, drilling speed, and ease of use

Specifications

• Model Number (MPN): MDPL07508
• Brand: Simpson Strong-Tie
• Shank Type: SDS-plus Shank
• Head Type: 2-Cutter Head
• Diameter: 3/4 in.
• Drilling Depth: 6 in.
• Overall Length: 8 in.
• Material: Hardened Steel (Chromium-Nickel-Molybdenum Steel Alloy Body with Carbide Tip)
• Standard Compliance: ANSI Standard B212.15
• Country of Origin: Germany (DE)

Frequently Asked Questions

What type of shank does the MDPL07508 use, and which tools is it compatible with?

The MDPL07508 features an SDS-plus shank, which is the industry-standard interface designed to fit SDS-plus rotary hammers and rotohammers. This shank type provides a secure, tool-free bit change and allows the hammer mechanism to drive the bit efficiently during concrete drilling.

What are the key dimensions of this drill bit?

This drill bit has a diameter of 3/4 in., an overall length of 8 in., and a maximum drilling depth of 6 in., making it well-suited for medium-depth anchor hole drilling in concrete and masonry applications.

What construction features contribute to the durability and long life of this bit?

The bit's longevity comes from several engineered features: uniformly brazed carbide inserts for consistent tip integrity, a chromium-nickel-molybdenum steel alloy body for hammering strength, and heat-treatment procedures combined with a shot-peened finish that increase surface hardness and resistance to bending forces while reducing wear over time.

How does this bit handle concrete dust during drilling?

The chisel-shaped drill-bit head is designed to penetrate material efficiently while directing concrete dust into the high-volume, multi-flute spiral. This spiral then quickly channels the dust out of the hole, helping maintain drilling speed and preventing clogging during use.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
