Key Features

• Uniformly Brazed Carbide Inserts: Consistent brazing across the carbide tip results in longer bit life and more predictable performance over extended use.
• Chromium-Nickel-Molybdenum Steel Alloy Body: This high-performance steel alloy ensures superior hammering quality and extended service life under demanding conditions.
• Heat-Treatment & Shot-Peened Finish: Advanced heat-treatment procedures and a shot-peened finish increase surface hardness, boost drilling speed, reduce drill bit wear, and improve resistance to bending forces.
• ANSI Standard B212.15 Compliant: Drill bits conform to ANSI Standard B212.15, ensuring dimensional accuracy and interoperability with standard SDS-plus rotary hammer tools.
• Chisel-Shaped Drill-Bit Head: The chisel-shaped head penetrates material efficiently and directs concrete dust into the multi-flute spiral for cleaner, faster drilling.
• High-Volume Multi-Flute Spiral: Quickly channels concrete dust from the hole to improve drilling speed and reduce clogging during operation.
• Solid-Tip Carbide Construction: Provides a robust, solid-tip carbide cutting surface optimized for use in concrete and masonry.
• SDS-Plus Shank: Compatible with the standard SDS-plus interface found on a wide range of professional rotary hammer tools.

Specifications

• Model Number (MPN): MDPL02512S
• Brand: Simpson Strong-Tie
• Head Type: Solid-Tip Carbide Drill Bit
• Shank Type: SDS-plus
• Diameter: 1/4 in.
• Overall Length: 12 in.
• Drilling Depth: 10 in.
• Body Material: Chromium-Nickel-Molybdenum Steel Alloy (Hardened Steel)
• Tip Material: Solid-Tip Carbide
• Industry Standard: ANSI Standard B212.15
• Country of Origin: Germany

Approved Applications

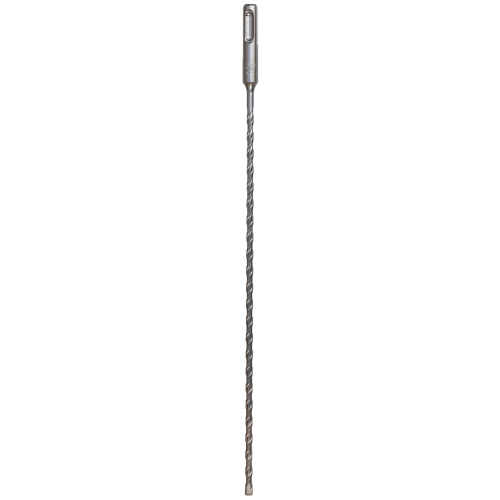

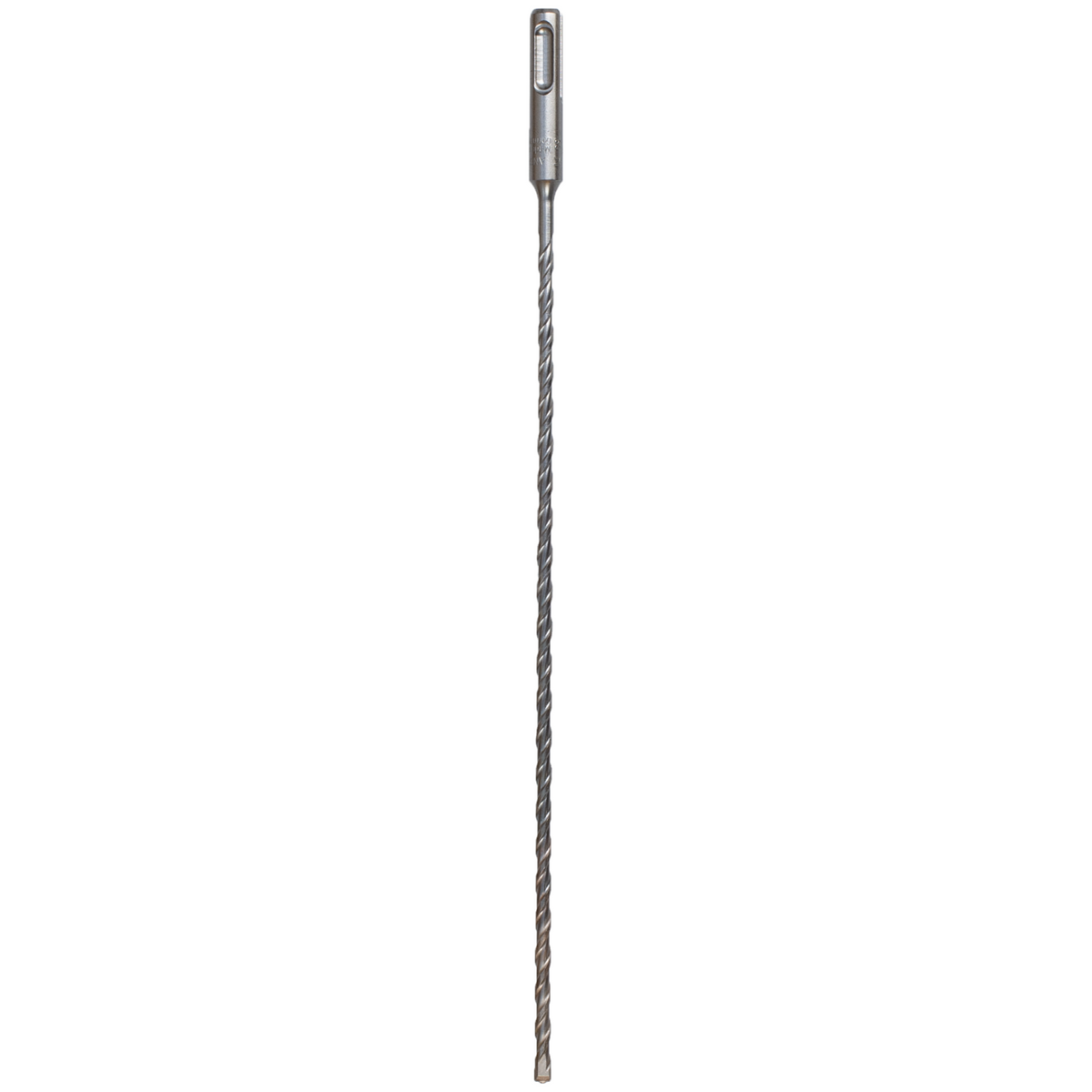

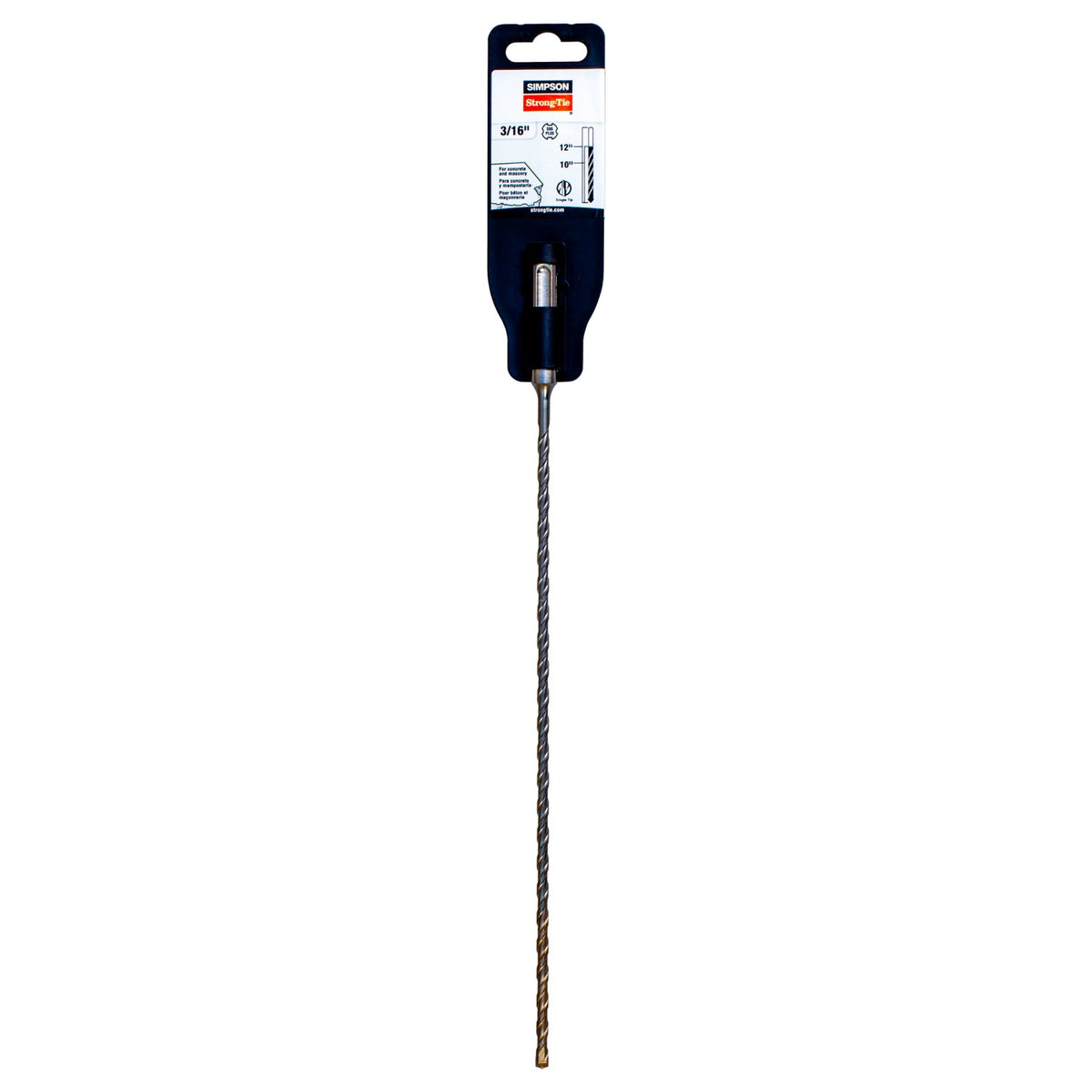

The Simpson MDPL02512S Solid-Tip Carbide SDS-plus Drill Bit is designed for professional concrete drilling applications requiring precise, clean holes. Its chisel-shaped head and high-volume multi-flute spiral make it well suited for:

• Drilling into concrete and masonry materials
• Applications requiring adherence to ANSI Standard B212.15 dimensional tolerances
• High-volume drilling tasks where dust evacuation and drilling speed are critical
• Use with SDS-plus rotary hammer tools in professional construction and anchoring workflows

Frequently Asked Questions

What type of shank does this drill bit use, and will it fit my rotary hammer?

This drill bit features an SDS-plus shank, which is compatible with the standard SDS-plus interface found on a wide range of professional rotary hammer tools. As long as your rotary hammer accepts SDS-plus bits, this bit will fit and function correctly.

What are the overall length and maximum drilling depth of this bit?

The Simpson MDPL02512S has an overall length of 12 in. and a maximum drilling depth of 10 in., making it well suited for applications that require deeper anchor holes in concrete or masonry.

What materials and manufacturing processes make this bit durable for heavy-duty use?

The bit body is constructed from a chromium-nickel-molybdenum steel alloy, which ensures superior hammering quality and extended service life. It also undergoes heat-treatment procedures and a shot-peened finish that increase surface hardness, boost drilling speed, reduce wear, and improve resistance to bending forces. The carbide inserts are uniformly brazed for consistent performance and longer bit life.

Does this drill bit meet any industry standards for dimensional accuracy?

Yes, this drill bit conforms to ANSI Standard B212.15, which ensures dimensional accuracy and interoperability with standard SDS-plus rotary hammer tools, giving you confidence that the bit will perform consistently and fit properly in compliant equipment.
