Key Features

• Uniformly brazed carbide inserts result in longer bit life
• Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Drill bits conform to ANSI Standard B212.15
• Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
• High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• Solid-tip carbide drill bit construction for durability and precision
• SDS-plus shank for secure, tool-free bit changes in compatible rotary hammers

Specifications

• MPN: MDPL05006S
• Brand: Simpson Strong-Tie
• Head Type: Solid-Tip Carbide Drill Bit
• Shank Type: SDS-plus Shank
• Diameter: 1/2 in.
• Overall Length: 6-1/4 in.
• Drilling Depth: 4 in.
• Material: Hardened Steel
• Compliance: ANSI Standard B212.15
• Country of Origin: DE

Frequently Asked Questions

What type of shank does the MDPL05006S use, and which tools is it compatible with?

The MDPL05006S features an SDS-plus shank, which is the standard connection type used on SDS-plus rotary hammer drills. This shank design allows for secure, tool-free bit installation and removal while enabling the hammering mechanism to function efficiently.

What is the drilling depth of this bit?

This bit provides a maximum drilling depth of 4 in. It has an overall length of 6-1/4 in. and a diameter of 1/2 in.

What standards does this drill bit meet, and how is quality ensured?

The MDPL05006S conforms to ANSI Standard B212.15. It is manufactured to the highest industry standards, incorporating heat-treatment procedures and a shot-peened finish that increase surface hardness, improve drilling speed, reduce wear, and enhance resistance to bending forces. The uniformly brazed carbide inserts further contribute to consistent performance and long bit life.

How does the drill bit design help manage concrete dust during drilling?

The chisel-shaped drill-bit head is designed to penetrate the material efficiently while directing concrete dust into the high-volume, multi-flute spiral. That spiral then quickly channels the dust out of the hole, which helps maintain drilling speed and keeps the work area cleaner during operation.

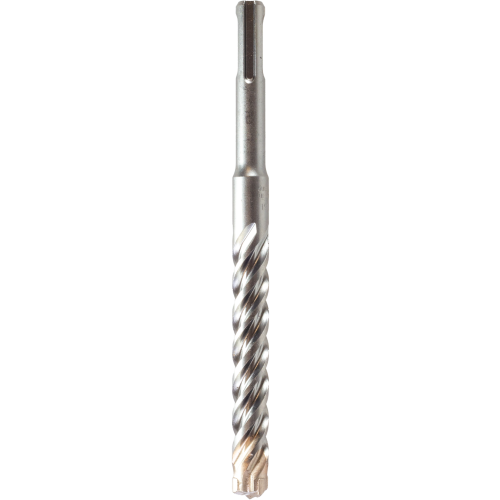

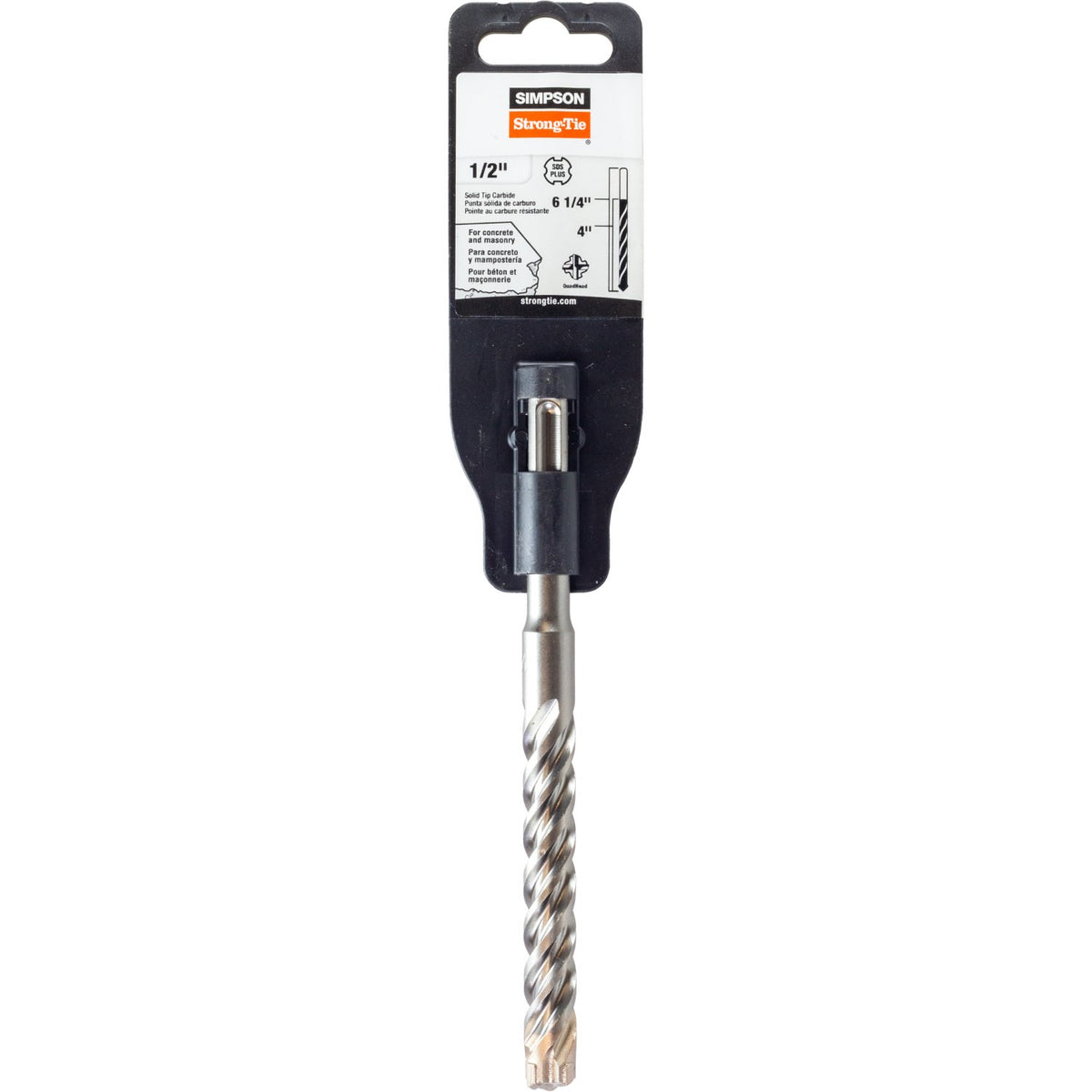

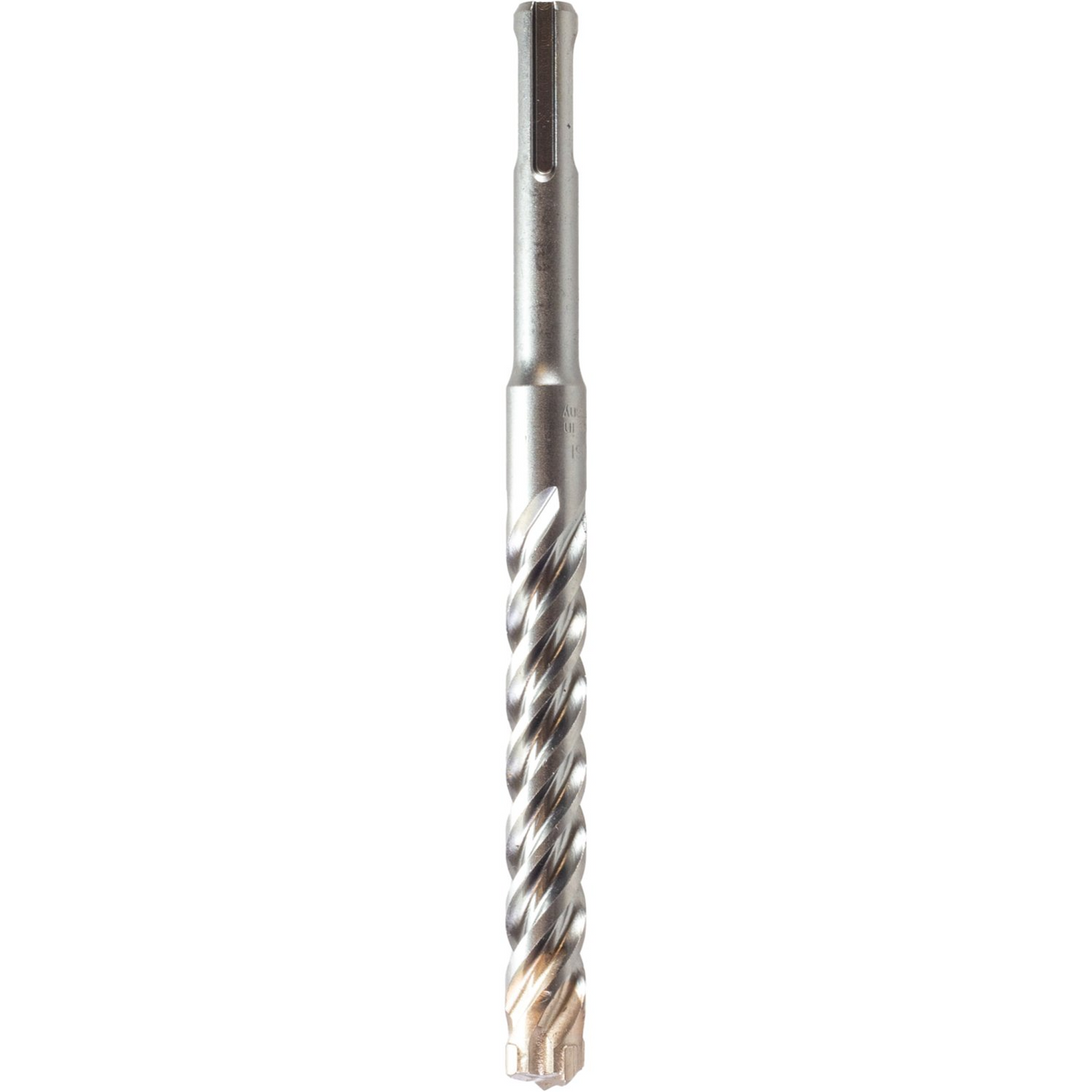

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
