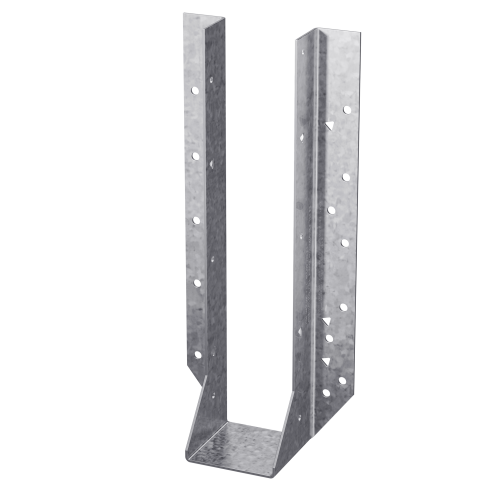

The Simpson HU4.28/9 Face-Mount Joist Hanger is a heavy-duty connector engineered for structural framing connections that demand additional strength and enhanced safety performance. Sized at 4-1/8 x 9-1/2 and built from 14-gauge steel with a Zinc Galvanized G90 coating, this hanger is purpose-built for load-critical installations in both residential and commercial construction. Whether you are working with heavy timber, engineered lumber, or complex framing geometries, the HU4.28/9 delivers the structural reliability that demanding projects require.

Key Features

• 14-Gauge Steel Construction - Provides heavy-duty load capacity suited for structural applications where standard hangers may not meet project requirements, giving builders confidence in safety-critical connections.
• Zinc Galvanized G90 Coating - Delivers a high level of corrosion resistance, making this hanger dependable in demanding environmental conditions and compatible with treated lumber.
• Face-Mount Design - Attaches directly to the face of the carrying member, simplifying installation and keeping framing connections straightforward on the job site.
• Configurable Seat Options - Available with a skewable seat and slope capability up to 45 deg., allowing this hanger to adapt to angled and sloped joist configurations that standard fixed hangers cannot accommodate.
• Broad Application Range - Approved for residential and commercial structural framing, heavy timber, and engineered lumber installations, making it a versatile choice across a wide range of project types.

Why This Product

• Built for Load-Critical Framing - The 14-gauge steel construction is specifically engineered for connections requiring additional strength and safety factors, reducing the risk of relying on an undersized connector in high-demand structural situations.
• Handles Complex Framing Conditions - With configurable skew and slope capability up to 45 deg., this hanger solves angled and sloped installation challenges that would otherwise require custom fabrication or compromise structural integrity.
• Corrosion Resistance You Can Rely On - The Zinc Galvanized G90 coating is suited for use with treated lumber and in environments where lesser coatings would degrade prematurely, supporting the long-term performance of the framed assembly.
• Domestic Quality for Professional Standards - Produced in the United States, the HU4.28/9 meets the quality expectations of contractors and engineers working on projects where material sourcing and consistency matter.

Specifications

• Model Number: HU4.28/9
• Gauge: 14
• Width - W: 4-9/32 in.
• Height - H: 9 in.
• Seat Depth - B: 2-1/2 in.
• Coating / Material: Zinc Galvanized, G90
• Mount Type: Face-Mount
• Seat Depth: 2-1/2 in.
• Width (W): 4-9/32 in.
• Height (H): 9 in.
• Country of Origin: United States

Approved Applications

• Structural framing connections requiring additional strength and safety factors
• Heavy timber and engineered lumber installations
• Applications involving angled or sloped joist configurations (up to 45 degrees)
• Residential and commercial construction projects with demanding load requirements

Options & Custom Configurations

Configurable options are available for this product, including a skewable seat and a seat that slopes up to 45 degrees. Contact us for configurable options and special orders.

Frequently Asked Questions

What gauge steel is the HU4.28/9 made from?

The HU4.28/9 is manufactured from 14-gauge steel, providing the heavy-duty strength required for load-critical structural applications.

What type of corrosion protection does this hanger have?

This hanger features a Zinc Galvanized G90 coating, which delivers a high level of corrosion resistance suitable for use in demanding environmental conditions and with treated lumber.

Can this hanger accommodate angled or sloped installations?

Yes. Select models in the HU series can be configured with a skewable seat and a seat that slopes up to 45 degrees, making them adaptable for complex framing geometries.

Where is the HU4.28/9 manufactured?

The HU4.28/9 is manufactured in the United States.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
