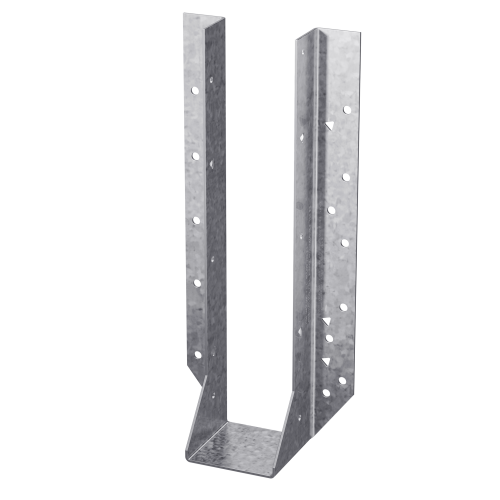

The Simpson 4-1/8 x 11-7/8 Face-Mount Joist Hanger by Simpson is a heavy-duty structural connector built for floor and roof framing applications where dependable load transfer and long-term performance are non-negotiable. Designed to mount directly to the face of a beam or ledger, this hanger accommodates larger lumber dimensions and delivers the reinforced connection strength that demanding framing projects require.

Key Features

• Heavy-duty face-mount configuration - mounts directly to the face of a beam or ledger, giving framers a secure, structurally sound connection for both floor and roof systems without compromising on alignment or load distribution
• 14-gauge steel construction - provides the load-bearing capacity needed for demanding structural applications where lighter-gauge hangers are not sufficient, supporting long-term integrity in high-stress framing
• G90 zinc galvanized coating - delivers a meaningful level of corrosion resistance, making this hanger compatible with pressure-treated lumber and suitable for installations where moisture exposure is a real-world concern
• Sized for larger lumber dimensions - the wide seat and generous height accommodate sizable framing members, reducing the need for field modifications and keeping installation straightforward on complex framing layouts

Why This Product

• Built for structural confidence - the heavy-duty, face-mount design paired with 14-gauge steel construction means this hanger is engineered specifically for framing scenarios that require additional strength and elevated safety performance beyond what standard hangers provide
• Corrosion resistance where it counts - the G90 zinc galvanized coating helps protect the hanger in environments with moisture or treated lumber contact, extending the serviceable life of the connection without requiring upgrades or substitutions
• Trusted brand with domestic production - manufactured by Simpson, a name widely recognized in structural connectors, this joist hanger is produced in the United States and meets the expectations of contractors and builders who specify quality on every job
• Designed for larger framing members - with a seat width and height sized to fit substantial lumber, this hanger reduces guesswork on the jobsite and is a practical fit for heavy timber framing, engineered lumber, and other large-dimension structural applications

Specifications

• Model Number: HU4.28/11
• Gauge: 14
• Width (W): 4-9/32 in.
• Height (H): 11 in.
• Seat Depth: 2-1/2 in.
• Coating/Material: Zinc Galvanized, G90
• Hanger Type: Face-Mount
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of hanger is the HU4.28/11?

The HU4.28/11 is a heavy-duty face-mount joist hanger. It mounts directly to the face of a beam or ledger, providing a strong structural connection for floor and roof framing systems that require additional strength and safety factors.

What gauge steel is used in the HU4.28/11?

This hanger is fabricated from 14-gauge steel, which provides the heavy-duty load capacity needed for demanding structural applications where standard-gauge hangers may not be sufficient.

What corrosion protection does the HU4.28/11 have?

The HU4.28/11 features a G90 zinc galvanized coating, which provides a layer of corrosion resistance suitable for use with pressure-treated lumber and in environments where moisture exposure is a concern.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
