The Simpson HU312-2 Heavy-Duty Face-Mount Joist Hanger is a professional-grade structural connector engineered by Simpson Strong-Tie to support double 3x12 lumber members in demanding framing applications. Built for projects where additional strength and safety factors are required, this heavy-duty hanger is the go-to choice of engineers and contractors for both residential construction and code-compliant structural builds.

Key Features

• "U" design allows for flexibility of placement on the header - makes positioning easier during installation, reducing layout time and giving you more control on the job site
• Nominal joist size: Double 3x12 - purpose-built to seat double 3x12 members securely, ensuring a proper fit for heavy structural framing without guesswork
• Made from 14-gauge steel - provides the structural rigidity and load-bearing capacity needed for heavy-duty face-mount hanger applications
• Galvanized (G90) for extra corrosion resistance - the zinc galvanized finish helps protect against corrosion, supporting long-term durability across a range of construction environments

Why This Product

• Engineered for heavy-duty structural performance - the HU series is specifically designed for structures requiring additional strength and safety factors, giving builders and engineers confidence in high-load framing connections
• Trusted by engineers and contractors - Simpson Strong-Tie connectors are engineered and tested to perform, making this hanger a proven choice for both professional framing crews and serious DIY builds
• Flexible header placement saves installation time - the "U" design lets you position the hanger where it works best on the header, reducing the need for precise pre-marking and speeding up the framing process
• Manufactured to high quality standards - produced in the United States and built to Simpson Strong-Tie quality benchmarks, this connector supports compliance with building codes on projects where connector performance is non-negotiable

Specifications

• Model Number: HU312-2
• Member Size: Double 3x12
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Width: 5-1/8 in.
• Height: 9-9/16 in.
• Seat Depth: 2-1/2 in.
• Country of Origin: United States
• Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size lumber does the HU312-2 support?

The HU312-2 is designed for a nominal member size of Double 3x12, making it ideal for heavy-duty structural framing applications that require additional strength and safety factors.

What gauge steel is the HU312-2 made from?

The HU312-2 is manufactured from 14-gauge steel, providing the structural rigidity required for heavy-duty face-mount joist hanger applications.

What type of corrosion protection does the HU312-2 have?

The HU312-2 features a G90 zinc galvanized coating, which provides extra corrosion resistance to help ensure long-term durability in various construction environments.

What fasteners should be used to install the HU312-2?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist for proper installation as specified by Simpson Strong-Tie.

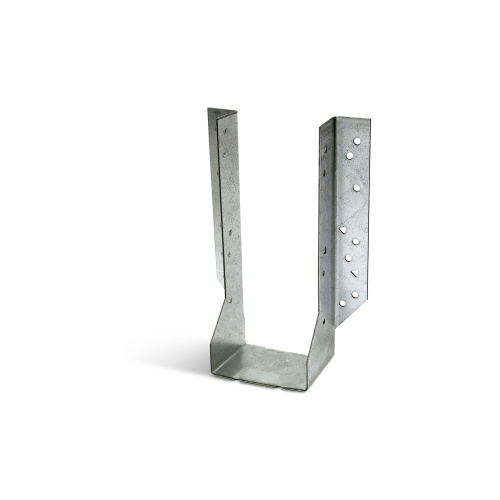

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
