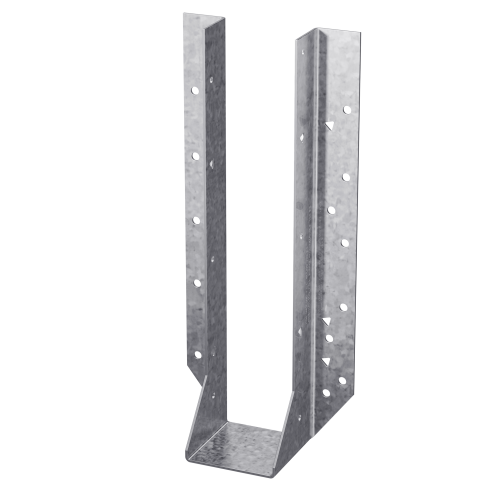

The Simpson Heavy Face-Mount Joist Hanger HU3.25/10.5 is an engineered heavy-duty connector designed for structural framing applications that demand elevated load capacity and dependable performance. Built by Simpson, this face-mount hanger is suited for wood-framed residential and light commercial construction where a reliable joist-to-beam or joist-to-header connection is required, including installations involving angled or sloped framing members.

Key Features

• Heavy-Duty 14-Gauge Steel Construction - Delivers superior structural capacity for framing assemblies requiring strength and safety factors beyond standard hanger ratings, giving builders confidence in high-load applications.
• G90 Zinc Galvanized Coating - Provides dependable corrosion resistance that holds up in demanding environments and meets compatibility requirements for treated lumber installations.
• Face-Mount Design - Installs directly to the face of a supporting beam, ledger, or header, making integration into framed assemblies straightforward and reducing installation complexity on the job site.
• Configurable Seat Options - Available with a skewable seat or a sloping seat of up to 45 deg. to accommodate angled and sloped framing conditions, adding versatility for specialized structural applications.
• Domestic Manufacturing - Produced in the United States, supporting consistent quality standards expected in engineered structural connectors.

Why This Product

• Engineered for Demanding Structural Work - This hanger is specifically rated for framing assemblies that exceed standard load requirements, making it a practical choice when safety margins and structural capacity are top priorities.
• Broad Application Compatibility - The face-mount configuration works across a range of common framing scenarios - including connections to beams, ledgers, and headers - while the configurable seat options extend its usefulness to sloped or skewed framing conditions up to 45 deg.
• Corrosion Protection Matched to the Job - The G90 galvanized coating is specified for use with treated lumber, so contractors working on projects with corrosion-resistance requirements do not need to source a separate product.
• Consistent Fit for Dimensional Lumber - With a width of 3-1/4 in. and a seat depth of 2-1/2 in., this hanger is sized to work with standard dimensional lumber framing, reducing the need for field modifications and keeping installations on schedule.

Specifications

• Model Number: HU3.25/10.5
• Gauge: 14
• Width (W): 3-1/4 in.
• Height (H): 10-1/4 in.
• Seat Depth: 2-1/2 in.
• Coating / Material: Zinc Galvanized, G90
• Hanger Type: Face-Mount Joist Hanger
• Country of Origin: United States

Approved Applications

• Structural framing assemblies requiring additional strength and safety factors beyond standard hanger ratings
• Face-mount joist connections to beams, ledgers, or headers in wood-framed construction
• Installations involving angled or sloped framing members where a skewable or sloping seat configuration is required
• Projects utilizing treated lumber where G90 galvanized coating is specified for corrosion compatibility

Configurable Options

This hanger is available with configurable options including a skewable seat and a sloping seat of up to 45 degrees for specialized framing conditions. To discuss configurable options, please Contact us.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.

Frequently Asked Questions

What are the dimensions of the HU3.25/10.5 joist hanger?

The HU3.25/10.5 has a width (W) of 3-1/4 in., a height (H) of 10-1/4 in., and a seat width (B) of 2-1/2 in., making it suited for dimensional lumber framing in residential and light commercial construction.

What gauge steel is used, and what corrosion protection does this hanger have?

This hanger is constructed from 14-gauge steel with a G90 zinc galvanized coating, which provides dependable corrosion resistance in exposed or treated-lumber environments.

Can this hanger accommodate angled or sloped framing conditions?

Select configurations of the HU series feature a skewable seat for angled framing conditions, and the seat can slope up to 45 degrees on configurable models, expanding versatility for non-standard framing angles.

How is the HU3.25/10.5 installed?

The HU3.25/10.5 uses a face-mount design, meaning it installs directly to the face of the supporting member for straightforward integration into framed assemblies.
