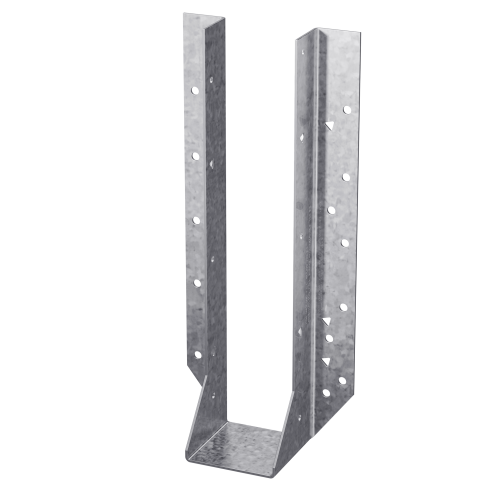

The Simpson HU210Z HU ZMAX Galvanized Face-Mount Joist Hanger is a heavy-duty structural connector from Simpson engineered for framing applications that demand additional strength and safety factors. Built to face-mount directly to a header and accept a nominal 2x10 joist, this hanger is the go-to choice of engineers and contractors who need a reliable, code-compliant connection - whether for interior framing, exterior decks, or pressure-treated lumber assemblies. Backed by rigorous testing and manufactured to high quality standards, it delivers the performance and peace of mind that demanding structural projects require.

Key Features

• Tested, load rated, and code compliant - meets building code requirements so builders and inspectors can move forward with confidence on regulated projects.
• U design allows for flexibility of placement on the header - makes it easier to position the hanger precisely where needed, reducing installation time and adjustment hassle.
• Accepts a nominal 2x10 joist with a seat width of 1-9/16 in. - sized to fit standard dimensional lumber consistently for a secure, snug connection every time.
• Made from 14-gauge steel - provides the heavy-duty structural strength needed for load-bearing framing applications where lighter hangers are not sufficient.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications - protects the connector against moisture and the corrosive chemicals found in treated lumber, extending the service life of the connection.

Why This Product

• Built for demanding structural environments - the combination of 14-gauge steel construction and ZMAX galvanized coating makes this joist hanger well-suited for exterior decks, covered structures, and anywhere treated lumber is in use.
• Engineered and tested by a trusted name in structural connectors - Simpson Strong-Tie connectors are designed, tested, and code listed, giving contractors and DIYers a verifiable performance standard rather than guesswork.
• Flexible face-mount U design simplifies installation - the U-style profile lets you adjust placement along the header without being locked into a single position, making it practical for both new construction and retrofit framing work.
• Manufactured in the United States to high quality standards - domestic production supports consistent dimensional accuracy and material quality, important when structural integrity is on the line.

Specifications

• Model Number: HU210Z
• Member Size: 2x10
• Height: 7-1/8 in.
• Width: 1-9/16 in.
• Seat Depth: 2-1/4 in.
• Gauge: 14
• Coating/Finish: ZMAX
• Country of Origin: United States
• Installation: Install with (8) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist is the HU210Z designed to support?

The HU210Z is designed for a nominal 2x10 joist size, with a seat width of 1-9/16 in.

What fasteners are required to install the HU210Z?

Install with (8) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 1-1/2 in. nails in the joist.

Is the HU210Z suitable for exterior or treated-wood applications?

Yes. The HU210Z features ZMAX galvanization, which offers extra corrosion resistance specifically for exterior and treated-wood applications.

Is the HU210Z code compliant?

Yes. HU-series hangers are tested, load rated, and code compliant, making them appropriate for structures that must meet building code requirements.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
