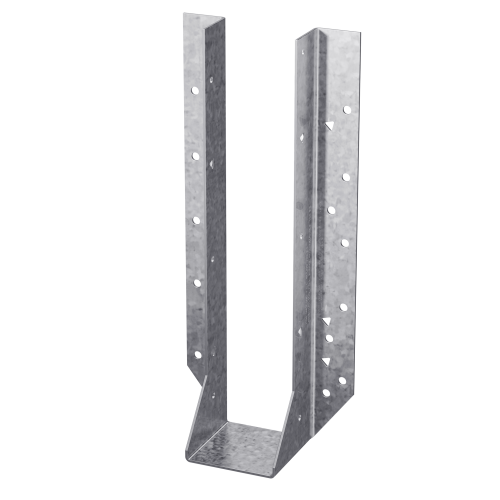

The Simpson HU2.1/11 Heavy-Duty Face-Mount Joist Hanger is a structural framing connector built by Simpson Strong-Tie for use with 2 in. x 11-7/8 in. engineered wood joists in applications that demand additional strength and safety factors. Manufactured from 14-gauge steel with a G90 zinc galvanized finish, this heavy-duty hanger is tested, load rated, and code compliant - making it a dependable choice for engineers, contractors, and builders working on residential and commercial framing projects where structural performance cannot be compromised.

Key Features

• Extra optional triangle holes for additional load - gives installers flexibility to increase load capacity when project conditions require it, without switching to a different connector
• Tested, load rated, and code compliant - meets building code requirements so contractors can use this hanger with confidence on permitted structural framing projects
• "U" design allows for flexibility of placement on the header - simplifies positioning during installation and accommodates minor variations in header placement without sacrificing a secure connection
• Accommodates actual joist sizes of 2 in. or 2-1/16 in. x 11-7/8 in. to 16 in. - provides a practical fit range for common engineered lumber dimensions, reducing the risk of mismatches on the job site
• Made from 14-gauge steel - delivers the heavy-duty strength required for load-bearing structural connections in demanding framing applications
• G90 zinc galvanized coating - resists corrosion in moisture-prone environments, helping maintain structural integrity over the life of the structure

Why This Product

• Heavy-duty performance where standard hangers fall short - the HU series is specifically engineered for structures requiring additional strength and safety factors, making it the right upgrade when a standard face-mount hanger is not sufficient for the load demands of the project
• Code-compliant and independently tested - HU-series hangers are tested and load rated, giving builders, inspectors, and engineers the documentation and assurance needed to use them in code-governed construction without guesswork
• Trusted by engineers and contractors - Simpson Strong-Tie connectors are the recognized choice among building professionals, meaning this hanger carries the reputation and engineering rigor that comes from a brand built on structural connector expertise
• Built-in corrosion protection for long-term reliability - the G90 galvanized finish adds a layer of durability that makes this hanger suitable for framing environments where moisture exposure is a real concern, protecting the connection over time

Specifications

• MPN: HU2.1/11
• Member Size: 2 in. x 11-7/8 in.
• Width: 2-1/8 in.
• Seat Depth: 2-1/2 in.
• Height: 11 in.
• Gauge: 14
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Installation Fasteners: Install with (16) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist is the HU2.1/11 designed to support?

The HU2.1/11 is designed for a member size of 2 in. x 11-7/8 in. The actual joist size accommodated is 2 in. or 2-1/16 in. x 11-7/8 in. to 16 in.

What fasteners are required to install the HU2.1/11?

Install with (16) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 1-1/2 in. nails in the joist.

Is the HU2.1/11 code compliant for use in structural framing?

Yes. HU-series hangers are tested, load rated and code compliant, making them suitable for structures that must meet building code requirements.

What does the G90 galvanized coating provide?

The G90 zinc galvanized coating provides corrosion resistance, helping the hanger maintain its structural integrity in environments where moisture exposure is a concern.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
