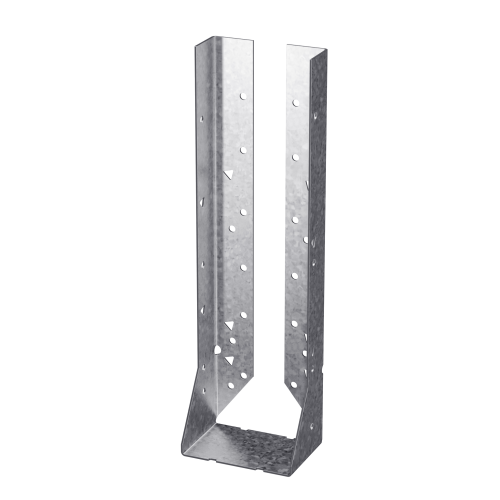

The Simpson 4 x 11-7/8 to 16 Concealed-Flange Heavy Face Mount Hanger is a professional-grade structural connector built for framing applications that demand both dependable load capacity and clean finished aesthetics. Engineered by Simpson to accommodate 4x joist members with depths ranging from 11-7/8 to 16 inches, this heavy face-mount hanger features concealed header flanges that tuck behind the header for unobtrusive, visually clean results - making it a practical choice for exposed architectural framing as well as demanding structural conditions.

Key Features

• Concealed header flanges - hide behind the header to deliver clean, finished visible lines, keeping exposed framing looking intentional and professional without sacrificing structural integrity.
• Heavy face-mount design - mounts directly to the face of the header for straightforward installation alignment, reducing layout complexity on the job site.
• Accommodates 4x lumber from 11-7/8 to 16 inches in depth - provides flexibility across a range of joist sizes within a single connector, reducing the need to source multiple hangers for varied framing depths.
• 14-gauge (68 mil) steel construction - delivers the heavy-duty strength required for structures with elevated load and safety factor requirements, supporting long-term structural reliability.
• Galvanized finish - provides a protective barrier against corrosion, helping extend the service life of the connector in challenging or moisture-prone environments.

Why This Product

• Handles a wide joist depth range in one connector - with compatibility spanning 11-7/8 to 16 inches, this hanger covers multiple heavy framing scenarios without requiring a different part for each joist size, simplifying procurement and on-site inventory.
• Built for projects where appearance and strength both matter - the concealed-flange design means this heavy-duty connector works equally well in exposed timber framing conditions where visible hardware would detract from the finished look.
• Heavy-gauge steel gives structural confidence - the 14-gauge (68 mil) build is specifically suited to applications requiring additional strength and safety margins, making it appropriate for demanding residential and commercial framing work.
• Made in the United States by a trusted connector brand - Simpson brings consistent manufacturing standards to this connector, giving builders and engineers a reliable component for load-path critical connections.

Specifications

• Model Number: HUC4.12/11
• Description: 4x11-7/8 TO 16 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
• Finish: Galvanized
• Material: 14 ga. (68 mil)
• Height: 10-5/16 in.
• Width: 4-1/8 in.
• Seat Depth: 2-1/2 in.
• Country of Origin: United States

Options

Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45 degrees.

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What joist sizes does the HUC4.12/11 support?

The HUC4.12/11 is designed to accommodate 4x lumber with depths ranging from 11-7/8 to 16 inches, making it versatile for a range of heavy structural framing applications.

What gauge steel is used in the HUC4.12/11?

This hanger is constructed from 14-gauge (68 mil) steel, providing the heavy-duty strength needed for structures with elevated load and safety factor requirements.

Why choose a concealed-flange hanger over a standard hanger?

The concealed header flanges of the HUC series hide behind the header, resulting in cleaner visible lines. This makes the hanger particularly well suited for exposed framing conditions where aesthetics matter alongside structural performance.

What finish does the HUC4.12/11 have, and why does it matter?

The HUC4.12/11 comes with a galvanized finish, which provides a protective layer against corrosion and helps extend the service life of the connector in demanding environments.

Note: Product dimensions and/or nail holes may differ from picture. Please see item description and Spec Sheet for specifications.
