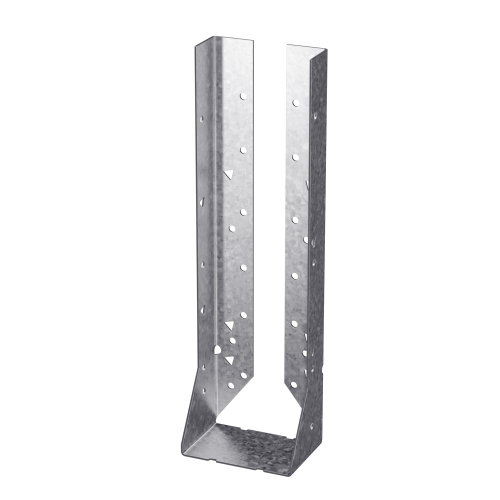

The Simpson 3 x 8 Concealed-Flange Heavy Face-Mount Hanger HUC38 is a heavy-duty joist hanger from Simpson built for structural framing applications that demand both reliable load-carrying capacity and a polished finish. Its concealed header flanges keep metal hardware out of sight behind the header, making it a practical choice for exposed framing where clean sightlines matter alongside structural performance. Designed for use with 3x8 dimensional lumber, this face-mount hanger delivers the strength and dependability that demanding construction projects require.

Key Features

• Concealed header flanges - hide the metal hardware behind the header for cleaner, more refined visible lines in exposed framing applications where appearance is a priority
• Heavy-duty construction - engineered for structures that require additional strength and elevated safety factors beyond what standard-duty hangers provide
• Face-mount design - attaches directly against the face of a header or beam, simplifying installation and alignment during framing
• 14-gauge (68 mil) steel construction - the heavier gauge material delivers robust load-carrying capacity suited to demanding structural conditions
• Galvanized finish - provides a layer of corrosion resistance, making the hanger better suited for environments where moisture exposure is a factor compared to uncoated steel hardware
• Sized for 3x8 dimensional lumber - purpose-built fit ensures proper bearing and consistent performance without field modification

Why This Product

• Aesthetics without compromise - the concealed-flange design keeps structural hardware hidden from view, making this hanger a strong fit for exposed timber framing where visible metal would detract from the finished look
• Built for demanding applications - heavy-duty, 14-gauge (68 mil) steel construction means this hanger is appropriate for projects where higher safety factors and greater load capacity are required
• Corrosion-resistant finish - the galvanized coating adds durability in moisture-prone environments, helping the hanger maintain integrity over time in conditions that would degrade unfinished steel
• Domestic manufacturing - this hanger is a product of the United States, reflecting Simpson's commitment to quality control throughout the production process

Specifications

• Model Number: HUC38
• Description: 3x8 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
• Material: 14 ga. (68 mil)
• Finish: Galvanized
• Height: 5-5/8 in.
• Width: 2-9/16 in.
• Seat Depth: 2-1/2 in.
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What lumber size is the HUC38 designed to support?

The HUC38 is specifically designed for use with 3x8 dimensional lumber in face-mount joist hanger applications.

Why choose a concealed-flange hanger over a standard face-mount hanger?

The concealed header flanges on the HUC38 keep the metal hardware hidden behind the header, resulting in cleaner visible lines. This makes it especially well-suited for exposed framing where appearance is important alongside structural performance.

What gauge steel is the HUC38 made from, and why does it matter?

The HUC38 is fabricated from 14-gauge (68 mil) steel, which classifies it as a heavy-duty hanger. This heavier gauge provides the additional strength and elevated safety factors required for demanding structural applications.

Is the HUC38 suitable for use in environments where corrosion is a concern?

The HUC38 features a galvanized finish, which provides a layer of corrosion resistance, making it more suitable for environments where moisture exposure may be a factor compared to uncoated steel hardware.

Note: Product dimensions and/or nail holes may differ from picture. Please see item description and Spec Sheet for specifications.
