Product Features
Product Description

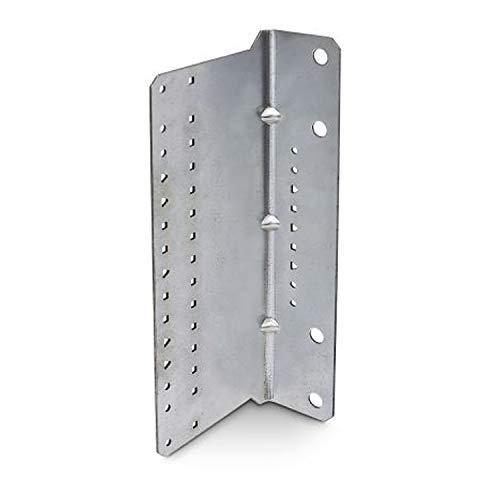

The Simpson Strong-Tie MSJC10.25-R15 is a 12-gauge (97 mil) galvanized steel-joist connector engineered specifically for cold-formed steel (CFS) joist, rafter, and underside-of-metal-deck applications. Measuring 2 in. x 4-1/2 in. x 10-1/4 in., this uniquely dimensioned clip enables easy installation on the open side of joists and rafters with flanges up to 3-1/2 in. and return lips up to 3/4 in. Prepunched 3/8 in. holes eliminate the need for predrilling, reducing installation time and labor cost. For metal-deck applications, those same prepunched holes readily accommodate 6 in., 8 in., 10 in., and 12 in. on-center metal-deck flutes. Finished with a G90 zinc galvanized coating for enhanced corrosion resistance, this connector is made in the United States and sold in a convenient 15-count pack.
Key Features
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements, and provide installation flexibility
- Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
- 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
- Also accommodates kicker-to-metal-deck applications
- Made from 12-gauge (97 mil) steel for robust structural performance
- Galvanized (G90) finish provides extra corrosion resistance
- Pack quantity of 15 connectors per order
Specifications
- Attribute: Detail
- Manufacturer: Simpson Strong-Tie
- Model Number (MPN): MSJC10.25-R15
- Size (in.): 2 in. x 4-1/2 in. x 10-1/4 in.
- Gauge: 12
- Thickness: 97 mil
- Coating / Finish: Zinc Galvanized, G90
- Material: Steel
- Pack Quantity: 15
- Country of Origin: United States
Approved Applications
- CFS (cold-formed steel) joist connections - open-side installation on joists with flanges up to 3-1/2 in. and return lips up to 3/4 in.
- CFS rafter connections - hard-side or soft-side attachment flexibility
- Underside-of-metal-deck applications - prepunched 3/8 in. holes accommodate 6 in., 8 in., 10 in., and 12 in. on-center metal-deck flutes
- Kicker-to-metal-deck applications
What's Included
- 15 x Simpson Strong-Tie MSJC 2 in. x 4-1/2 in. x 10-1/4 in. 12-Gauge Galvanized Steel-J
Frequently Asked Questions
- What applications is the MSJC10.25-R15 designed for?
- This connector is specifically designed for cold-formed steel (CFS) joist, rafter, and underside-of-metal-deck applications. It also accommodates kicker-to-metal-deck applications. The clip's unique dimensions allow installation on the open side of joists and rafters with flanges up to 3-1/2 in. and return lips up to 3/4 in., and its prepunched 3/8 in. holes accommodate 6 in., 8 in., 10 in., and 12 in. on-center metal-deck flutes.
- Does this connector support both hard-side and soft-side joist attachment?
- Yes. The angle lengths on this connector accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in. Specifically, the 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in., providing flexibility across a wide range of design and application requirements.
- What material and finish is used on the MSJC10.25-R15?
- The connector is made from 12-gauge (97 mil) steel and features a G90 zinc galvanized coating for extra corrosion resistance. Its dimensions are 2 in. x 4-1/2 in. x 10-1/4 in., and it is sold in a 15-count pack.
- Do the prepunched holes eliminate the need for predrilling during installation?
- Yes. The prepunched holes are designed to reduce installation cost and labor by eliminating the need for predrilling. The intuitive fastener hole positions also ensure accurate clip installation in accordance with design requirements and provide installation flexibility across a wide range of applications.
