Product Description

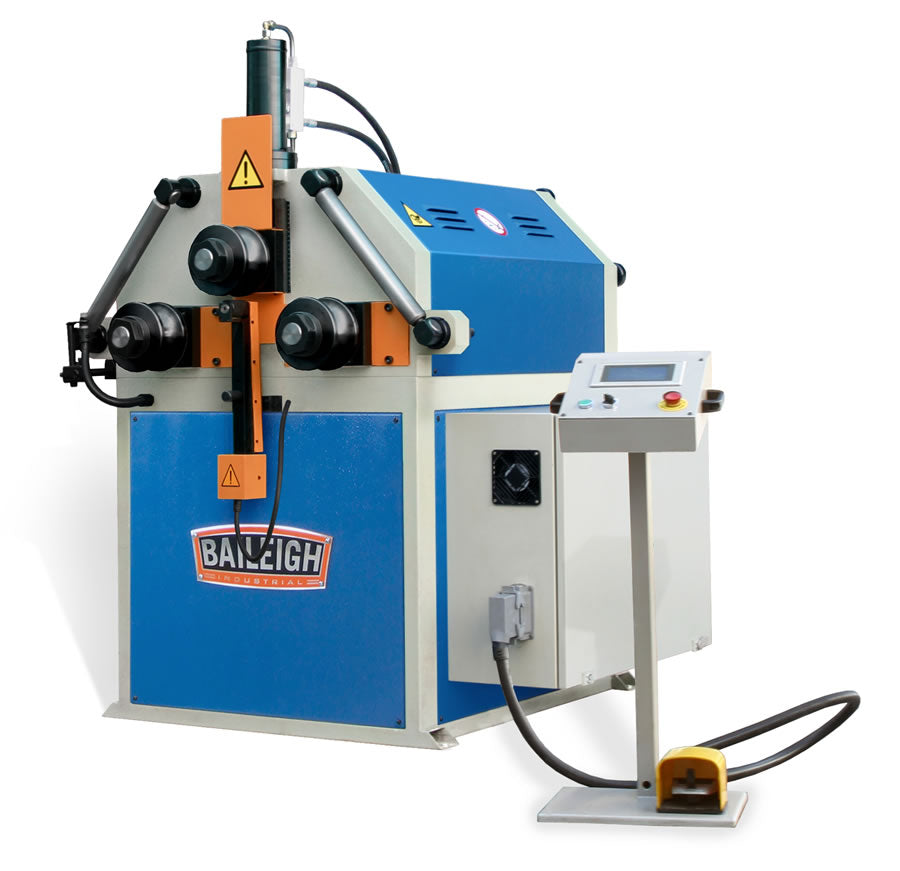

The Baileigh CNC Roll Bender R-CNC45 is a precision-engineered CNC ring roller designed for professionals who demand accurate, repeatable bends in round tube and pipe. As the most compact model in Baileigh's CNC ring roller line, the R-CNC45 features an electro-welded steel plate framework that ensures rigidity and minimizes flex, while its touchscreen control system and onboard memory make it equally capable in high-volume production and complex custom fabrication environments.
Key Features
- Runs on 220-volt 3-phase power.
- Bends up to 2.5 in. round tube and 2" schedule 40 pipe.
- Efficient double-pinch design includes 3 driven rolls for superior control and consistent results.
- You can control the roll speeds - 4 speeds on top roll and 2 speeds on bottom rolls - to suit the needs of a particular project.
- Choose between progressive (profile moving) or direct (profile stopped) top roll movement to match your specific application.
- Hydraulic lateral guide rolls, with angle-correcting tools, calibrate to accept 75 different profiles, maximizing versatility across materials and shapes.
- Arc meter radius gauge eliminates scrap material at the beginning and ends of bent pieces, reducing costly waste.
- Interchangeable bottom rolls increase versatility and help prevent material deformation or wrinkling.
- Touchscreen control mounted on podium combines intuitive design with industrial-grade durability for easy, reliable operation on the shop floor.
- Internal memory stores up to 40 programs with 24 bends per program, saving significant time on repeat production runs.
Specifications
- MPN: BA9-1006760
- Brand: Baileigh
- Power Requirement: 220-volt, 3-phase
- Maximum Round Tube Capacity: 2.5 in.
- Maximum Pipe Capacity: 2" schedule 40
- Roll Design: Double-pinch with 3 driven rolls
- Top Roll Speeds: 4
- Bottom Roll Speeds: 2
- Supported Profiles: 75
- Program Memory: Up to 40 programs, 24 bends per program
- Control Type: Touchscreen on podium mount
- Country of Origin: Portugal
Frequently Asked Questions
- What is the maximum tube and pipe capacity of the R-CNC45?
- The R-CNC45 bends up to 2.5 in. round tube and 2" schedule 40 pipe, making it well-suited for a wide range of structural and fabrication applications.
- How many programs can be stored in the machine's memory?
- The internal memory stores up to 40 programs with 24 bends per program, allowing operators to quickly recall setups for repeat production runs without re-entering parameters.
- What types of profiles can the hydraulic lateral guide rolls accommodate?
- The hydraulic lateral guide rolls, with angle-correcting tools, calibrate to accept 75 different profiles, providing broad compatibility across a variety of material shapes and sizes.
- Can the operator control how the top roll moves during the bending process?
- Yes. The R-CNC45 allows you to choose between progressive (profile moving) or direct (profile stopped) top roll movement, giving you precise control over the bending process depending on the requirements of the project.
