Product Description

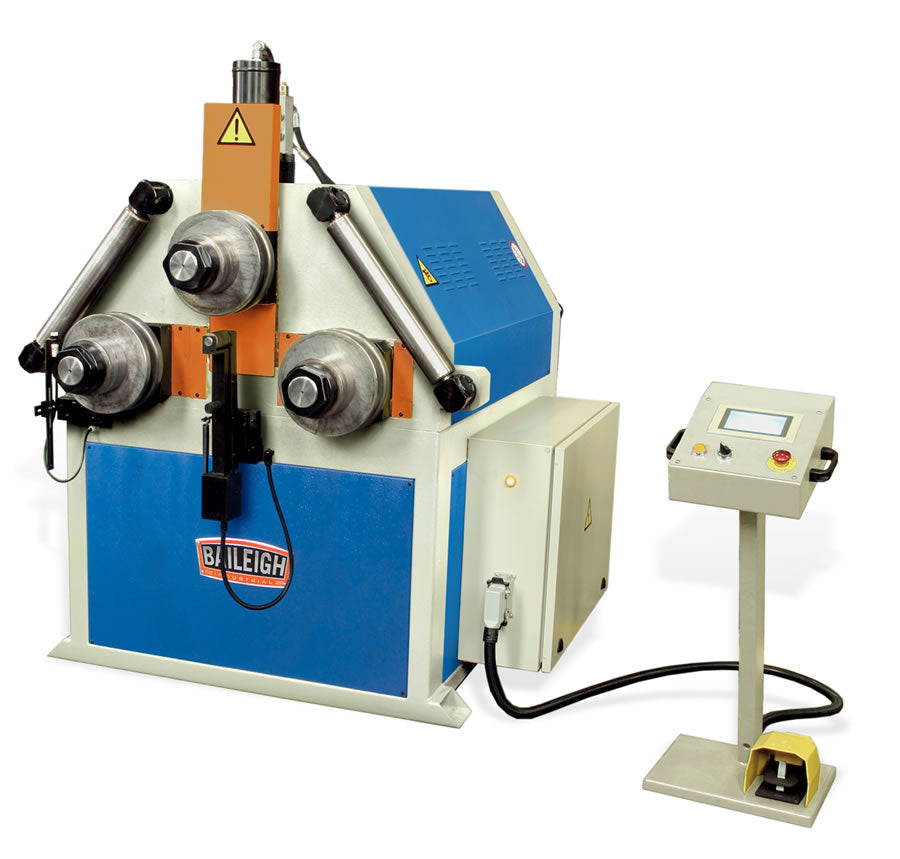

The Baileigh CNC Roll Bender R-CNC120 by Baileigh is a computer-controlled tubing roller engineered for high-production bending applications including structural work, playgrounds, and shipyard building. With three driven rolls, a double-pinch design, and a full CNC control system, this machine delivers complex, repeatable bends with minimal material waste and maximum operator confidence.
Key Features
- CNC roll bender runs on 220-volt 3-phase power
- Maximum capacity of 4.75" tube
- Variable-speed rolling - 4 speeds on top roll, 2 speeds on bottom roll rotation - facilitates smooth transition between bend parts
- Top roll can switch between progressive (moving profile) and direct (profile stopped) bending
- Hydraulically adjustable top roll moves to fit your application's profile
- 75 different profile calibrations let you bend multiple radii on a single section
- Overload-protected inverter drive lets you shift machine speed from 0 to 8 rpm, cutting down on machine wear and tear
- Touchscreen operator podium with attached foot pedal allows for easy programming
- Internal memory holds 40 programs of 24 segments per program, cutting down delays on repeat parts
- Heavy electro-welded steel construction minimizes flex and helps the R-CNC120 to bend at full capacity for years
Specifications
- MPN: BA9-1006758
- Brand: Baileigh
- Power Requirement: 220-volt, 3-phase
- Maximum Tube Capacity: 4.75"
- Speed Range: 0 to 8 rpm
- Top Roll Speeds: 4
- Bottom Roll Speeds: 2
- Profile Calibrations: 75
- Internal Memory Programs: 40 programs of 24 segments per program
- Top Roll Adjustment: Hydraulic
- Frame Construction: Heavy electro-welded steel
- Country of Origin: Portugal
Approved Applications
- Structural applications
- Playground equipment fabrication
- Shipyard building
- High-production, low-waste bending projects
Frequently Asked Questions
- What is the maximum tube capacity of the R-CNC120?
- The R-CNC120 has a maximum capacity of 4.75" tube, making it well suited for a wide range of structural and industrial tubing applications.
- How many bending programs can the machine store?
- The internal memory holds 40 programs of 24 segments per program, cutting down delays on repeat parts and supporting efficient high-production workflows.
- Can the top roll operate in more than one bending mode?
- Yes. The top roll can switch between progressive (moving profile) and direct (profile stopped) bending, giving operators the flexibility to select the method best suited to each application.
- What power supply does the R-CNC120 require?
- The CNC roll bender runs on 220-volt 3-phase power. Ensure your facility has the appropriate electrical service before installation.
