Product Features
Product Description

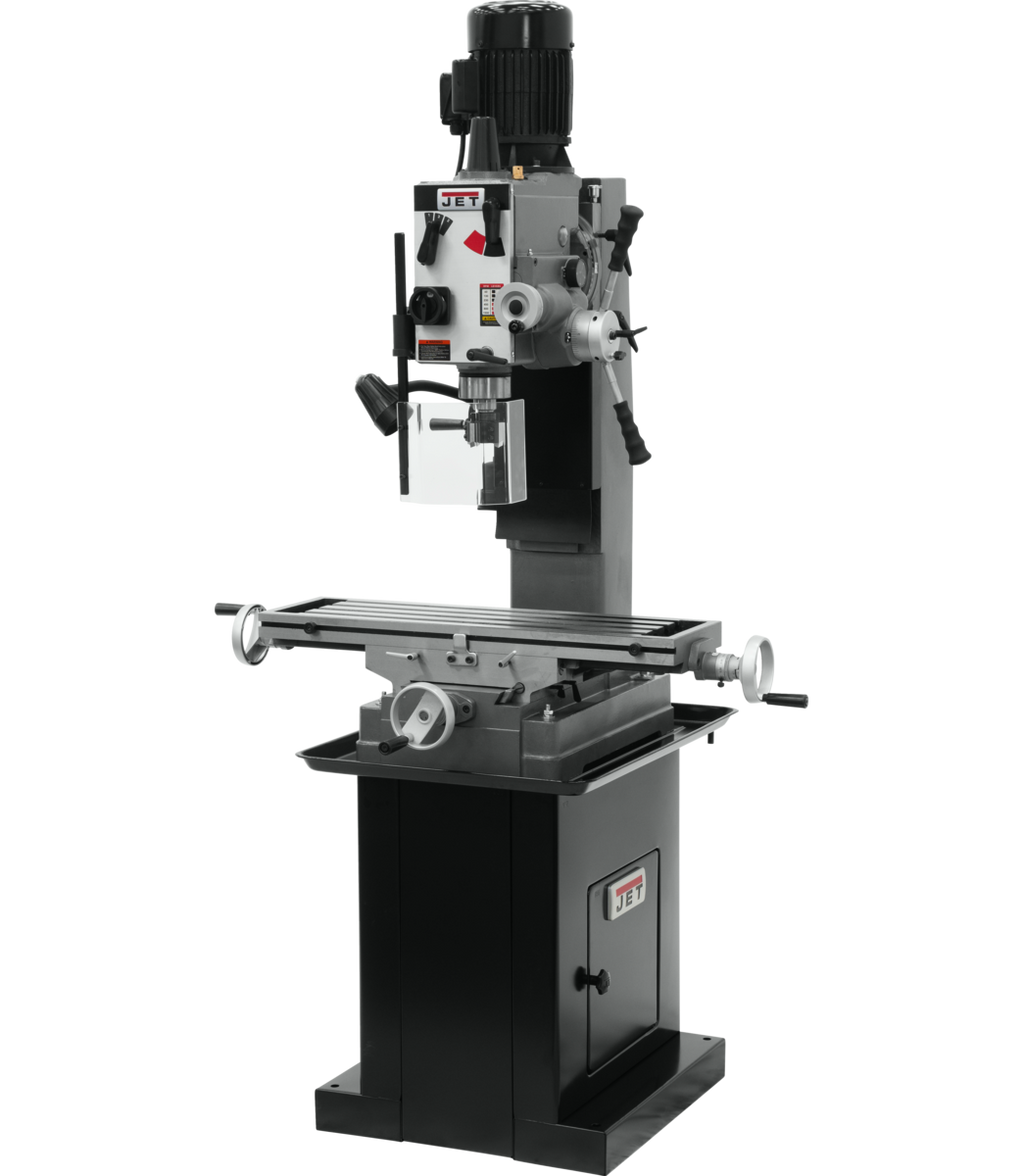

The JET JMD-45GHPF Geared Head Square Column Mill/Drill with Power Downfeed, DP500 2-Axis DRO & X-Axis Powerfeed is a heavy-duty milling and drilling machine engineered by JET to deliver the rigidity required for a variety of precision drilling applications in high-intensity environments. Featuring a 6-speed geared head, R8 spindle, power downfeed capability, a 2-axis digital readout, and X-axis powerfeed, this mill/drill is built for machinists and shops that demand consistent, accurate performance. CSA/CUS Certified.
Key Features
- Easy to read internal depth gauge for precise depth control during drilling and milling operations

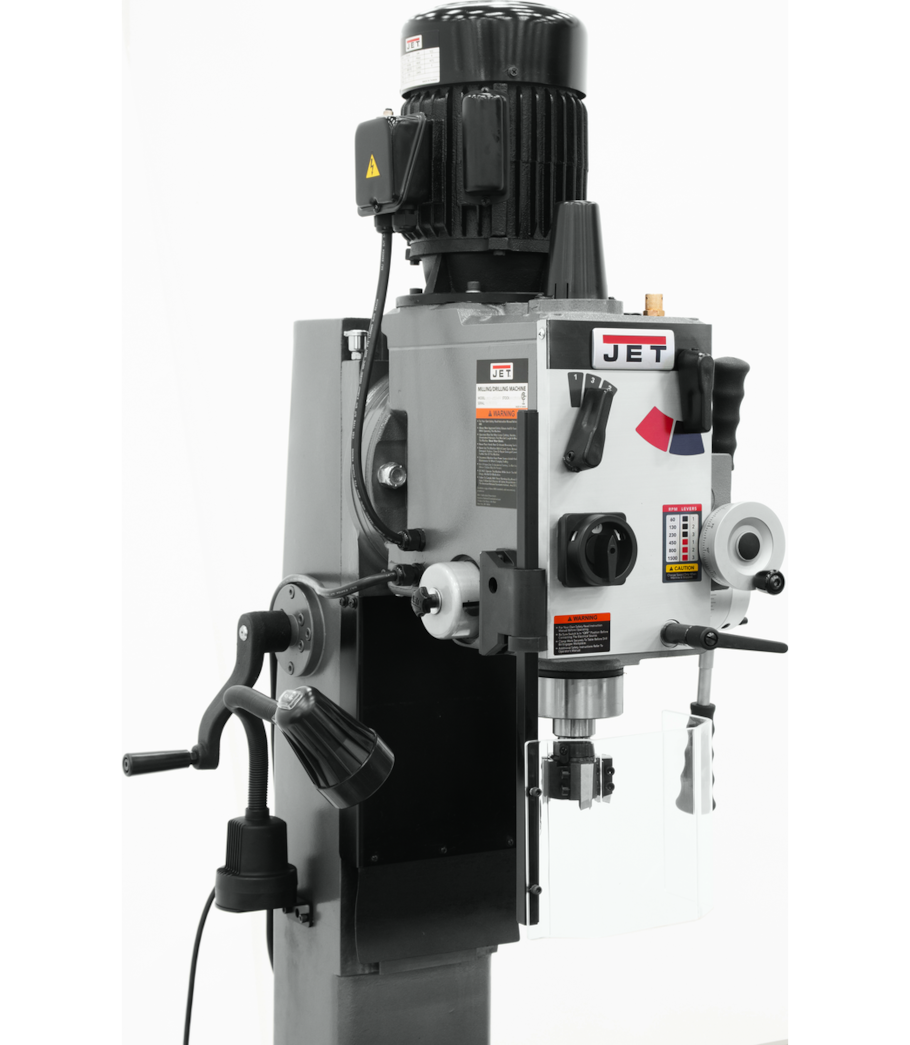

- Full power to the cutting tools delivered through a 6-speed geared head for consistent torque across a wide range of applications
- Heavy-duty design allows for a variety of precision drilling applications in demanding environments
- Milling table allows for movement, enabling versatile workpiece positioning
- R8 spindle allows use of all standard mill tooling for maximum compatibility
- Rapid spindle speed changes through quick-select gear shift levers, minimizing downtime between operations
- Square column with dovetail ways for superior rigidity and precise vertical travel
- Power downfeed capability for controlled, consistent cutting depth
- X-Axis Powerfeed for automated table travel along the longitudinal axis
- DP500 2-Axis DRO for accurate, real-time position readout during milling and drilling
- Mill Drill Stand (p/n 350045), shown in some images, is optional and sold separately
Specifications
- MPN: JT9-351161
- Stock Number: 351161
- Country of Origin: Taiwan
- Motor: 1-1/2HP, 115/230V, 1Ph
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 65-1550 RPM
- Spindle Taper: R8
- Spindle Travel: 5 in.
- Quill Diameter: 3 in.
- Face Mill Capacity: 4 in.
- Swing: 19-11/16 in.
- Max Distance Spindle to Table: 18-1/8 in.
- Table Size (L x W): 9-1/2 x 32-1/4 in.
- Table Longitudinal Travel: 20-1/2 in.
- Base Dimensions: 26-11/16 x 15-15/16 in.
- Overall Dimensions (L x W x H): 29 x 36 x 50 in.
- Powerfeed: X-Axis Powerfeed
- Weight: 820 lbs.
- Certification: CSA/CUS
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET Red Assurance 2-Year Warranty
Frequently Asked Questions
- What spindle taper does the JMD-45GHPF use, and what tooling is compatible?
- The JMD-45GHPF is equipped with an R8 spindle taper, which allows use of all standard mill tooling. R8 is one of the most widely used spindle standards, giving you access to a broad selection of collets, end mill holders, and other cutting tool accessories.
- How many spindle speeds are available, and what is the speed range?
- The machine offers 6 spindle speeds with a range of 65-1550 RPM, selectable through quick-select gear shift levers for rapid changes between operations. This broad range accommodates both slow, high-torque milling cuts and faster drilling applications.
- Is the Mill Drill Stand included with the JMD-45GHPF?
- No. The Mill Drill Stand (p/n 350045), shown in some images, is optional and not included with the machine. It must be purchased separately if desired.
- What warranty does JET provide with the JMD-45GHPF?
- JET backs the JMD-45GHPF with its Red Assurance 2-Year Warranty. If the tool needs service or repair, JET Authorized Service Centers located throughout the United States can authorize warranty repair, assist in obtaining parts, or perform routine maintenance.
