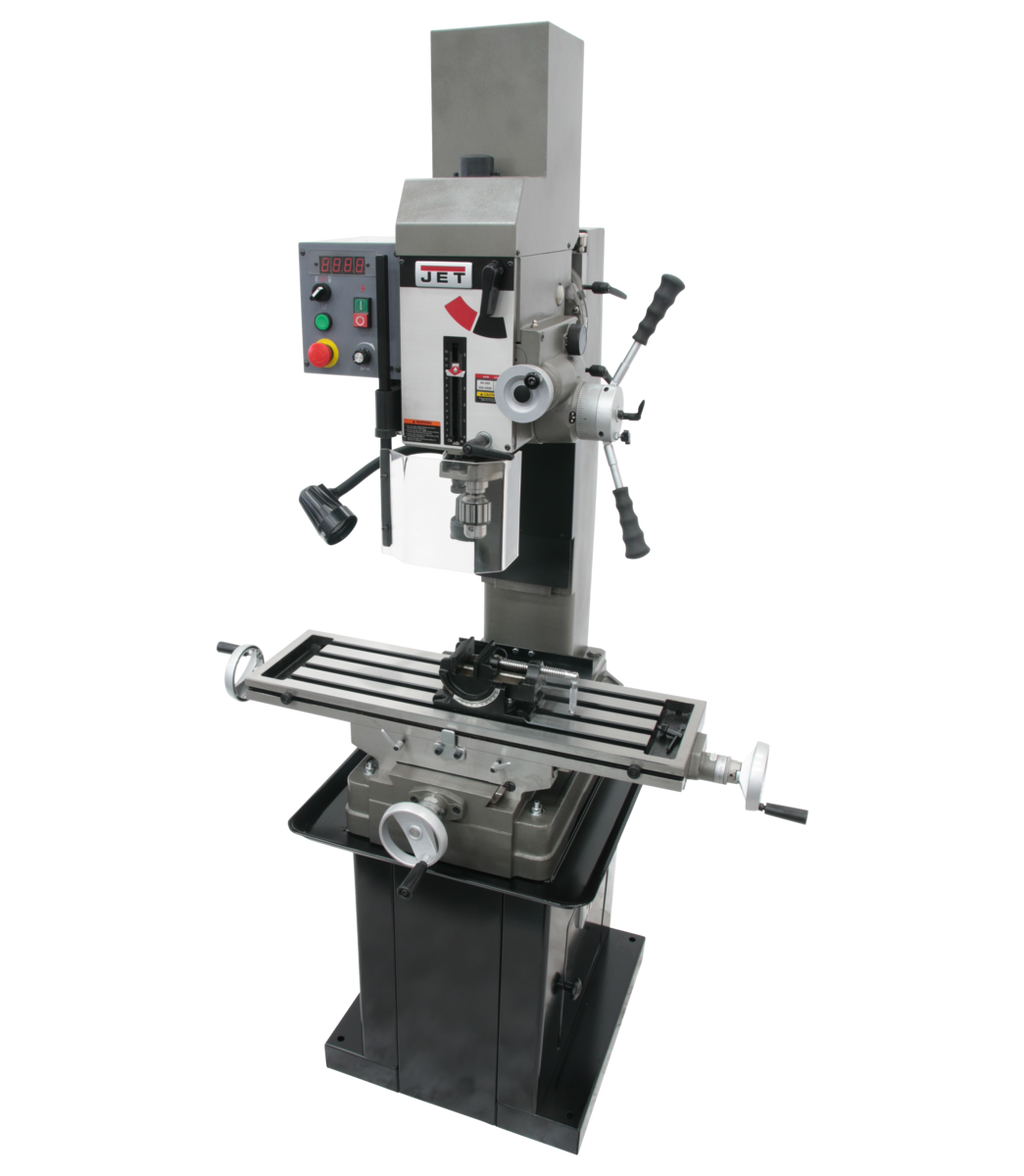

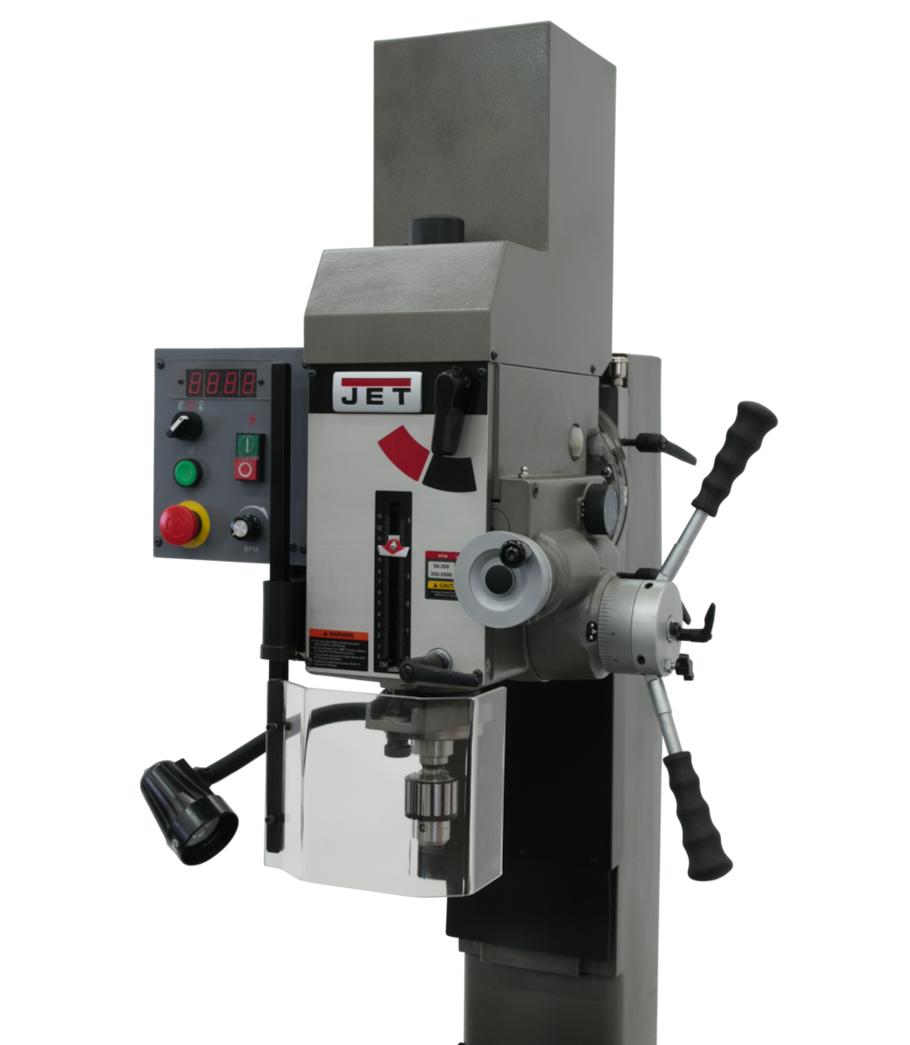

JET JMD-45VSPFT Variable Speed Geared Head Square Column Mill/Drill with Power Downfeed & Newall DP700 2-Axis DRO is a heavy-duty, CSA/CUS Certified mill/drill engineered to maximize production and deliver the rigidity needed for a variety of precision drilling applications in high-intensity environments. Featuring a variable speed geared head, power downfeed with tapping capability, and an integrated Newall DP700 2-Axis Digital Readout, this machine brings professional-grade accuracy and versatility to demanding shop floors.

Key Features

• Easy to read internal depth gauge for precise depth control during drilling and milling operations
• Full power to the cutting tools through variable speed geared head for consistent, reliable performance
• Heavy-duty design allows for a variety of precision drilling applications in high-intensity environments
• Milling table allows for movement, expanding workpiece positioning flexibility
• R8 spindle allows use of all mill tooling, maximizing compatibility with standard tooling systems
• Rapid spindle speed changes through quick-select gear shift levers for efficient workflow
• Square column with dovetail ways for enhanced rigidity and accurate vertical travel
• Mill Drill Stand (p/n 350045, shown in some images) is optional and sold separately
• JET Red Assurance 2-Year Warranty backed by a nationwide network of Authorized Service Centers

Specifications

• MPN: JT9-351156
• Country of Origin: Taiwan
• Motor: 1-1/2HP, 115/230V, 1Ph
• Range of Spindle Speeds (RPM): 50-2500
• Spindle Taper: R8
• Spindle Travel (In.): 5
• Spindle Travel Auto (In.): 4-1/4
• Quill Diameter (In.): 3
• Table Size (L x W) (In.): 9-1/2 x 32-1/4
• Table Longitudinal Travel (In.): 20-1/2
• Max Distance Spindle to Table (In.): 18-1/8
• Face Mill Capacity (In.): 4
• Swing (In.): 19-11/16
• Base Dimensions (In.): 26-11/16 x 15-15/16
• Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
• Weight (Lbs.): 833
• Stock Number: 351156
• Certification: CSA/CUS
• Prop 65: Cancer and Reproductive Harm
• Warranty: JET Red Assurance 2-Year Warranty

Frequently Asked Questions

What type of spindle taper does the JMD-45VSPFT use, and what does that mean for tooling compatibility?

The JMD-45VSPFT is equipped with an R8 spindle taper, which allows use of all standard mill tooling. R8 is one of the most widely used tapers in milling machines, so finding compatible end mills, collets, and drill chucks is straightforward and cost-effective.

What is the spindle speed range, and how are speed changes made?

The machine offers a spindle speed range of 50-2500 RPM. Speed changes are made rapidly and conveniently through quick-select gear shift levers, allowing operators to adjust speeds efficiently without lengthy downtime between operations.

Is the Mill Drill Stand included with the JMD-45VSPFT?

No. The Mill Drill Stand (p/n 350045), which is shown in some product images, is an optional accessory and is not included with the machine. It must be purchased separately if desired.

What is the maximum face mill capacity and table travel on this machine?

The JMD-45VSPFT has a face mill capacity of 4 inches and a table longitudinal travel of 20-1/2 inches, giving operators significant range of motion across the 9-1/2 x 32-1/4 inch milling table for versatile workpiece positioning.
