Product Features
Product Description

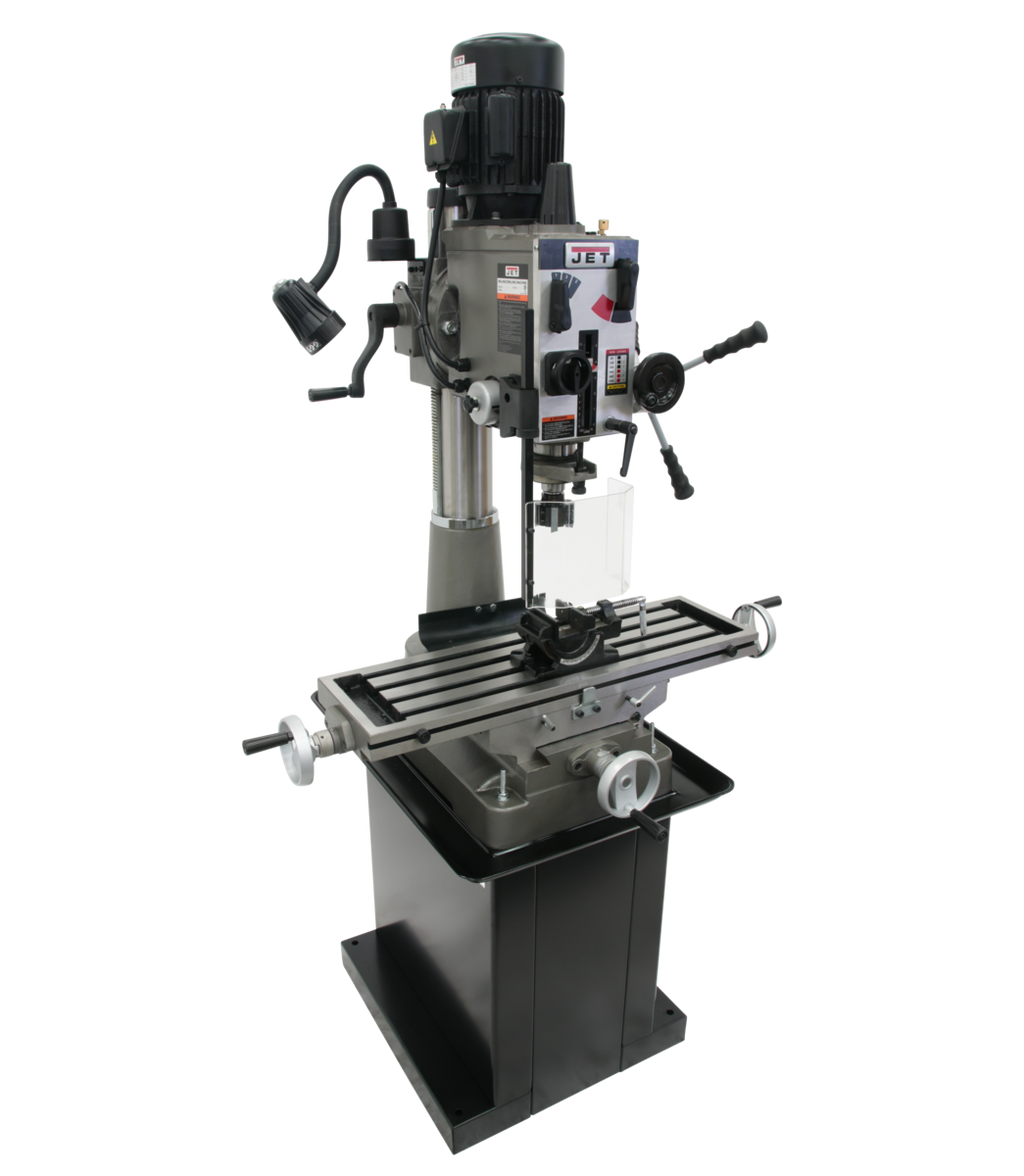

JET JMD-40GH Geared Head Mill/Drill with Newall DP500 2-Axis DRO is a heavy-duty, precision-engineered milling and drilling machine from JET, designed to handle a wide variety of precision drilling and milling applications. Equipped with a 6-speed geared head, an R8 spindle, and a Newall DP500 2-Axis Digital Readout, this mill/drill delivers full power to cutting tools with rapid, accurate speed changes - making it an ideal choice for machinists and metalworkers who demand consistent, repeatable results.
Key Features
- Calibrated fine down feed built in for precise depth control
- CSA/CUS Certified for safety and compliance
- Easy to read internal depth gauge for accurate drilling depths
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Milling table allows for movement across multiple axes
- R8 spindle allows use of all mill tooling for maximum versatility

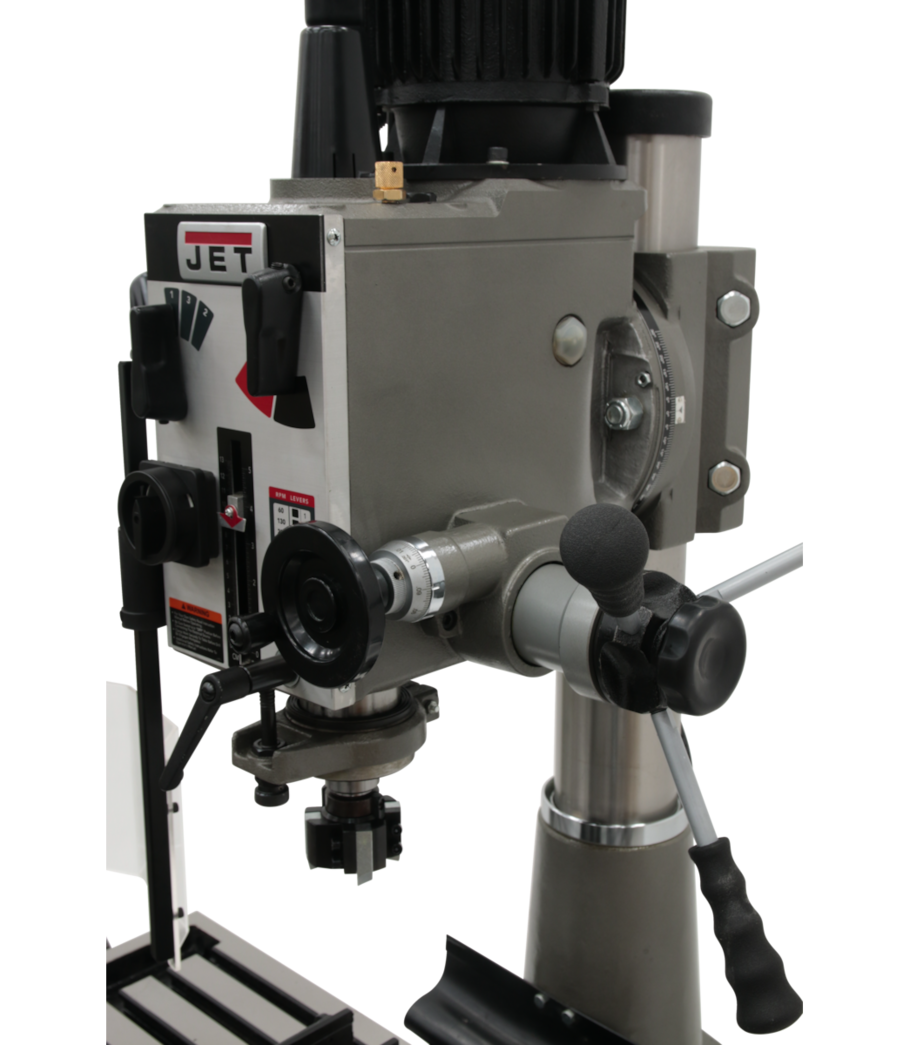

- Rapid spindle speed changes through quick-select gear shift levers
- Newall DP500 2-Axis DRO included for enhanced positioning accuracy
- Mill Drill Stand (p/n 350045, shown in some images) is optional and sold separately
Specifications
- Stock Number: 351144
- Country of Origin: Taiwan
- Motor: 1-1/2HP, 115/230V, 1Ph
- Number of Spindle Speeds: 6
- Range of Spindle Speeds (RPM): 65, 130, 220, 480, 925, 1550 RPM
- Spindle Taper: R-8
- Spindle Travel (In.): 5
- Quill Diameter (In.): 3
- Table Longitudinal Travel (In.): 20-1/2
- Swing (In.): 20-1/2
- Face Mill Capacity (In.): 4
- Max Distance Spindle to Table (In.): 15-3/4
- Column Diameter (In.): 4-1/2
- Base Dimensions (In.): 24-1/4 x 15-15/16
- Overall Dimensions (L x W x H) (In.): 28 x 39-1/4 x 42-1/2
- Weight (Lbs.): 694
- Prop 65: Cancer and Reproductive Harm
- Warranty: JET Red Assurance 2-Year Warranty
Frequently Asked Questions
- What spindle taper does the JMD-40GH use, and what tooling is compatible?
- The JMD-40GH features an R-8 spindle taper, which allows use of all standard mill tooling designed for the R-8 interface - one of the most widely used spindle standards in milling machines.
- How many spindle speeds are available, and what is the speed range?
- The JMD-40GH offers 6 spindle speeds through its geared head: 65, 130, 220, 480, 925, and 1550 RPM. Speed changes are made quickly and easily using the quick-select gear shift levers.
- Is the Mill Drill Stand included with the JMD-40GH?
- No. The Mill Drill Stand (p/n 350045), which is shown in some product images, is an optional accessory and is not included with the JMD-40GH mill/drill.
- What warranty does the JMD-40GH carry?
- The JMD-40GH is backed by JET's Red Assurance 2-Year Warranty. JET's network of Authorized Service Centers throughout the United States can authorize warranty repair, assist with parts, and perform routine maintenance and major repair on JET tools.
