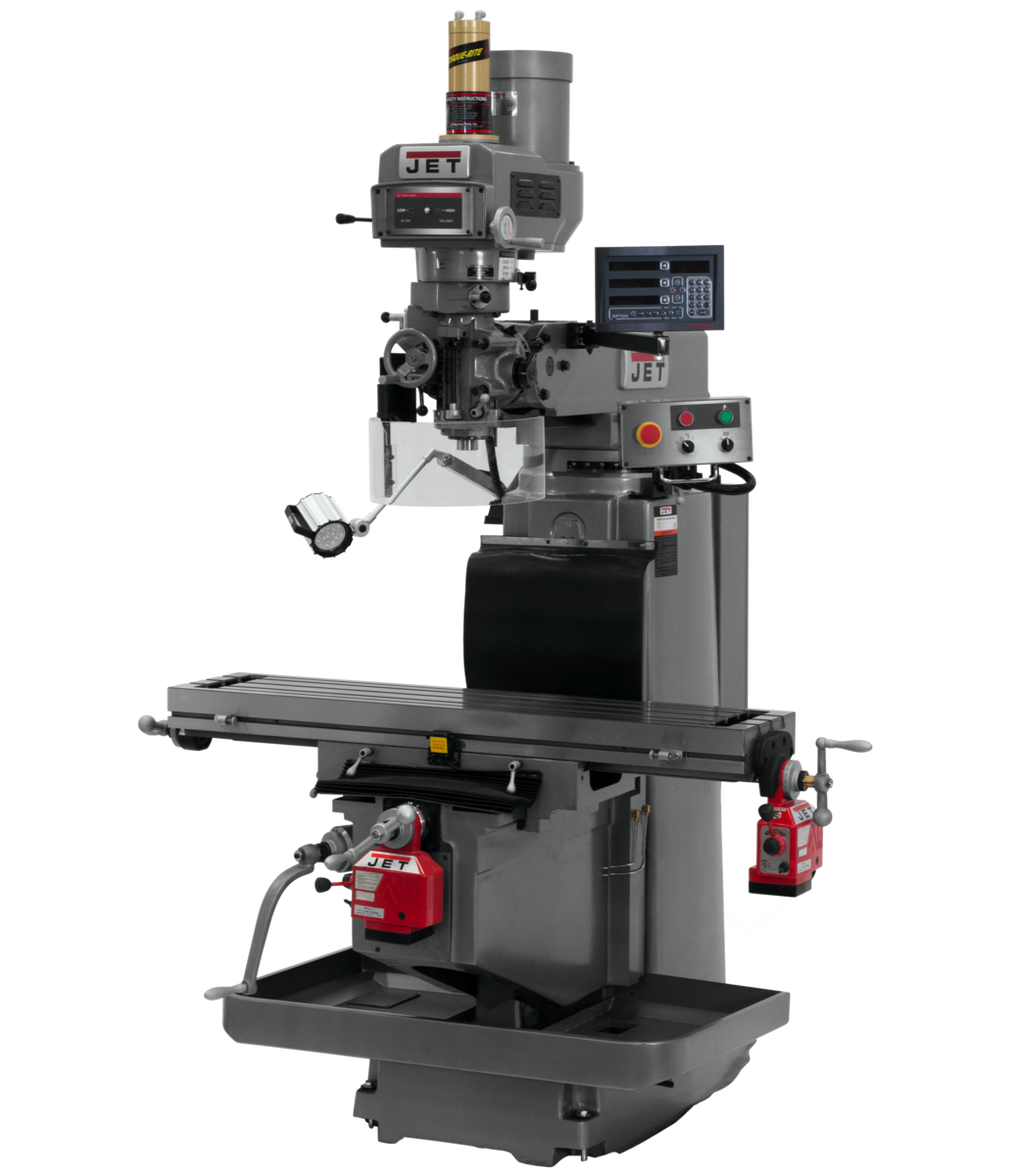

JET JTM-1254RVS Variable Speed Vertical Mill w/Newall DP700 3X (K) DRO X & Y Powerfeeds & Air Power Drawbar is a professional-grade 12" x 54" vertical milling machine engineered by JET for demanding machining environments. Combining variable spindle speed control, a precision-bored milling head, a Newall DP700 3-axis DRO, X & Y powerfeeds, and a pneumatic power drawbar, this heavy-duty mill delivers the accuracy, versatility, and operator convenience required for producing high-quality components in production and job-shop settings.

Key Features

• Adjustable gibs throughout for precise fit and long-term accuracy
• Dual locks on all moveable surfaces for rigid, repeatable setups
• Heavy-duty spindle brake for rapid stopping of the spindle
• Precision bored and honed milling head ensures tight tolerances and consistent performance
• Precision hardened and ground ways and table for smooth, accurate movement and extended service life
• Three precision ground T-slots for secure and versatile workholding
• Three-stage power downfeed with automatic stop for controlled, hands-free depth operations
• Variable spindle speed range of 80 - 3,800 RPM accommodates a wide variety of materials and cutting tools
• Pneumatic power drawbar for fast, effortless tool changes
• Newall DP700 3-axis (Knee) DRO provides real-time, high-precision positional readout
• X and Y-axis powerfeeds reduce operator fatigue during extended milling operations
• Two 115V outlets on the electrical box dedicated for Powerfeeds only
• R-8 spindle taper with collet capacity from 1/8" to 1"
• 5 HP, 230/460V, 3-Phase motor delivers robust cutting power
• Backed by the industry-leading JET Two Year Warranty

Specifications

• MPN: JT9-698135
• Stock Number: 698135
• Country of Origin: Taiwan
• Motor: 5HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 80 - 3,800
• Spindle Taper: R-8
• Collet Capacity: 1/8 - 1
• Spindle Travel (In.): 5
• Quill Diameter (In.): 4-1/8
• Quill Down Feed Rates (IPR): .0015 / .003 / .008
• Number of Axis: 3 (Knee)
• Max Distance Spindle to Table (In.): 23
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Column Width (In.): 14-1/4
• Saddle Width (In.): 25-5/8
• Power Draw Bar: Pneumatic
• Style (Type): Variable Speed
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What spindle taper does the JET JTM-1254RVS use, and what is the collet capacity range?

The JTM-1254RVS uses an R-8 spindle taper with a collet capacity ranging from 1/8" to 1", making it compatible with a wide variety of standard R-8 tooling used in professional milling applications.

What is the variable spindle speed range on this mill?

The spindle speed is variable from 80 to 3,800 RPM, allowing operators to dial in the optimal cutting speed for different materials and tool diameters without stopping to change belt positions.

What power downfeed rates are available, and does the mill have an automatic stop feature?

The JTM-1254RVS features a three-stage power downfeed with available feed rates of .0015, .003, and .008 inches per revolution (IPR). The power downfeed also includes an automatic stop for precise, repeatable depth control.

Are the two 115V outlets on the electrical box general-purpose outlets?

No. The two 115V outlets located on the electrical box are dedicated for Powerfeeds only and are not intended for general-purpose use with other accessories or equipment.
