Product Features
Product Description

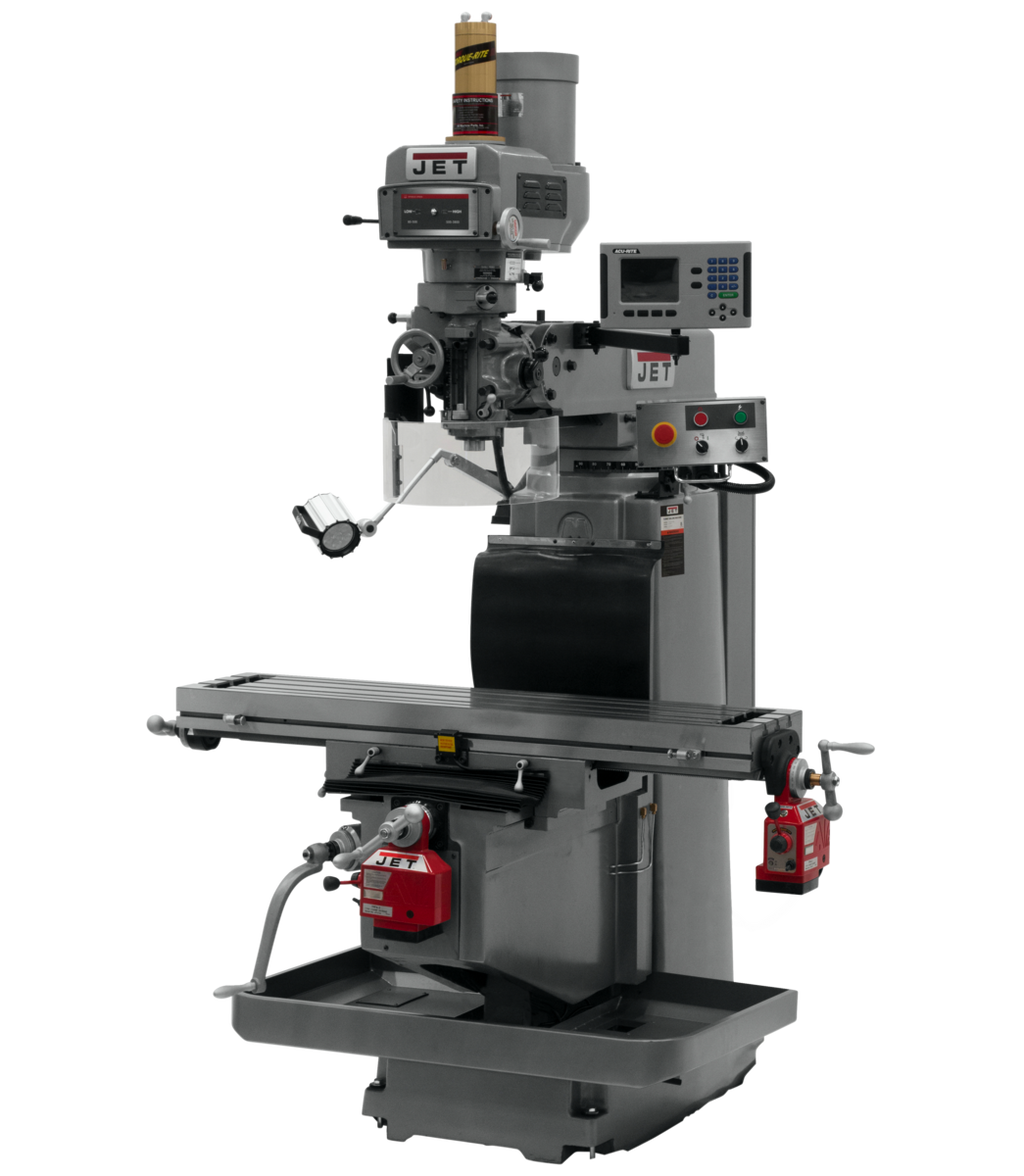

JET JTM-1254RVS Variable Speed Vertical Mill w/ACU-RITE 203 3X (K) DRO X & Y Powerfeeds & Air Power Drawbar is a professional-grade 12" x 54" vertical milling machine engineered by JET for machinists and manufacturing operations demanding precision, durability, and versatile performance. Equipped with an ACU-RITE 203 3-axis digital readout, X & Y powerfeeds, and a pneumatic power drawbar, this variable speed mill delivers exceptional accuracy and efficiency across a wide range of milling applications. Backed by the industry-leading JET Two Year Warranty, the JTM-1254RVS is built to handle the demands of professional shops requiring consistent, high-quality results.
Key Features
- Adjustable gibs throughout for precise fit and optimal performance over the life of the machine
- Dual locks on all moveable surfaces for enhanced rigidity and accuracy during cuts
- Heavy-duty spindle brake for rapid stopping of the spindle, improving operator efficiency and safety
- Precision bored and honed milling head ensures tight tolerances and superior surface finishes
- Precision hardened and ground ways and table for long-lasting accuracy and smooth travel
- Three precision ground T-slots for secure and versatile workholding options
- Three-stage power downfeed with automatic stop for consistent, repeatable depth control
- Two 115V outlets on the electrical box dedicated for Powerfeeds only
- Variable spindle speed range of 80 - 3,800 RPM for broad material and tooling compatibility
- Ongoing automatic lubrication system for reduced maintenance and extended machine life
- Quick nut spindle feed for fast and convenient quill depth adjustments
- Exclusive JET casting design enables easier machine leveling without raising the unit off the floor
- Available in R-8 spindle taper to accommodate a wide range of standard tooling
- 5 HP, 230/460V, 3-phase motor delivers robust power for demanding milling tasks
Specifications
- MPN: JT9-698117
- Stock Number: 698117
- Motor: 5HP, 230/460V, 3Ph
- Range of Spindle Speeds (RPM): 80 - 3,800
- Spindle Taper: R-8
- Spindle Travel (In.): 5
- Quill Diameter (In.): 4-1/8
- Quill Down Feed Rates (IPR): .0015 / .003 / .008
- Collet Capacity: 1/8 - 1
- Number of Axis: 3 (Knee)
- Max Distance Spindle to Table (In.): 23
- Distance Spindle to Column (Max.) (In.): 27-3/4
- Column Width (In.): 14-1/4
- Saddle Width (In.): 25-5/8
- Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
- Power Draw Bar: Pneumatic
- Style (Type): Variable Speed
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JET JTM-1254RVS use?
- The JTM-1254RVS features an R-8 spindle taper, which accommodates a collet capacity range of 1/8 to 1 inch and is compatible with a wide selection of standard milling tooling and accessories.
- What is the spindle speed range on this variable speed mill?
- The JTM-1254RVS offers a variable spindle speed range of 80 to 3,800 RPM, providing the flexibility needed to machine a broad variety of materials and work with different cutter sizes and types.
- What are the available quill down feed rates?
- The three-stage power downfeed system provides quill down feed rates of .0015, .003, and .008 inches per revolution (IPR), with an automatic stop feature for consistent and repeatable depth control.
- What electrical power does the JTM-1254RVS require, and how is the power drawbar operated?
- The JTM-1254RVS is powered by a 5HP motor requiring 230/460V, 3-phase electrical service. The power drawbar is pneumatically operated, enabling fast and convenient tool changes. Additionally, two dedicated 115V outlets are located on the electrical box for use with the X & Y Powerfeeds only.
