Product Features
Product Description

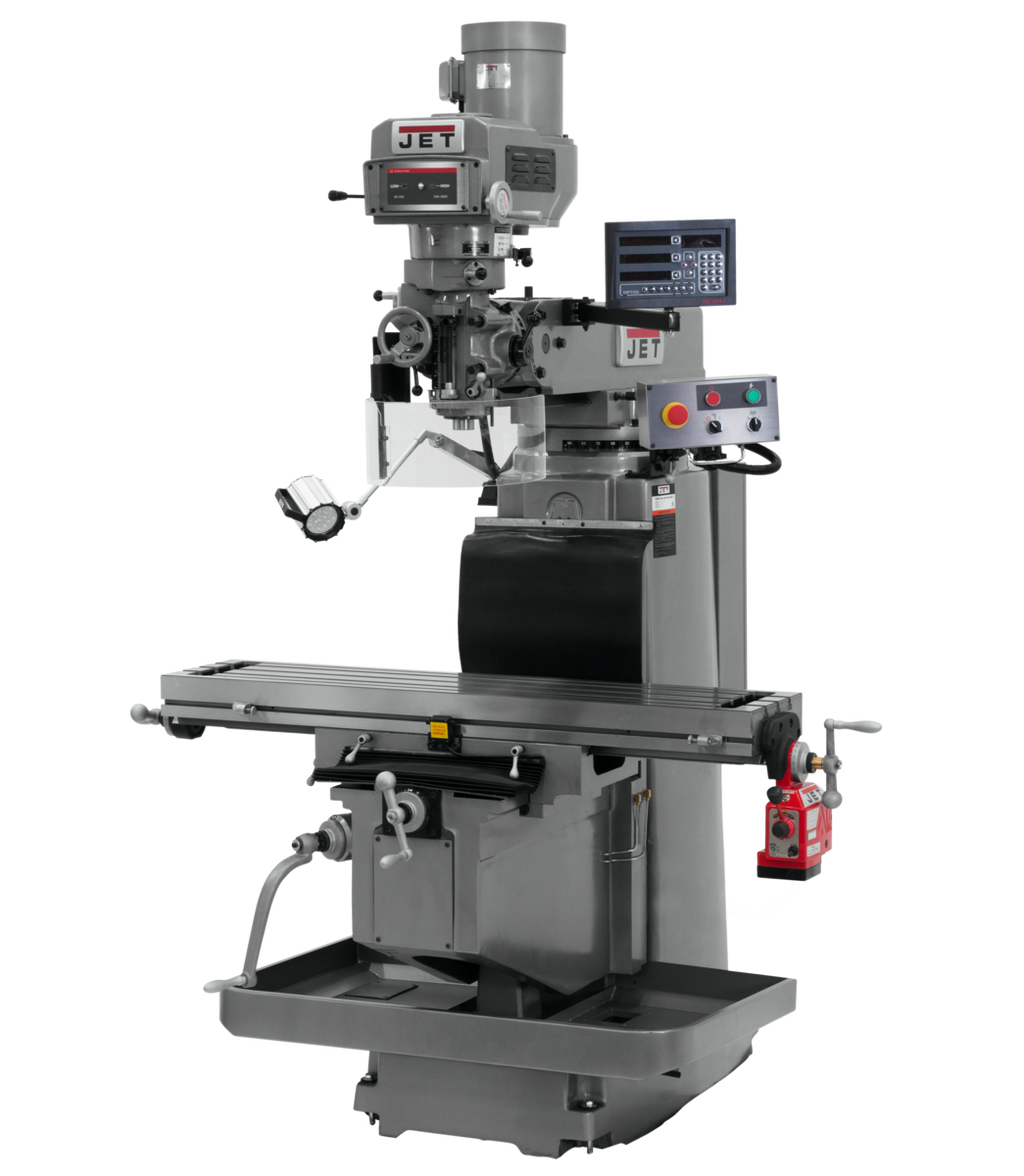

The JET JTM-1254RVS Variable Speed Vertical Mill with Newall DP700 3X (K) DRO and X Powerfeed is a precision-engineered 12" x 54" vertical milling machine from JET designed for machinists and shops demanding high-quality component output, repeatable accuracy, and long-term durability. Combining variable spindle speed control, a factory-integrated Newall DP700 3-axis digital readout, and an X-axis powerfeed, this heavy-duty mill delivers the performance and convenience professionals rely on for complex milling operations.
Key Features
- Adjustable gibs throughout for precise fit and reduced play across all axes
- Dual locks on all moveable surfaces for secure workholding and controlled machining passes
- Heavy-duty spindle brake and dedicated Spindle Brake for rapid stopping of the spindle to enhance operator safety and efficiency
- Precision bored and honed milling head for consistent spindle alignment and superior surface finishes
- Precision hardened and ground ways and table for long-term accuracy and wear resistance
- Three precision ground T-slots for flexible workpiece and fixture mounting
- Three-stage power downfeed with automatic stop for controlled, repeatable depth cuts
- Two 115V outlets on the electrical box dedicated for Powerfeeds only, providing convenient integrated power management
- Variable spindle speed range of 80 - 3,800 RPM for versatile material and tooling compatibility
- Newall DP700 3X (K) DRO provides precise three-axis digital position readout for confident, accurate machining
- X-axis powerfeed reduces operator fatigue during long table traverses and improves surface finish consistency
- Quick nut spindle feed and ongoing automatic lubrication system for reduced maintenance demands
- Exclusive JET casting design allows easier machine leveling without raising the unit off the floor
- Available in R-8 spindle taper for broad tooling compatibility
- Backed by the industry-leading JET Two Year Warranty
Specifications
- MPN: JT9-698132
- Stock Number: 698132
- Motor: 5HP, 230/460V, 3Ph
- Range of Spindle Speeds: 80 - 3,800 RPM
- Spindle Taper: R-8
- Spindle Travel: 5 in.
- Quill Diameter: 4-1/8 in.
- Quill Down Feed Rates (IPR): .0015 / .003 / .008
- Collet Capacity: 1/8 - 1 in.
- Number of Axis: 3 (Knee)
- Powerfeed: X-Axis
- Column Width: 14-1/4 in.
- Distance Spindle to Column (Max.): 27-3/4 in.
- Max Distance Spindle to Table: 23 in.
- Saddle Width: 25-5/8 in.
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 in.
- Style: Variable Speed
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What spindle taper does the JET JTM-1254RVS use?
- The JTM-1254RVS is equipped with an R-8 spindle taper, which accepts a collet capacity range of 1/8 to 1 inch, making it compatible with a wide variety of standard milling tooling and collet sets.
- What is the spindle speed range on this variable speed mill?
- The JTM-1254RVS offers a variable spindle speed range of 80 to 3,800 RPM, providing the flexibility to machine a broad range of materials and accommodate various cutting tool requirements.
- What power supply is required to operate this milling machine?
- This machine is powered by a 5HP motor requiring a 230/460V, 3-phase electrical supply. The electrical box also includes two 115V outlets designated exclusively for Powerfeeds.
- What are the available quill down feed rates on the JTM-1254RVS?
- The three-stage power downfeed system offers quill down feed rates of .0015, .003, and .008 inches per revolution (IPR), with an automatic stop feature for precise and repeatable depth control during drilling and boring operations.
