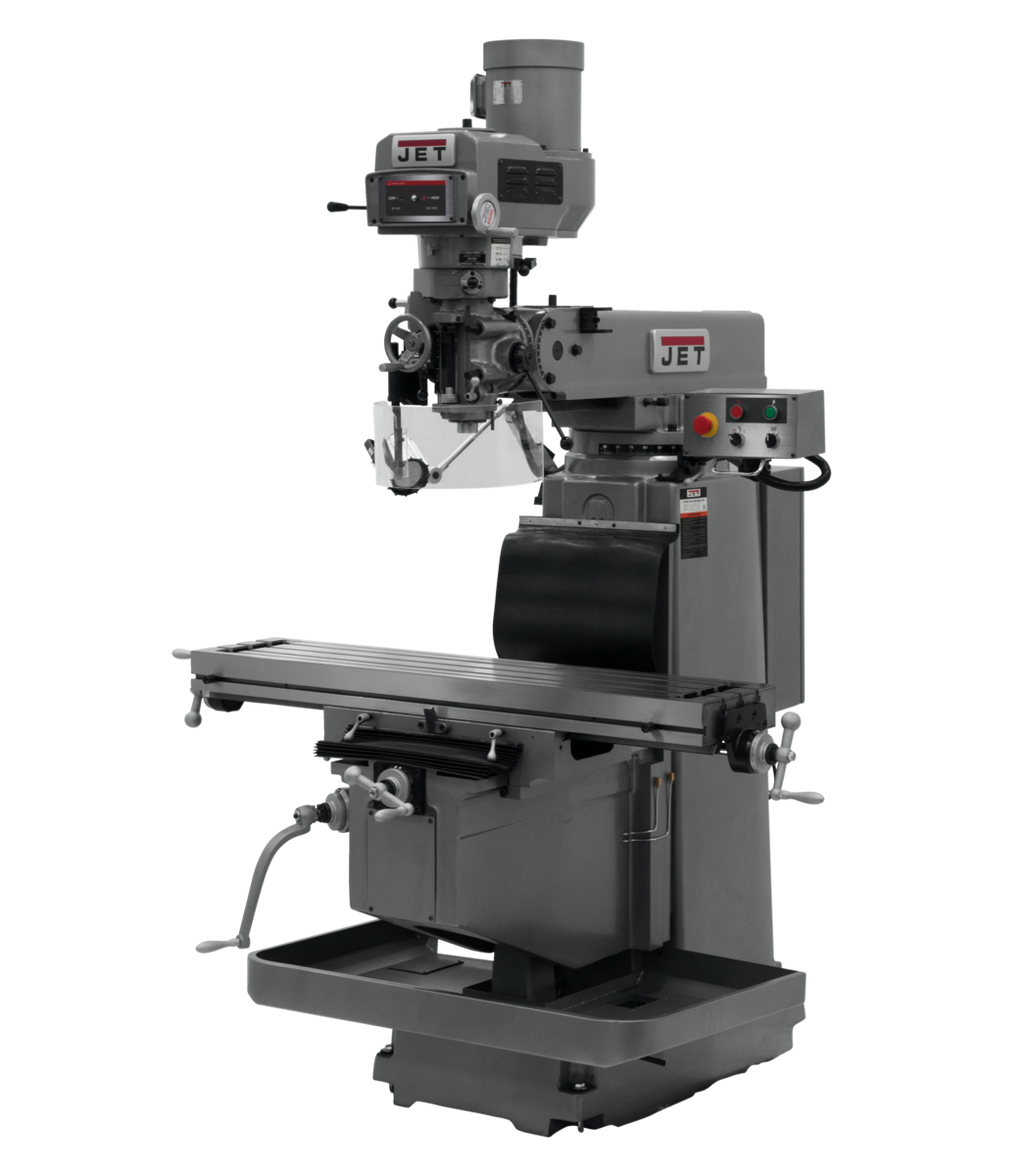

JET JTM-1254RVS Variable Speed Vertical Mill with X & Y Powerfeeds & Air Power Drawbar is a professional-grade 12" x 54" vertical milling machine engineered by JET for demanding machining environments. Combining a 5HP variable speed spindle with X and Y axis powerfeeds and a pneumatic power drawbar, this mill delivers the precision, rigidity, and operator convenience required to consistently produce high-quality components. Backed by the industry-leading JET Two Year Warranty, the JTM-1254RVS is built for shops that demand reliable, repeatable performance from their equipment.

Key Features

• Adjustable gibs throughout for precise fit and reduced play across all axes
• Dual locks on all moveable surfaces for enhanced rigidity during cutting operations
• Heavy-duty spindle brake for rapid stopping of the spindle, improving cycle efficiency and operator safety
• Precision bored and honed milling head for superior spindle accuracy and surface finish quality
• Precision hardened and ground ways and table for long-term accuracy and extended machine life
• Three precision ground T-slots for secure and versatile workholding setups
• Three-stage power downfeed with automatic stop for controlled and repeatable depth cuts
• Two 115V outlets on the electrical box dedicated for Powerfeeds only, providing convenient and safe power access
• Ongoing automatic lubrication system for reduced maintenance demands and consistent performance
• Quick nut spindle feed for faster tool engagement and improved workflow
• Exclusive JET casting design allows easier machine leveling without raising the unit off the floor
• Available in R-8 spindle taper for broad tooling compatibility
• Variable speed range of 80 - 3,800 RPM to accommodate a wide variety of materials and milling operations
• Pneumatic power drawbar for fast, effortless tool changes
• X and Y axis powerfeeds for reduced operator fatigue during long production runs

Specifications

• MPN: JT9-698087
• Stock Number: 698087
• Style (Type): Variable Speed R8
• Motor: 5HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 80 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 4-1/8
• Quill Down Feed Rates (IPR): .0015 * .003 * .008
• Collet Capacity: 1/8 - 1
• Column Width (In.): 14-1/4
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Max Distance Spindle to Table (In.): 23
• Saddle Width (In.): 25-5/8
• Power Draw Bar: Pneumatic
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What spindle taper does the JTM-1254RVS use, and what is the collet capacity range?

The JTM-1254RVS uses an R-8 spindle taper with a collet capacity range of 1/8" to 1", making it compatible with a wide selection of commonly available tooling used in professional machine shops.

What are the available quill down feed rates on this mill?

The JTM-1254RVS features a three-stage power downfeed with automatic stop, offering quill down feed rates of .0015, .003, and .008 inches per revolution (IPR), allowing operators to select the appropriate feed rate for their specific material and operation.

What electrical power is required to operate this milling machine?

The JTM-1254RVS is powered by a 5HP motor requiring 230/460V, 3-phase electrical service. Additionally, two dedicated 115V outlets are located on the electrical box specifically for powering the X and Y axis Powerfeeds.

What is the full variable speed spindle range, and how does the pneumatic power drawbar benefit the operator?

The spindle operates across a variable speed range of 80 to 3,800 RPM, providing flexibility for milling a wide variety of materials and operations. The pneumatic (air) power drawbar allows for fast, effortless tool changes compared to manual drawbar methods, significantly reducing downtime between operations.
