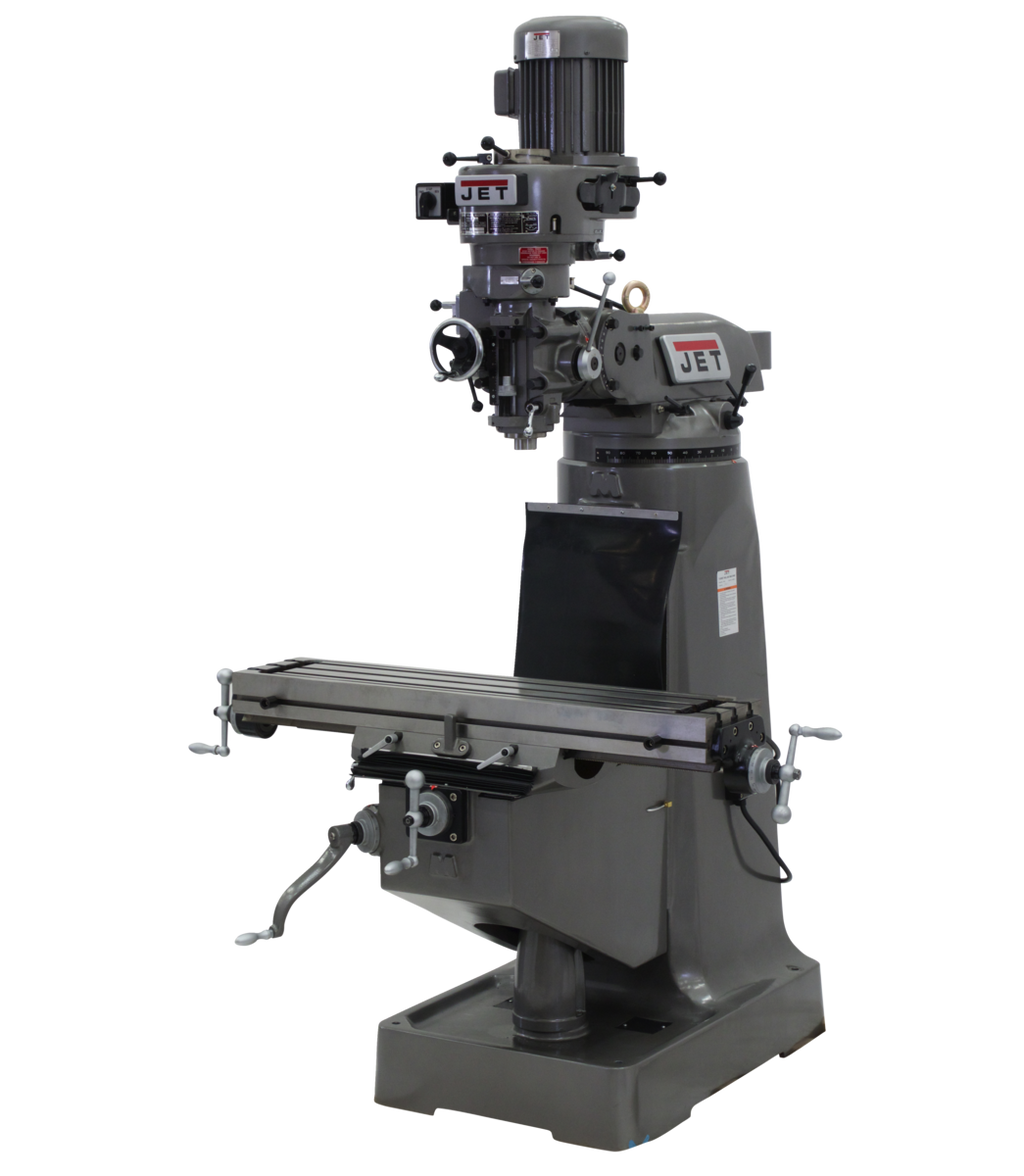

JET Mill with 3-Axis Newall DP500 DRO (Quill) with X-Axis Powerfeeds JTM-1 by JET is a precision vertical milling machine engineered for demanding machining environments where accuracy, durability, and operator control are essential. Featuring a 3-axis Newall DP500 digital readout on the quill and X-axis powerfeed capability, this step pulley R-8 mill delivers consistent, repeatable results across a wide range of milling operations - from prototype work to production runs.

Key Features

• Heavy duty splined motor drive for reliable, high-torque power transmission
• Internal coolant tank built into the base for use with a coolant system (coolant pump not included)
• Large diameter chromed quill for smooth travel and long-lasting wear resistance
• One shot lubrication system for simplified, consistent way lubrication
• Precision bored and honed milling head for tight tolerances and superior surface finishes
• Precision hardened and ground ways for accurate, stable table movement
• Satin chrome finished dials for clear, easy-to-read measurements
• Tolerance test sheet included to verify machine accuracy out of the box
• Three-stage power down feed with automatic stop for controlled quill engagement
• High precision Class 7 spindle bearings for minimal runout at all speeds
• Certified Meehanite castings for rugged structural stability and vibration dampening
• Internally cooled spindle head to prevent seizing during extended operations
• 16 spindle speeds ranging from 80 to 5,440 RPM for versatility across materials
• X-axis powerfeed for consistent, hands-free longitudinal table movement
• 3-axis Newall DP500 DRO (quill) for precise digital position readout
• Backed by the JET Two Year Warranty

Specifications

• MPN: JT9-692191
• Style (Type): Step Pulley R8
• Number of Axis: 3 (Quill)
• Powerfeed: X-Axis
• Motor: 2 HP, 230V, 3Ph
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 80 - 5,440
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Longitudinal Travel (In.): 23-7/8
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column - Max. (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• JTM-1 vertical milling machine
• 3-axis Newall DP500 DRO (quill)
• X-axis powerfeed
• Tolerance test sheet

Frequently Asked Questions

What type of spindle taper does the JTM-1 use?

The JTM-1 uses an R-8 spindle taper, one of the most common tapers for vertical knee mills, offering wide tooling compatibility and straightforward tool changes.

How many spindle speeds are available, and what is the speed range?

The JTM-1 features 16 spindle speeds with a range of 80 to 5,440 RPM, providing versatility to machine a broad variety of materials from steel to aluminum and plastics.

Is a coolant pump included with the machine?

The machine includes an internal coolant tank built into the base designed for use with a coolant system; however, the coolant pump is not included and must be sourced separately.

What are the quill down feed rates available on this mill?

The JTM-1 offers three-stage power down feed with quill down feed rates of .0015, .003, and .006 inches per revolution (IPR), along with an automatic stop for precise depth control.
