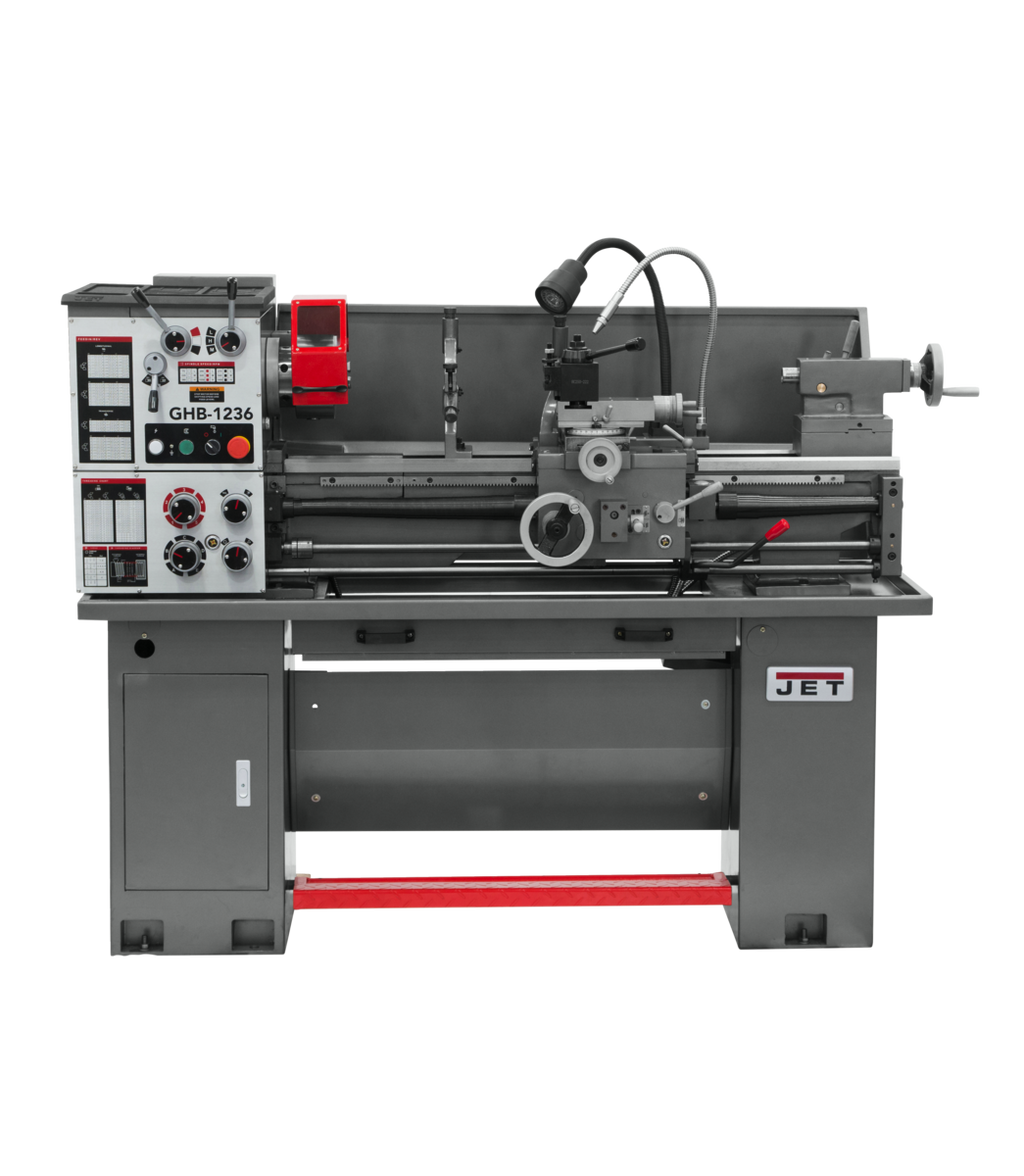

JET GHB-1236 Geared Head Bench Lathe & Acu-Rite 203 DRO is a precision metalworking lathe from JET engineered to cut and taper with exacting accuracy. Mounted on a heavy-duty cast iron stand with a built-in foot pedal, integrated coolant system, and Acu-Rite 203 digital readout, this machine arrives ready to use straight out of the crate - making it an ideal choice for machinists, gunsmiths, and production shops demanding versatility, durability, and smooth operation in a bench-format lathe.
Key Features

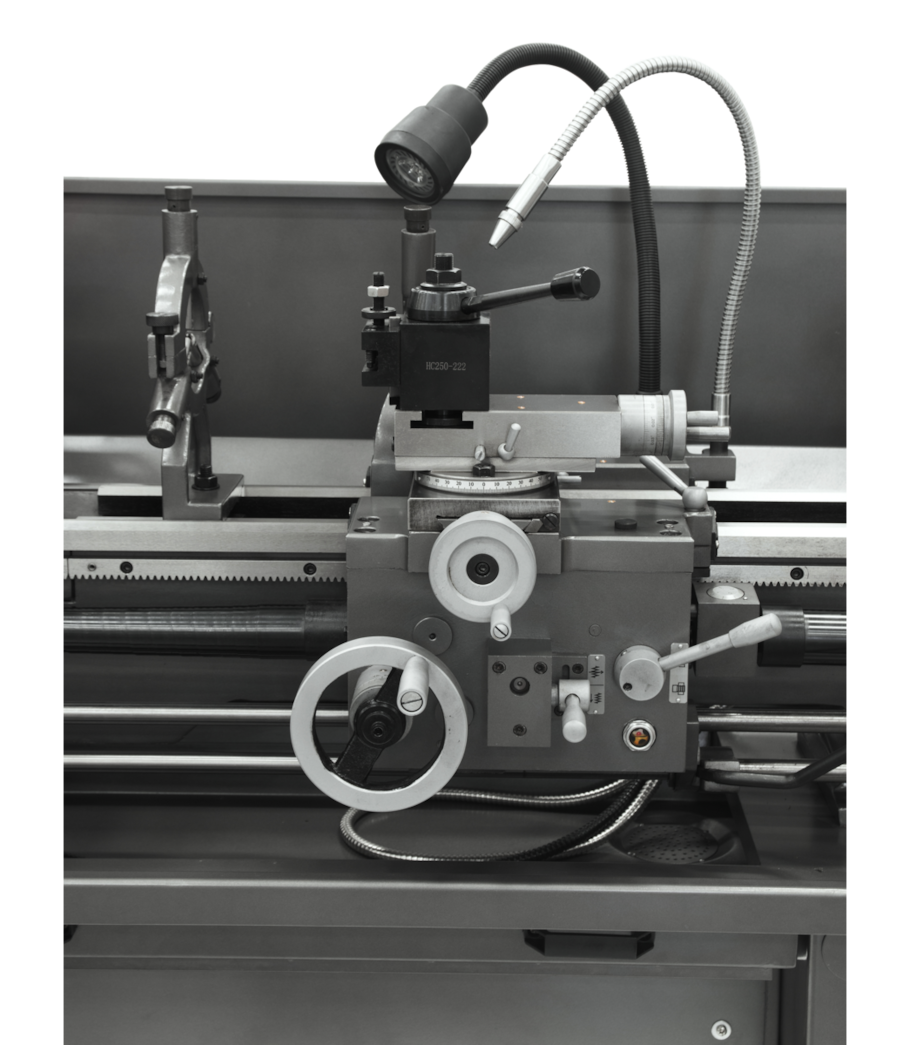

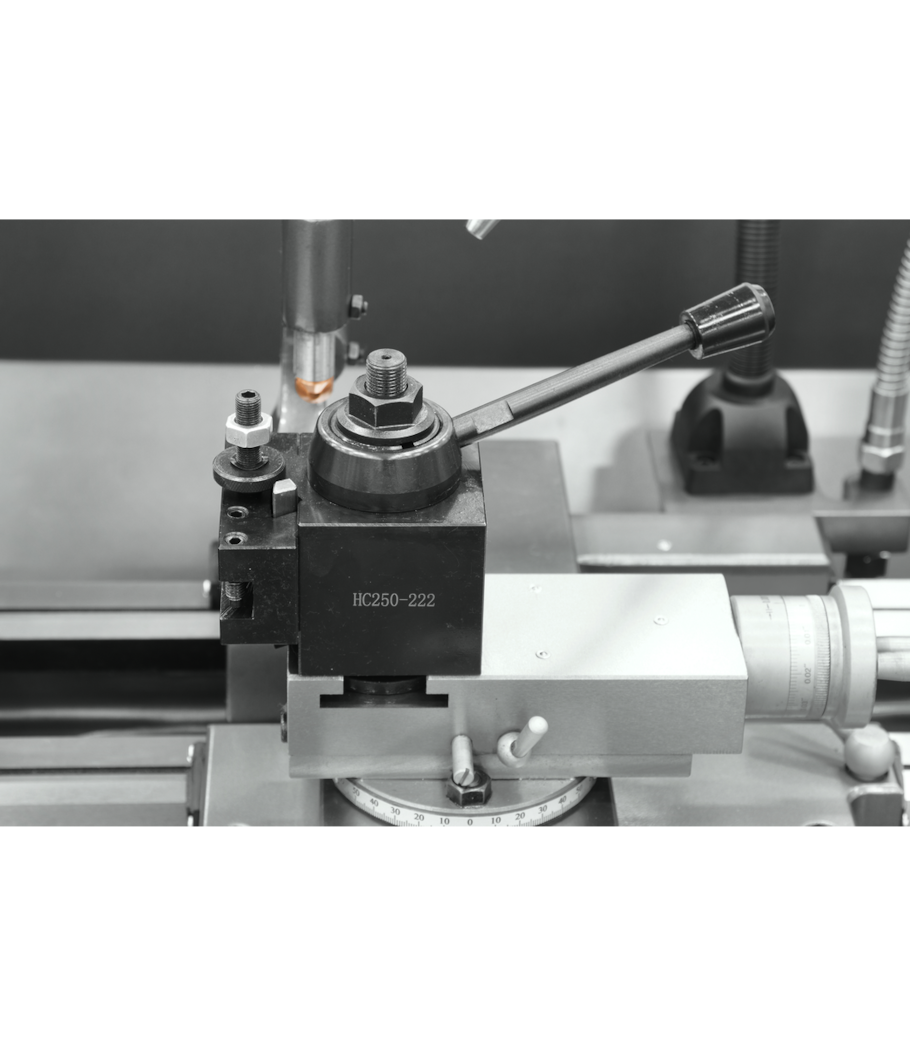

- Compound and cross slide have backlash adjustment for improved accuracy and repeatability
- Emergency stop within easy reach of the operator for enhanced workplace safety

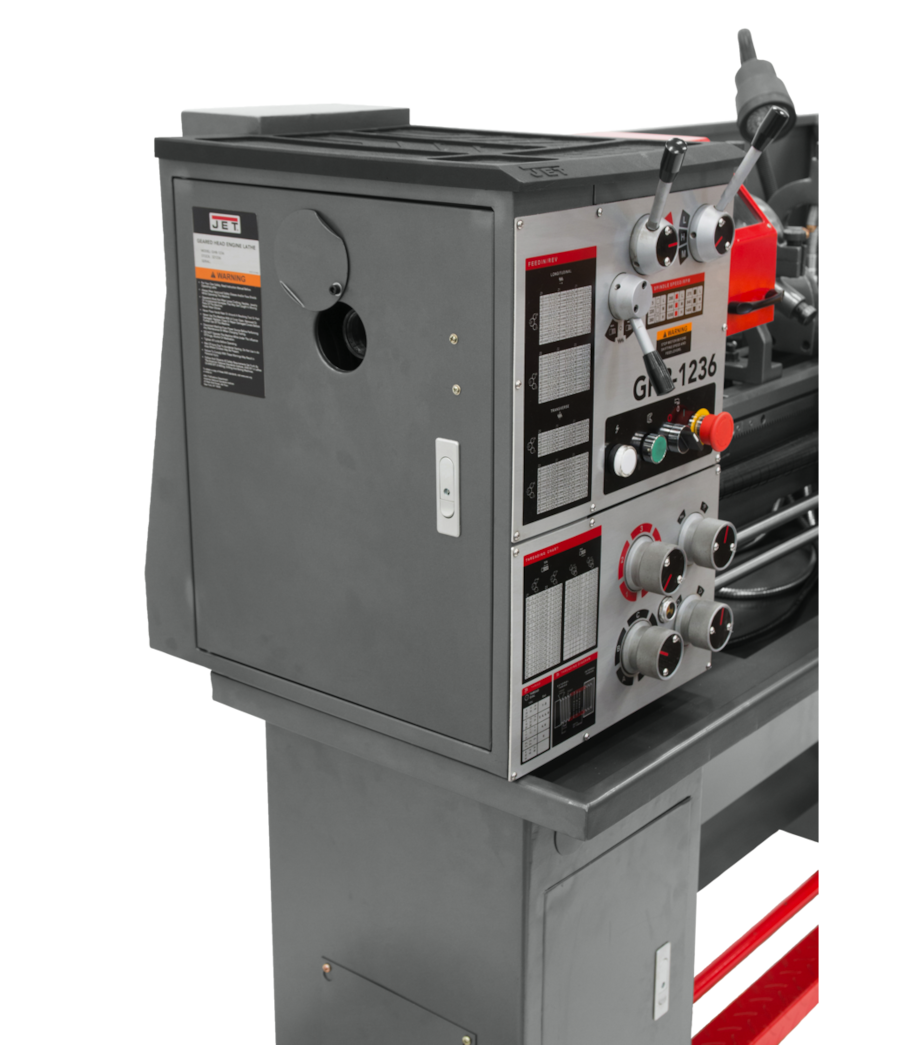

- Enclosed gearbox design provides smooth, quiet operation throughout the workday
- Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
- Mounted on stand with foot pedal, coolant and ready to use right out of the box
- Spindle Spider available for ease of turning gun barrels
- Steady Rest with Roller Bearings for improved support of long workpieces

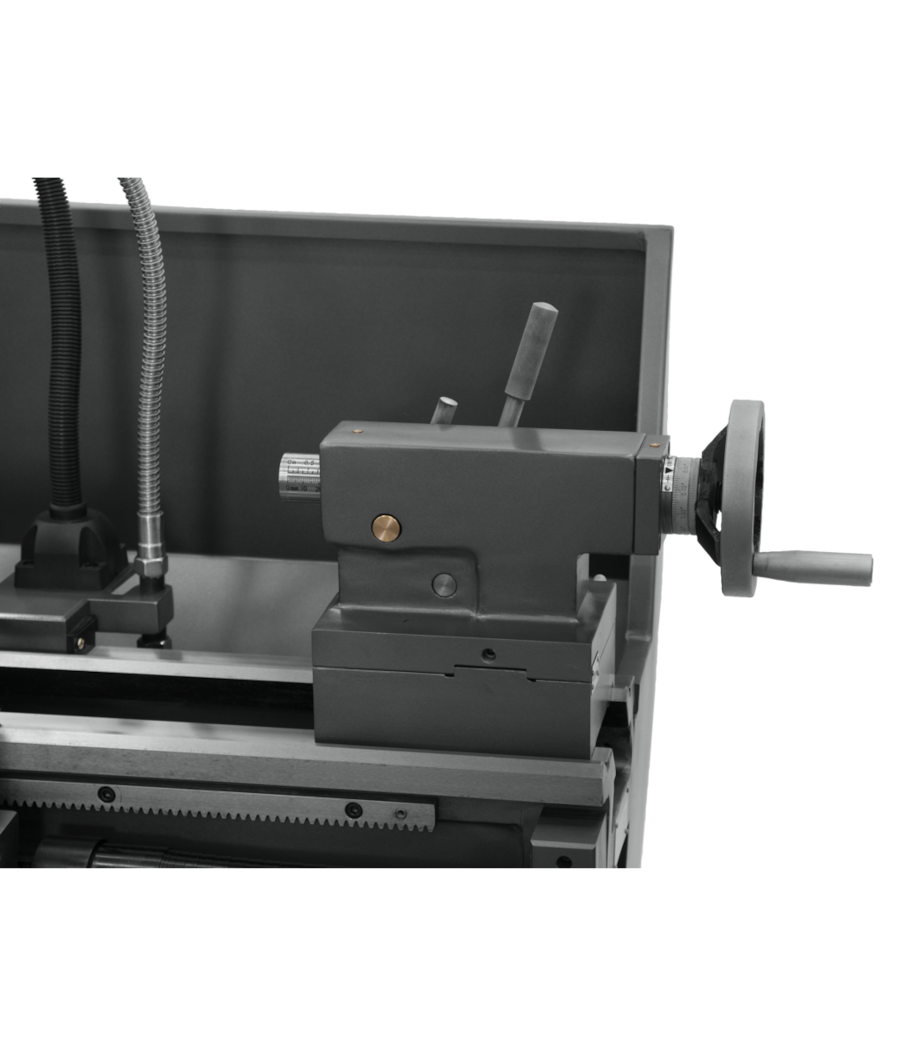

- Tailstock may be offset for turning taper
- Precision induction hardened ground bed-ways for ultimate working durability
- Spindle roller bearings and high-quality steel hardened gears in the headstock
Specifications
- Stock Number: 323230
- Country of Origin: China
- Motor: 2HP, 230V, Single Phase
- Swing Over Bed: 12 in.
- Swing Over Cross Slide: 7-1/2 in.
- Swing Through Gap: 18 in.
- Carriage Travel: 27-3/8 in.
- Compound Slide Travel: 3 in.
- Max Tool Size: 3/4 x 3/4 in.
- Number of Spindle Speeds: 9
- Range of Spindle Speeds: 75-1400 RPM
- Spindle Bore: 1.575 in.
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Number of Inch Threads: 36
- Range of Inch Threads: 4-60 TPI
- Number of Metric Threads: 32
- Range of Metric Threads: 0.4-7mm
- Number of Longitudinal and Cross Feed Rates: 48/36
- Range of Longitudinal Feeds: 0.0019-0.0472 IPR
- Range of Cross Feeds: 0.0014-0.0116 IPR
- Steady Rest Capacity: 0.31-2.95 in.
- Overall Dimensions (L x W x H): 66.14 x 29.53 x 57.48 in.
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- Does this lathe support both inch and metric threading?
- Yes. The enclosed gearbox gives a wide range of inch & metric threading & feed capabilities with few gear changes. It supports 36 inch thread pitches ranging from 4-60 TPI and 32 metric thread pitches ranging from 0.4-7mm.
- Can this lathe be used to turn gun barrels?
- Yes. A Spindle Spider is available for ease of turning gun barrels, making this lathe a strong choice for gunsmithing applications.
- Is the lathe ready to operate immediately upon delivery?
- Yes. The GHB-1236 is mounted on a stand with a foot pedal and coolant system and is ready to use - no additional assembly of those components is required to get started.
- What safety features does this lathe include?
- The lathe is equipped with an emergency stop within easy reach of the operator, as well as a foot pedal mounted on the stand for convenient machine control during operation.
