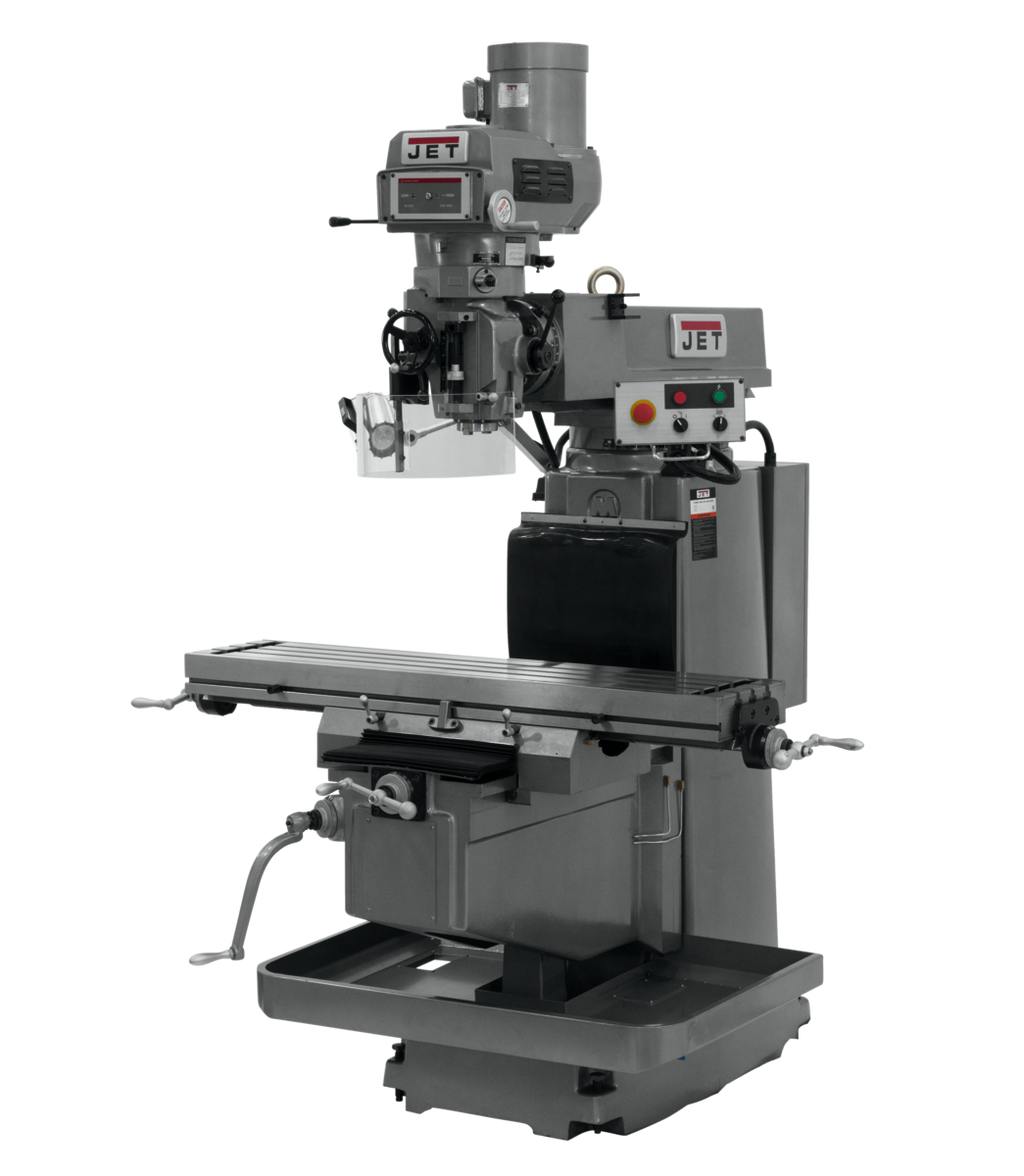

JET JTM-1254VS Mill with 3-Axis ACU-RITE G-2 MILLPOWER CNC and Air Power Drawbar by JET is a heavy-duty vertical CNC milling machine built for machinists who demand precision, repeatability, and advanced digital automation on the shop floor. Powered by a 5HP, 230/460V, 3-phase motor and equipped with the ACU-RITE MILLPWR G2 3-axis CNC control system, this mill combines Meehanite-cast construction with factory-installed CNC technology to deliver accurate, consistent results across a wide range of milling operations. Menu-prompted conversational programming makes it straightforward to create, edit, reverse, modify, delete, and copy or move part program steps - simply follow the on-screen prompts and let MILLPWR G2 handle the rest. CSA/CUS Certified and backed by the industry-leading JET Two Year Warranty.

Key Features

• 12.1" High resolution display (1024 x 768) with 3D graphics provides a clear, detailed visual interface for programming and monitoring operations
• 3-D Contouring with the ability to import and run G-code files from CAD/CAM programs expands programming flexibility and compatibility
• Adjustable gibs throughout allow precise fit and wear compensation to maintain accuracy over the life of the machine
• Automatic Lubrication every 180 minutes with a flow of 3 - 6cc reduces maintenance demands and helps extend machine longevity
• Available offline software lets operators prepare and verify programs away from the machine, maximizing uptime
• Estimated run time feature helps with job scheduling and production planning
• Jog Control allows table movement quickly from one location to another - using one axis at a time or any two axes simultaneously
• Three precision ground T-slots provide secure and accurate workholding for a wide variety of fixturing setups
• Two 115V outlets on the electrical box dedicated for Powerfeeds only, keeping auxiliary power conveniently accessible
• USB + Ethernet compatible for easy program transfer and network connectivity
• Pneumatic Power Drawbar speeds up tool changes and reduces operator fatigue
• Menu-prompted conversational programming makes it easy to create part programs, edit, reverse, change, delete, and copy or move steps without advanced CNC coding knowledge
• Factory-installed 3-axis CNC package ensures the system is fully integrated and ready to run right out of the crate
• CSA/CUS Certified for safety compliance confidence
• JET Two Year Warranty - industry-leading coverage for long-term peace of mind

Specifications

• Stock Number: 691942
• Style (Type): CNC
• Motor: 5HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 80 - 3,800
• Spindle Taper: NST #40
• Spindle Travel (In.): 5
• Quill Diameter (In.): 4-1/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Column Width (In.): 14-1/4
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Max Distance Spindle to Table (In.): 23
• Saddle Width (In.): 25-5/8
• Power Draw Bar: Pneumatic
• Overall Dimensions (L x W x H) (In.): 104-1/4 x 79-7/8 x 92-1/8
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What type of CNC control is included with this mill?

This mill comes factory-installed with the ACU-RITE G-2 MILLPOWER CNC 3-axis control system. It features a 12.1" high resolution display (1024 x 768) with 3D graphics, menu-prompted conversational programming, 3-D contouring capability, and the ability to import and run G-code files from CAD/CAM programs.

Does this machine support USB or network connectivity for transferring programs?

Yes. The ACU-RITE MILLPWR G2 control is USB + Ethernet compatible, allowing convenient program transfers and network integration. Offline software is also available so programs can be created and verified away from the machine.

What type of drawbar does this mill use, and what are the benefits?

This mill is equipped with a Pneumatic (Air) Power Drawbar. A pneumatic drawbar significantly speeds up tool changes compared to manual drawbars, helping to reduce operator fatigue and improve overall efficiency during production runs.

How does the automatic lubrication system work on this machine?

The machine features an automatic lubrication system that activates every 180 minutes with a flow rate of 3 - 6cc. This hands-free lubrication reduces routine maintenance requirements and helps protect critical machine components over time.

Note: Prop 65 Warning - Cancer and Reproductive Harm.
