Product Features
Product Description

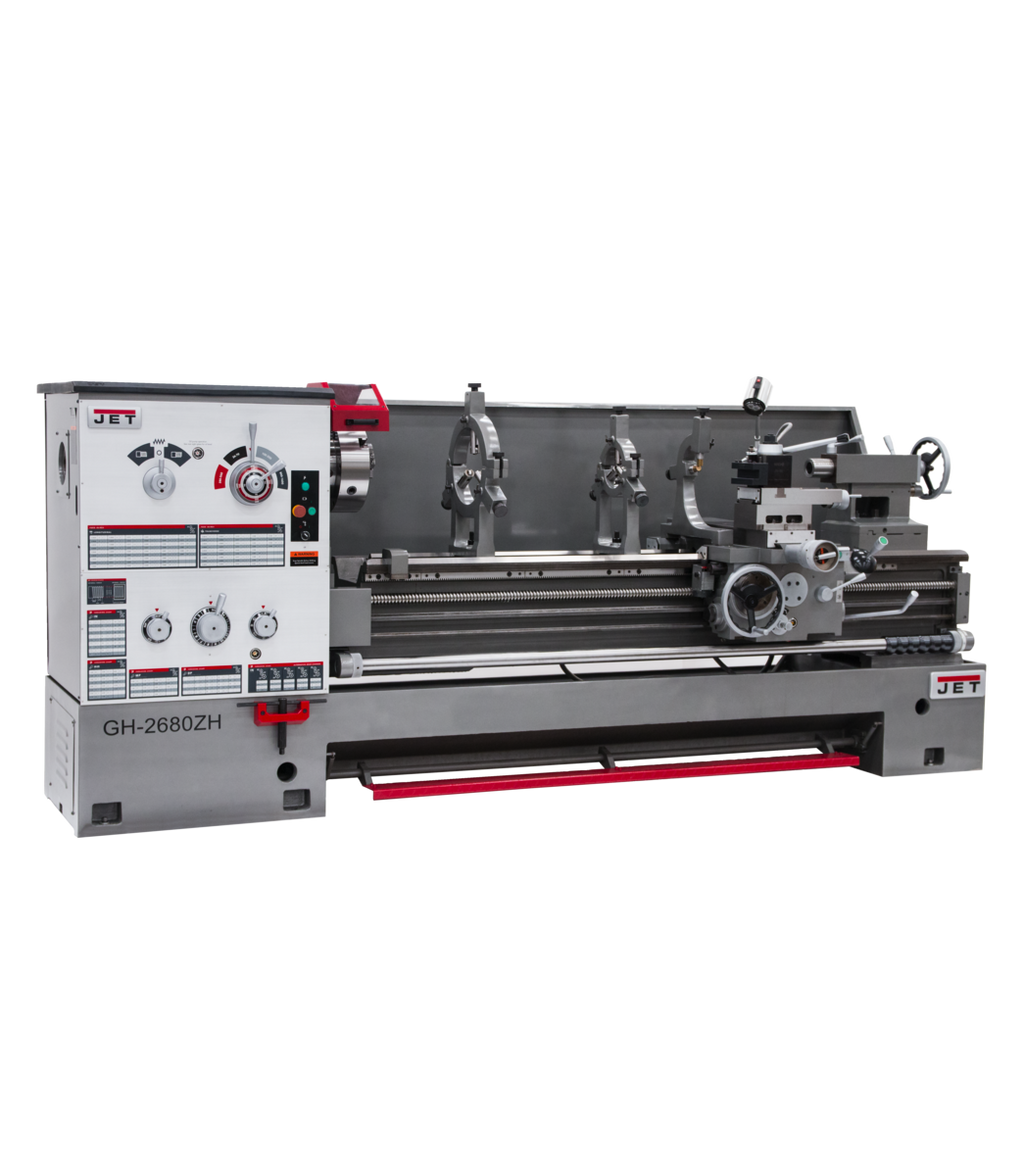

JET GH-2680ZH 4-1/8" Spindle Bore Lathe with ACU-RITE 203 DRO & Taper Attachment is a heavy-duty geared head lathe engineered by JET for high-output production environments. Built on Certified Meehanite castings, this machine delivers consistent, reliable turning performance with a 4-1/8" spindle bore, 10 HP motor, and an extensive range of threading and feed options - making it a premier choice for demanding industrial machining operations.
Key Features
- Certified Meehanite casting process provides exceptional rigidity and long-term durability
- Clutch-operated headstock with all headstock gears hardened and ground for precision and longevity
- Universal gearbox supports 18 inch thread pitches (2-30 TPI) and 22 metric thread pitches (1-14 mm)
- Bed ways are induction hardened and ground for durability
- Rapid power traverse to cross slide and carriage for efficient high-production use
- 12" 3-jaw scroll chuck with top reversing jaws included
- 2 steady rests with roller bearings for added workpiece support
- Heavy-duty tailstock and quill for reliable center and drilling operations
- E-Stop on carriage for added safety
- Large easy-to-use foot brake for quick, confident machine stops
- Electronic chuck key holder for safe and convenient key storage
- Fully integrated coolant system keeps workpieces and tooling at optimal temperatures
- Full length splash guard contains coolant and chips effectively
- Fitted top mats to hold tooling securely at the machine
- 12 spindle speeds ranging from 36-1,600 RPM to accommodate a wide variety of materials and diameters
- 65 longitudinal and cross feed rates for precise material removal control
- Backed by the industry-leading JET Two Year Warranty
Specifications
- Stock Number: 321865
- MPN: JT9-321865
- Drive Type: Geared Head
- Motor: 10 HP, 230/460, 3 Ph
- Number of Spindle Speeds: 12
- Range of Spindle Speeds: 36-1,600 RPM
- Carriage Travel: 72-1/2 in.
- Compound Slide Travel: 5-1/2 in.
- Length of Gap: 8 in.
- Max Tool Size: 1-1/4 x 1-1/4 in.
- Number of Inch Threads: 18
- Range of Inch Threads: 2-30 TPI
- Number of Metric Threads: 22
- Range of Metric Threads: 1-14 mm
- Number of Longitudinal and Cross Feed Rates: 65
- Range of Longitudinal Feeds: .0023-.0937 IPR
- Range of Cross Feeds: .010-.0404 IPR
- Overall Dimensions (L x W x H): 138 x 43 x 57 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- 12" 3-jaw scroll chuck with top reversing jaws
- 2 steady rests with roller bearings
- ACU-RITE 203 DRO
- Taper attachment
- Electronic chuck key holder
- Fitted top mats to hold tooling
- Full length splash guard
Frequently Asked Questions
- What is the spindle speed range on the JET GH-2680ZH?
- The lathe offers 12 spindle speeds ranging from 36-1,600 RPM, providing the versatility needed to machine a broad range of materials and workpiece diameters with optimal surface finish and tool life.
- What threading capabilities does this lathe support?
- The GH-2680ZH supports 18 inch thread pitches in the range of 2-30 TPI and 22 metric thread pitches in the range of 1-14 mm through its universal gearbox, making it well-suited for both inch and metric threading applications.
- What safety features are included on this machine?
- Safety features include an E-Stop on the carriage for immediate stops during operation, a large easy-to-use foot brake for quick machine shutdown, and an electronic chuck key holder that promotes safe chuck key storage and reduces the risk of accidental chuck key ejection.
- How many longitudinal and cross feed rates are available, and what are the ranges?
- The lathe provides 65 longitudinal and cross feed rates. Longitudinal feeds range from .0023-.0937 IPR and cross feeds range from .010-.0404 IPR, offering fine control over material removal for a wide variety of production and finishing operations.
