Product Features
Product Description

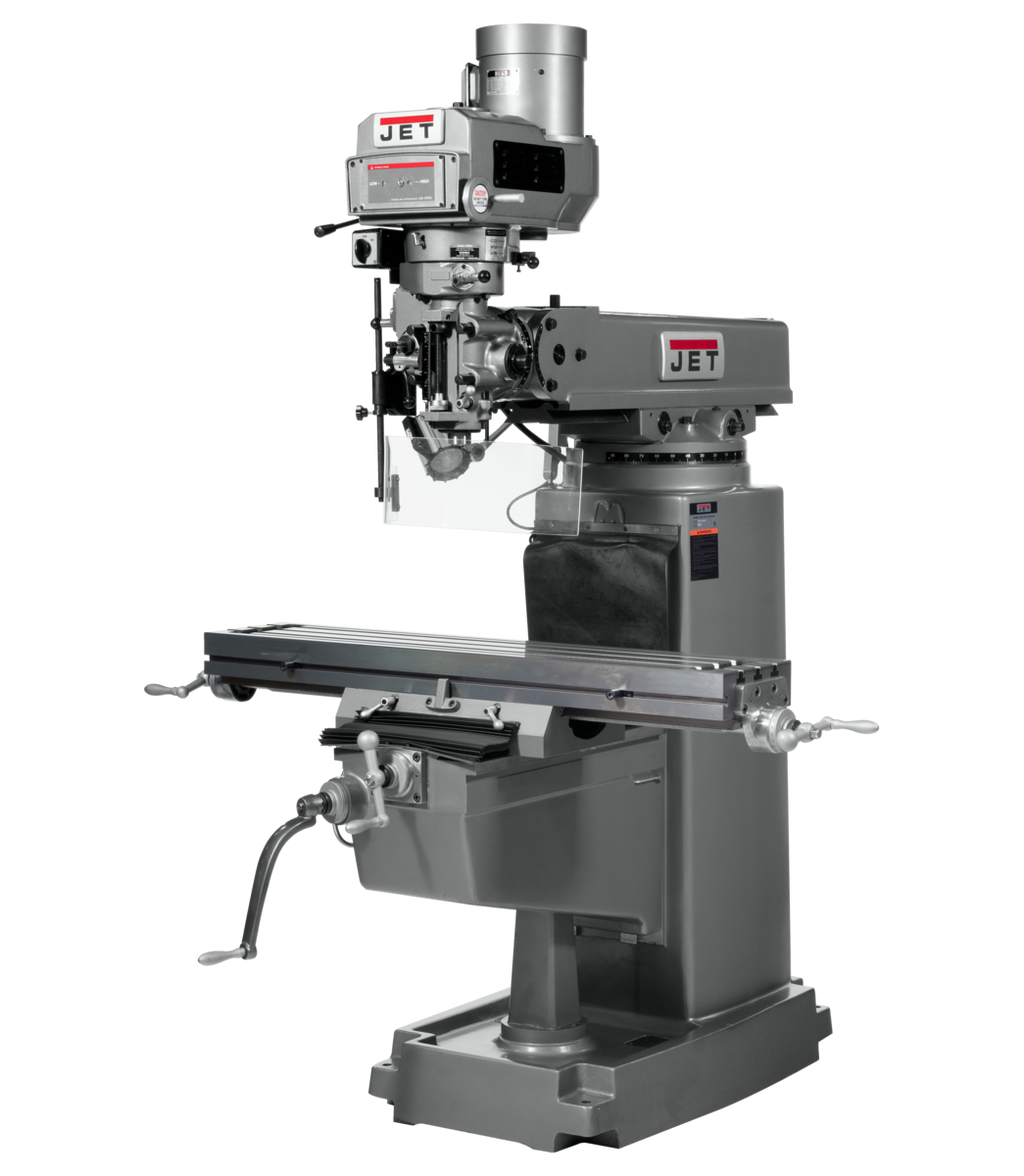

JET JTM-1050VS2 Mill with Newall DP700 DRO with X and Y-Axis Powerfeeds is a professional-grade variable speed vertical milling machine from JET, engineered for demanding machining environments where precision, rigidity, and operator efficiency are essential. Featuring Certified Meehanite castings, a hardened and ground 10" x 50" table, and a Newall DP700 Digital Readout paired with X and Y-axis powerfeeds, this mill delivers the accuracy and control required for complex milling, drilling, and boring operations in production and tool-and-die applications.
Key Features
- Certified Meehanite castings provide superior rigidity and vibration dampening for consistent, high-quality cuts
- Heavy-duty hardened and ground 10" x 50" table for a stable, precise workholding surface
- High-precision Class 7 bearings support the spindle for reduced runout and extended service life
- Precision bored and honed milling head ensures accurate, repeatable cuts
- Variable spindle speed range of 70 - 3,800 RPM for versatility across a wide range of materials and operations
- Three-stage power downfeed with automatic stop for ease of use and repeatable depth control
- Newall DP700 Digital Readout (DRO) for accurate positional feedback on all controlled axes
- X and Y-axis powerfeeds for reduced operator fatigue and consistent feed rates during long machining operations
- Adjustable gibs throughout for precise fit and wear compensation across all sliding surfaces
- Chrome lead screws on X and Y axis for smooth, accurate table movement and long-term durability
- Chrome-plated motor shaft with bearing support at end for enhanced motor longevity and drive stability
- Hardened and ground square vertical knee ensures accurate vertical positioning and structural integrity
- Heavy-duty motor drive rated at 3 HP, 230/460V, 3-Phase for robust performance under load
- Internal coolant tank built into base for use with a coolant system
- Large diameter quill is chromed for smooth travel and resistance to wear
- One-shot lubrication system for simplified, efficient maintenance of all critical surfaces
- Spindle head is internally cooled to minimize heat buildup and reduce maintenance requirements
- Tolerance test sheet included to verify machine accuracy at the time of delivery
- Backed by the industry-leading JET Two Year Warranty
Specifications
- MPN: JT9-691206
- Stock Number: 691206
- Style / Type: Variable Speed R8
- Motor: 3 HP, 230/460V, 3-Phase
- Range of Spindle Speeds: 70 - 3,800 RPM
- Spindle Taper: R-8
- Spindle Travel: 5 in.
- Quill Diameter: 3-3/8 in.
- Quill Down Feed Rates (IPR): .0015 / .003 / .006
- Collet Capacity: 1/8 - 7/8 in.
- Table Longitudinal Travel: (See full spec sheet)
- Table Cross Travel: 15-1/4 in.
- T-Slot Centers: 2-1/2 in.
- Max Distance Spindle to Table: 19 in.
- Distance Spindle to Column (Max.): 26 in.
- Number of Axes: 2
- Powerfeed: X and Y-Axis
- Overall Dimensions (L x W x H): 96 x 78 x 88 in.
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET JTM-1050VS2 Variable Speed Milling Machine
- Newall DP700 Digital Readout (DRO)
- X and Y-Axis Powerfeeds
- Tolerance test sheet
Frequently Asked Questions
- What type of spindle taper does the JTM-1050VS2 use?
- The JTM-1050VS2 uses an R-8 spindle taper, which is a widely adopted standard in vertical milling machines, offering broad compatibility with toolholders, collets, and cutting tools in the R-8 system. Collet capacity ranges from 1/8 to 7/8 in.
- What is the spindle speed range on this machine?
- The variable speed drive provides a spindle speed range of 70 to 3,800 RPM, giving operators the flexibility to machine a wide variety of materials - from tough alloys at lower speeds to aluminum and plastics at higher speeds.
- Does the JTM-1050VS2 include a coolant system?
- The machine features an internal coolant tank built into the base for use with a coolant system. Please note that a coolant pump is not included with this configuration and would need to be sourced separately.
- What lubrication system does the JTM-1050VS2 use, and how does it benefit the operator?
- The JTM-1050VS2 is equipped with a one-shot lubrication system, which allows the operator to lubricate all critical sliding surfaces quickly and consistently with a single action. This simplifies routine maintenance and helps extend the service life of the machine's precision components, including the chrome lead screws on the X and Y axes and the adjustable gibs throughout.
