Product Features
Product Description

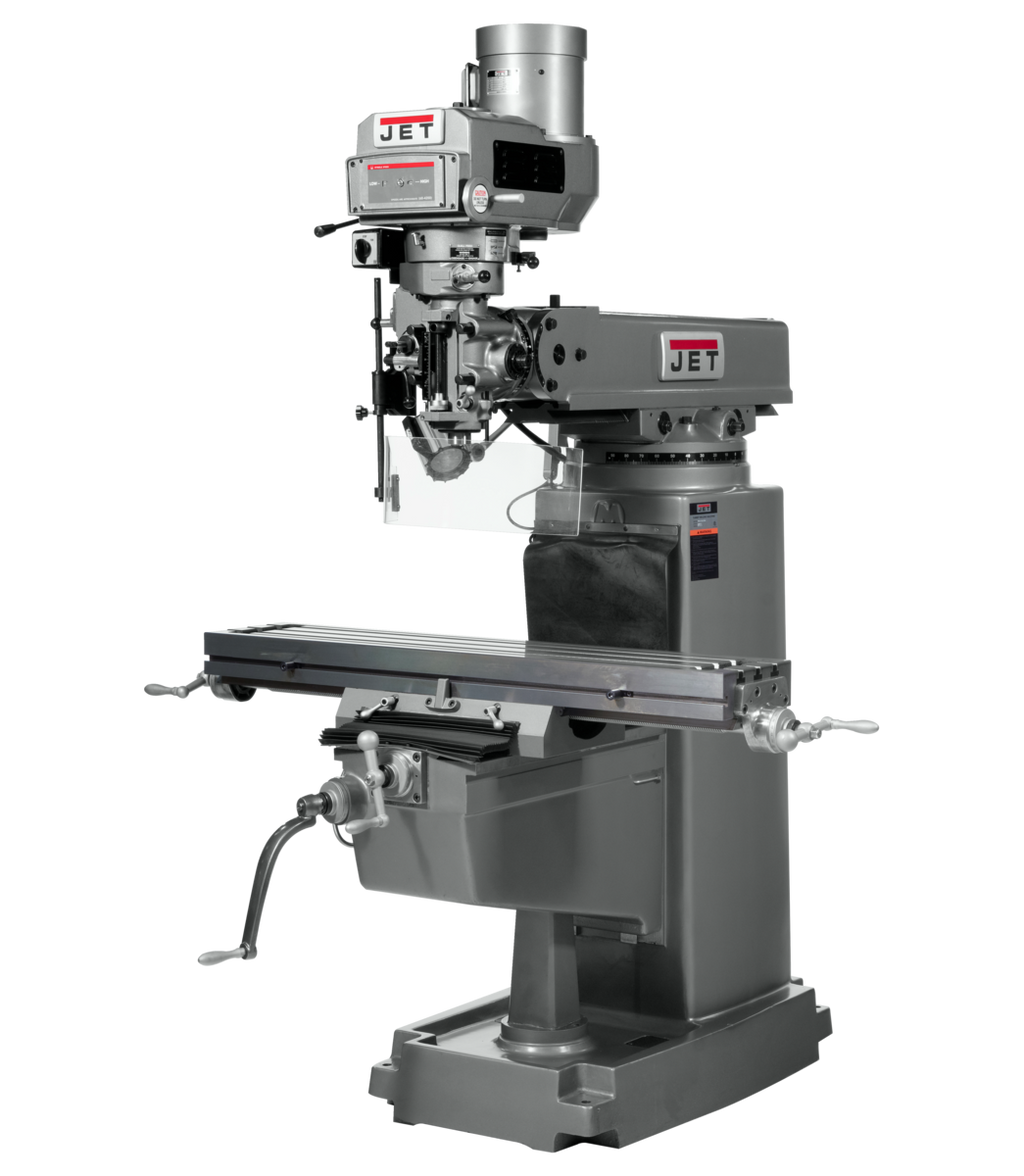

JET JTM-1050VS2 Mill with ACU-RITE 203 DRO, X-Axis Powerfeed & 8" Riser Block is a professional-grade vertical milling machine engineered by JET for demanding machining operations. Built on Certified Meehanite castings with a heavy-duty hardened and ground 10" x 50" table, this variable-speed mill delivers the rigidity, precision, and control that serious machinists require. High-precision Class 7 bearings support an internally cooled spindle head, the integrated ACU-RITE 203 DRO keeps measurements accurate on every pass, and the X-axis powerfeed reduces operator fatigue during long production runs - all backed by JET's industry-leading Two-Year Warranty.
Key Features
- Certified Meehanite castings provide exceptional rigidity and vibration damping for consistent, accurate cuts
- Heavy-duty hardened and ground 10" x 50" table with hardened and ground square knee ways and cross ways for lasting accuracy
- High-precision Class 7 bearings support the internally cooled spindle head
- Precision bored and honed milling head ensures superior surface finish and cut quality
- Adjustable gibs throughout for precise fit and long-term accuracy retention
- Chrome lead screws on X and Y axis resist wear and ensure smooth, consistent travel
- Chrome-plated motor shaft with bearing support at end for reduced deflection and extended component life
- Large diameter chromed quill for smooth, reliable quill operation
- Heavy-duty spindle brake for quick, safe spindle stops
- Three-stage power downfeed with automatic stop for repeatable, hands-free plunge operations
- ACU-RITE 203 DRO for real-time, high-accuracy digital readout on all machining axes
- X-axis powerfeed reduces operator fatigue and improves surface finish consistency
- 8" riser block included, expanding vertical clearance for taller workpieces
- Tolerance test sheet included, confirming factory-verified precision before shipment
Specifications
- MPN: JT9-690216
- Stock Number: 690216
- Country of Origin: Taiwan
- Number of Axes: 2
- Table Size: 10" x 50"
- Table Longitudinal Travel With Powerfeed: 29-3/4 in.
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Powerfeed: X-Axis
- Overall Dimensions (L x W x H): 96 x 78 x 88 in.
- Weight: 2,900 lbs.
- Warranty: JET 2-Year Warranty
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET JTM-1050VS2 Variable Speed Milling Machine
- ACU-RITE 203 Digital Readout (DRO)
- X-Axis Powerfeed
- 8" Riser Block
- Tolerance test sheet
Frequently Asked Questions
- What digital readout system is included with this mill?
- This mill comes equipped with the ACU-RITE 203 DRO, which provides real-time digital position readout to help machinists achieve precise, repeatable results across all machining operations.
- What quill down feed rates are available on the JTM-1050VS2?
- The three-stage power downfeed offers quill down feed rates of .0015, .003, and .006 inches per revolution (IPR), with an automatic stop feature for repeatable depth control.
- What is the table longitudinal travel with the powerfeed engaged?
- With the X-axis powerfeed engaged, the table provides 29-3/4 inches of longitudinal travel, accommodating a wide range of workpiece sizes and milling operations.
- Why are chrome lead screws and a chromed quill important on this machine?
- The chrome lead screws on the X and Y axes resist wear and corrosion, ensuring smooth, consistent table movement over the long term. The large diameter chromed quill similarly provides a durable, low-friction surface for reliable quill operation and extended service life.
