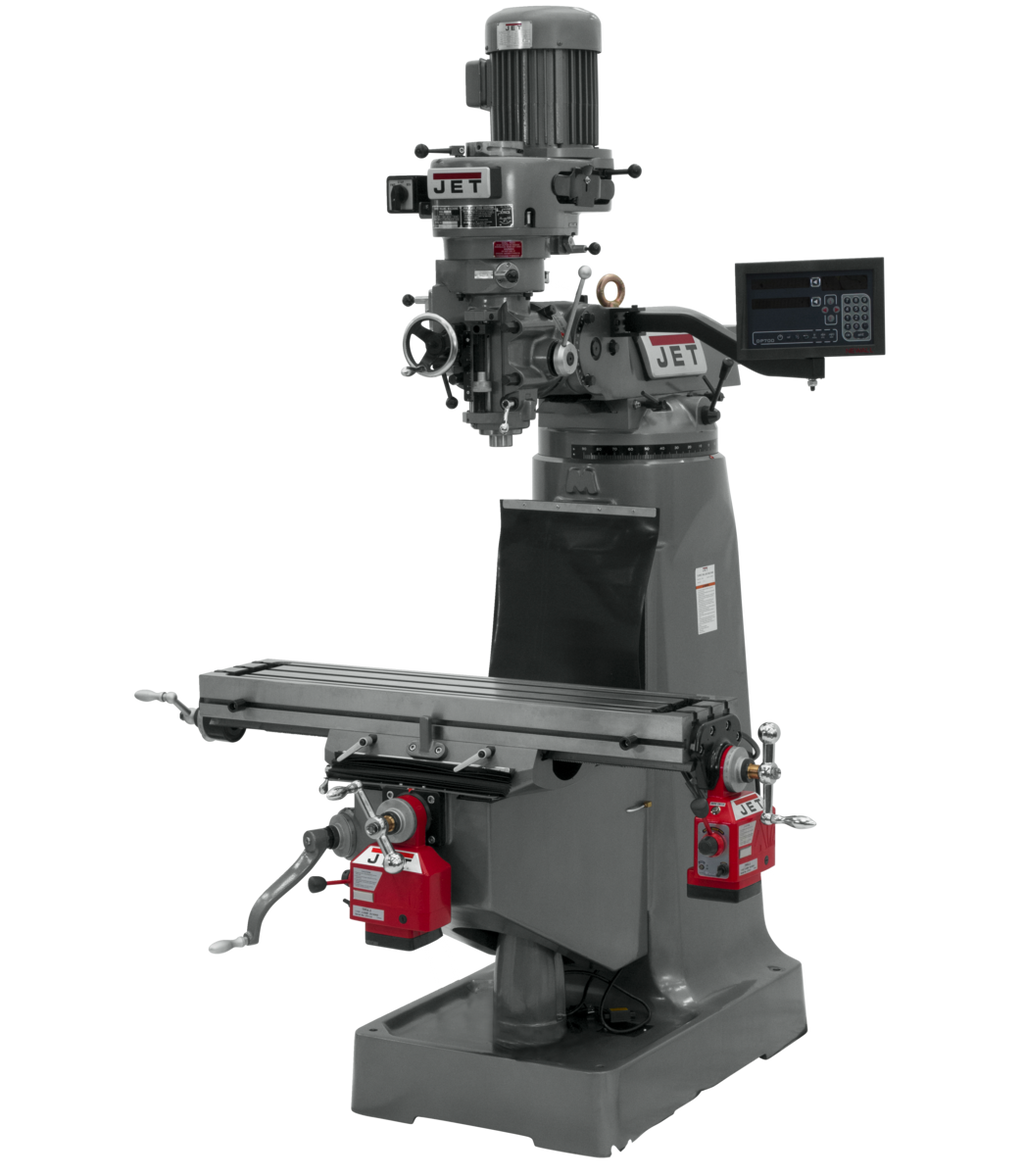

JET JTM-2 Mill with 3-Axis Newall DP700 DRO (Quill) and X & Y-Axis Powerfeeds is a precision vertical knee mill engineered by JET for demanding milling, drilling, and boring operations in professional machine shops and industrial environments. Built on certified Meehanite castings and equipped with a 3-axis Newall DP700 digital readout on the quill plus powerfeeds on both the X and Y axes, this mill delivers the accuracy, rigidity, and operational control that skilled machinists require for consistent, repeatable results.

Key Features

• Certified Meehanite castings provide superior rigidity and vibration damping for accurate, chatter-free cuts
• Heavy duty splined motor drive transfers power efficiently for demanding milling applications
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Large diameter quill is chromed for durability and smooth, precise movement
• One shot lubrication system simplifies maintenance and extends machine life
• Precision bored and honed milling head ensures tight tolerances and consistent performance
• Precision hardened and ground ways deliver smooth travel and long-term accuracy
• Spindle head is internally cooled to prevent seizing and maintain performance during extended operation
• Three stage power downfeed with automatic stop for controlled, repeatable drilling and boring cycles
• Tolerance test sheet included, documenting factory-verified precision at time of manufacture
• 3-axis Newall DP700 DRO on the quill with X and Y-axis powerfeeds for enhanced productivity and positioning accuracy
• Eight spindle speeds ranging from 80 to 2,720 RPM accommodate a wide range of materials and tooling
• R-8 spindle taper is the industry-standard for versatile tooling compatibility
• Backed by the JET Two Year Warranty

Specifications

• MPN: JT9-691199
• Stock Number: 691199
• Style (Type): Step Pulley R8
• Motor: 2 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 8
• Range of Spindle Speeds (RPM): 80 - 2,720
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Number of Axis: 3 (Quill)
• Powerfeed: X and Y-Axis
• Collet Capacity: 1/8 - 7/8
• Table Size (L x W) (In.): 9 x 42
• Table Longitudinal Travel (In.): 23-7/8
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Travel of Knee (In.): 14-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What DRO system is included with this mill, and which axes does it cover?

This mill comes equipped with a 3-axis Newall DP700 Digital Readout on the quill. In addition, powerfeeds are included on both the X and Y axes, giving the operator precise, motorized table movement and accurate digital position feedback during machining operations.

What spindle taper does the JTM-2 use, and what collet sizes are compatible?

The JTM-2 uses an R-8 spindle taper, which is the industry-standard configuration. It accepts collets ranging from 1/8 inch to 7/8 inch, making it compatible with a wide variety of commonly available tooling.

How many spindle speeds are available, and what is the speed range?

The mill features 8 spindle speeds with a range of 80 to 2,720 RPM. This broad range allows machinists to select the appropriate speed for different materials, cutter diameters, and cutting conditions.

Does the JTM-2 include a coolant system, and what should I know about the coolant setup?

The JTM-2 has an internal coolant tank built into the base for use with a coolant system. However, the coolant pump is not included and must be sourced separately. The built-in tank provides a convenient, integrated foundation for adding a coolant system to the machine.
