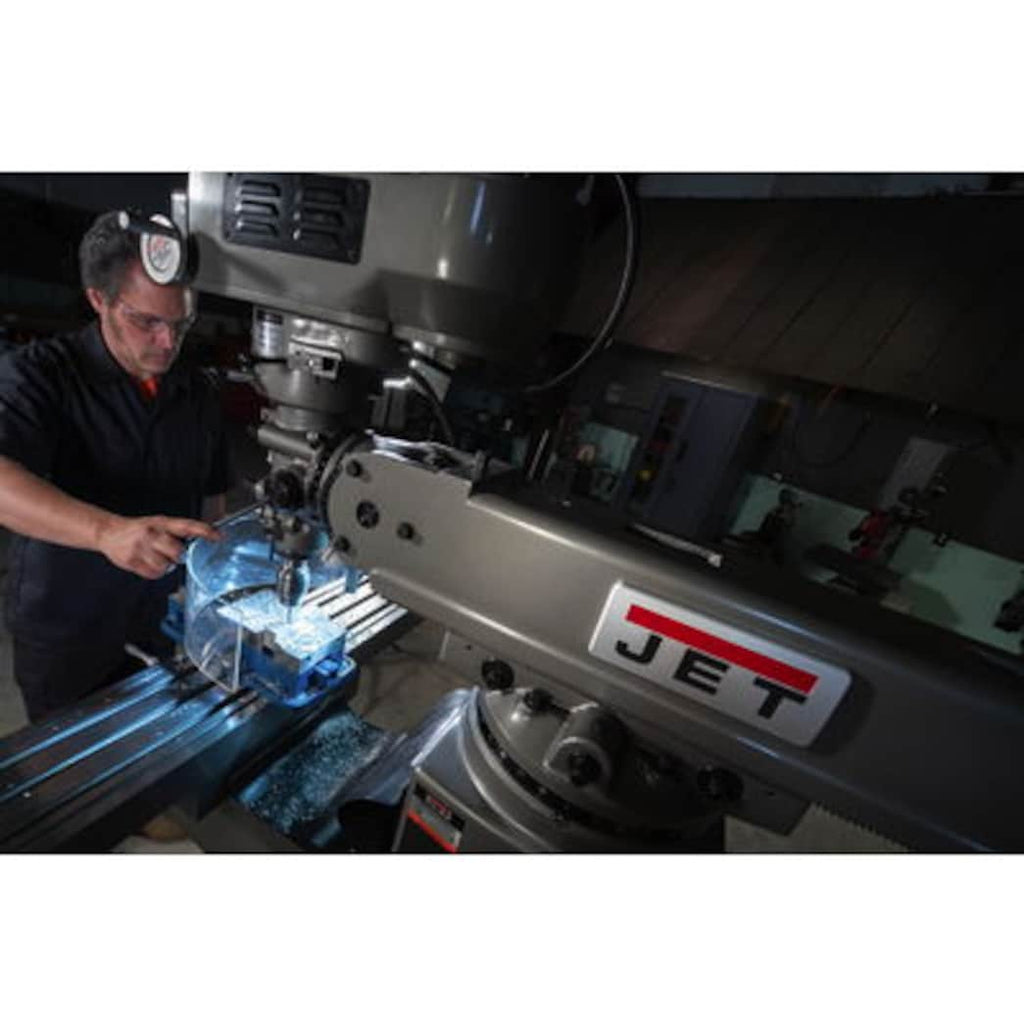

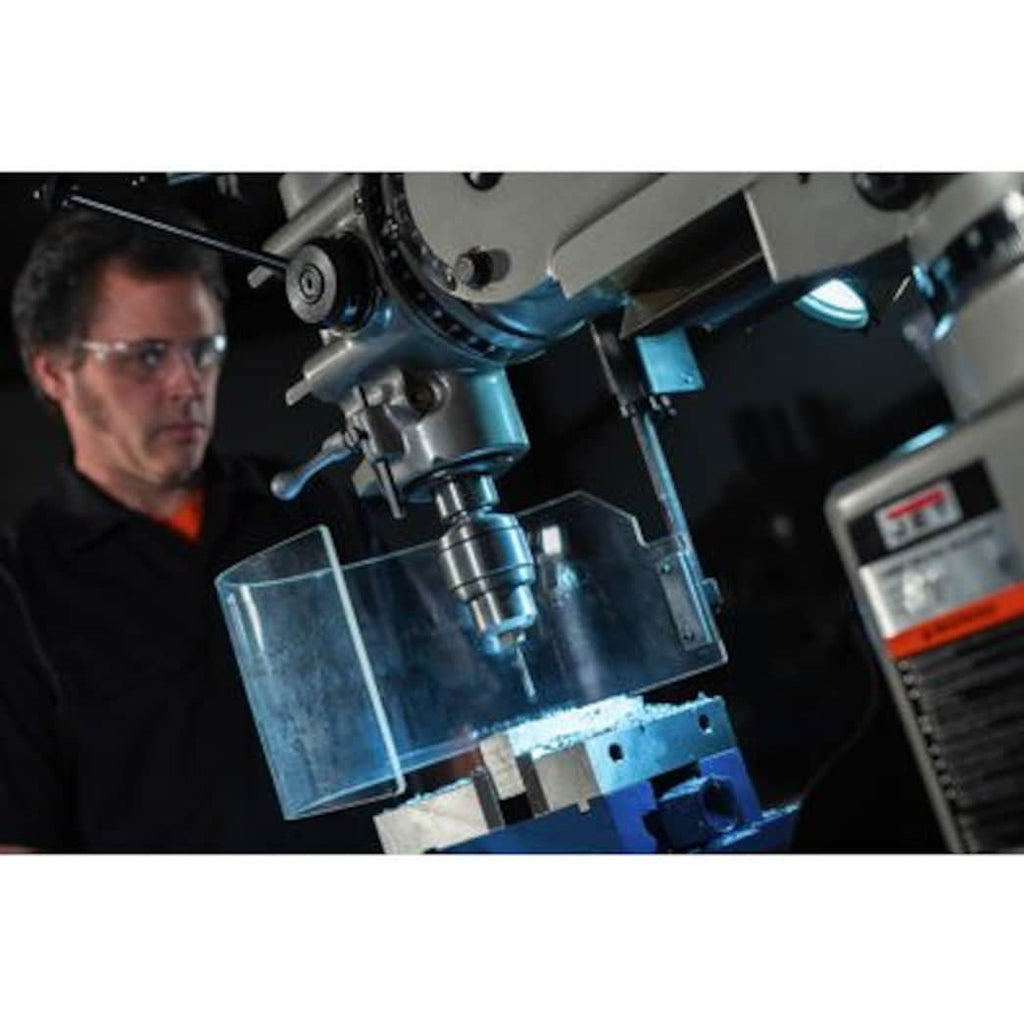

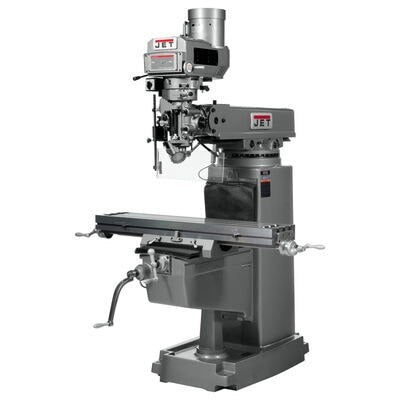

JET JTM-1050VS2 Mill with X and Y-Axis Powerfeeds is a professional-grade variable speed vertical milling machine from JET, engineered for precision metalworking operations that demand consistent accuracy and reliable performance. Built on Certified Meehanite castings with a hardened and ground 10" x 50" table, this mill combines robust construction with operator-friendly features including dual-axis powerfeeds, a wide spindle speed range, and high-precision class 7 bearings - making it a capable centerpiece for demanding shop environments.

Key Features

• Certified Meehanite castings provide a rigid, vibration-damping foundation for precision milling
• Heavy-duty hardened and ground 10" x 50" table delivers a stable, accurate work surface
• High-precision class 7 bearings support the spindle for smooth, repeatable cuts
• Precision bored and honed milling head ensures quality cuts with minimal runout
• Variable spindle speed range of 70 - 3,800 RPM handles a wide variety of materials and operations
• X and Y-axis powerfeeds for consistent, hands-free table movement during cuts
• Three-stage power downfeed with automatic stop for controlled, repeatable quill advancement
• Adjustable gibs throughout for precise fit and long-term accuracy maintenance
• Chrome lead screws on X and Y axis resist wear and ensure smooth, accurate table movement
• Chrome-plated motor shaft with bearing support at the end for enhanced durability and alignment
• Hardened and ground square vertical knee ways and cross ways for smooth, accurate knee travel
• Heavy-duty motor drive handles demanding milling applications with confidence
• Large diameter chromed quill resists wear and provides a precise, smooth bore for quill operations
• One-shot lubrication system simplifies maintenance and protects critical wear surfaces
• Spindle head is internally cooled to maintain consistent operating temperatures during extended use
• Internal coolant tank built into the base for use with a coolant system (coolant pump not included)
• Tolerance test sheet included to verify machine accuracy out of the box
• Backed by the industry-leading JET Two Year Warranty

Specifications

• Stock Number: 690150
• Style (Type): Variable Speed R8
• Motor: 3 HP, 230/460V, 3Ph
• Powerfeed: X and Y-Axis
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Longitudinal Travel (In.): 35
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Max.) (In.): 26
• Max Distance Spindle to Table (In.): 19
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• Tolerance test sheet to verify out-of-box machine accuracy

Frequently Asked Questions

What spindle taper does the JTM-1050VS2 use, and what collet sizes are compatible?

The JTM-1050VS2 uses an R-8 spindle taper, which is one of the most common standards in vertical milling. It accepts collets ranging from 1/8" to 7/8", making it compatible with a wide variety of tooling for different milling operations.

Does this mill include a coolant pump with the internal coolant tank?

The JTM-1050VS2 features an internal coolant tank built directly into the base, which is designed for use with a coolant system. However, the coolant pump is not included and must be sourced separately.

What power requirements does the JTM-1050VS2 need?

This mill is powered by a 3 HP motor rated for 230/460V, 3-phase power. It is important to ensure your facility has the appropriate three-phase electrical service before installation.

What is the spindle speed range and how does variable speed operation benefit the user?

The JTM-1050VS2 offers a variable spindle speed range of 70 to 3,800 RPM. This wide range allows operators to dial in the optimal cutting speed for different materials - from slow speeds for tough metals to higher speeds for aluminum and softer alloys - without the need to change belt positions, saving time and increasing versatility.
