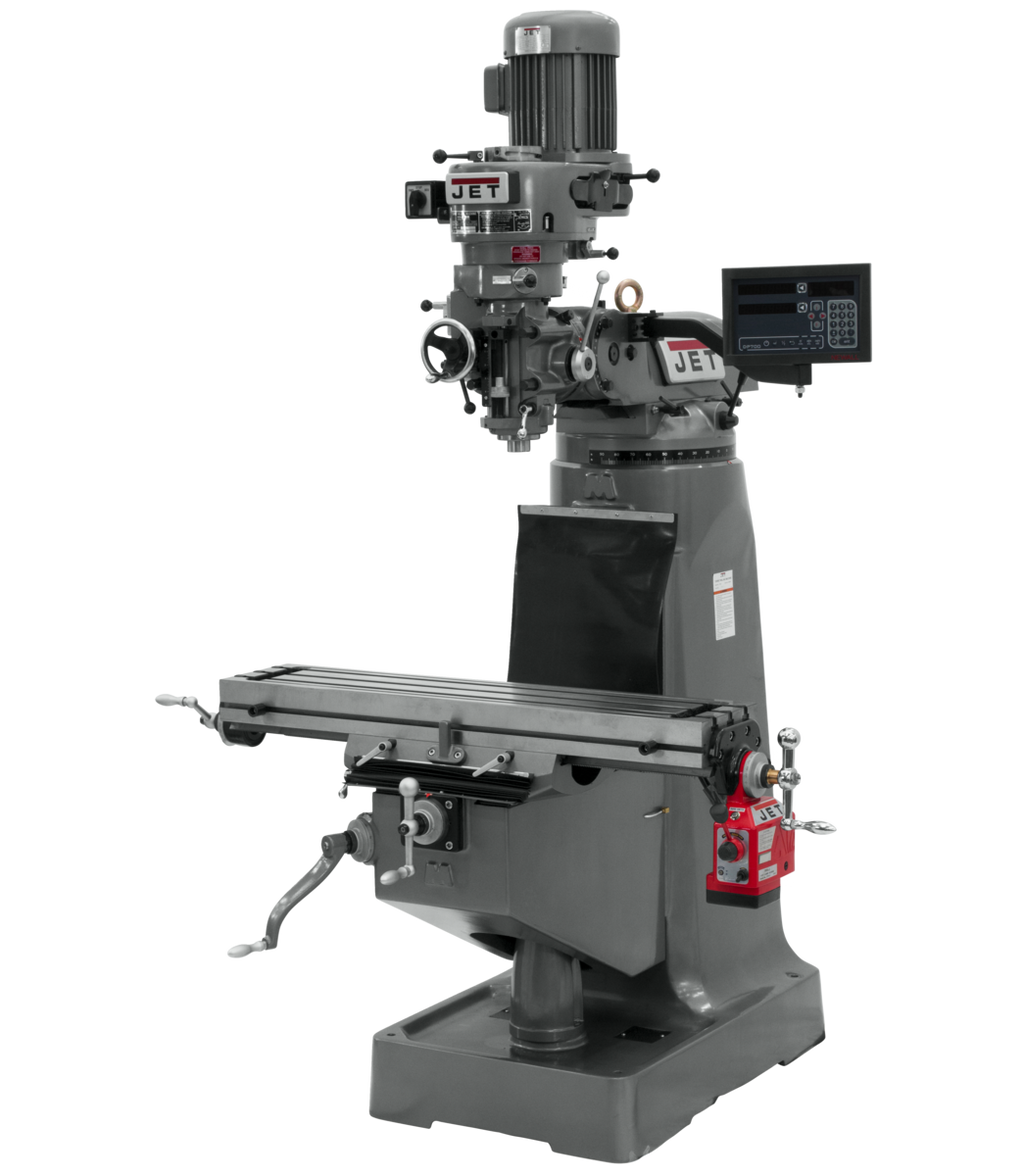

JET JTM-2 Mill with 3-Axis Newall DP700 DRO (Quill) and X-Axis Powerfeed is a precision vertical knee mill engineered by JET for demanding machining operations that require accuracy, rigidity, and digital readout convenience. Combining a 3-axis Newall DP700 DRO on the quill with an X-axis powerfeed, this step pulley R-8 mill delivers exceptional repeatability and operator efficiency across a wide range of milling, drilling, and boring tasks. Backed by the industry-leading JET Two Year Warranty, the JTM-2 is built to perform at a professional level day after day.

Key Features

• Certified Meehanite castings provide a rigid, vibration-damping foundation for superior surface finishes and long-term accuracy
• Heavy duty splined motor drive delivers consistent power transfer with minimal backlash
• Internal coolant tank built into the base for use with a coolant system (coolant pump not included)
• Large diameter quill is chromed for durability and smooth travel
• One-shot lubrication system simplifies maintenance and extends way life
• Precision bored and honed milling head ensures accurate spindle alignment
• Precision hardened and ground ways provide consistent, low-friction movement across all axes
• Spindle head is internally cooled to prevent seizing during extended operation
• Three-stage power downfeed with automatic stop enables repeatable depth control at feed rates of .0015, .003, and .006 IPR
• Tolerance test sheet included for documented verification of machine accuracy
• 3-axis Newall DP700 DRO on the quill for precise digital position readout
• X-axis powerfeed for reduced operator fatigue and consistent table feed during long cuts
• 8 spindle speeds ranging from 80 to 2,720 RPM to suit a wide variety of materials and tooling
• R-8 spindle taper accommodates a broad range of standard toolholding
• High precision Class 7 spindle bearings for accurate, long-lasting spindle performance

Specifications

• MPN: JT9-691198
• Style (Type): Step Pulley R8
• Motor: 2 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 8
• Range of Spindle Speeds (RPM): 80 - 2,720
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Size (L x W) (In.): 9 x 42
• Table Longitudinal Travel (In.): 23-7/8
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Travel of Knee (In.): 14-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Number of Axis: 3 (Quill)
• Powerfeed: X-Axis
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Prop 65: Cancer and Reproductive Harm
• Country of Origin: Taiwan

What's Included

• JET JTM-2 vertical knee mill
• 3-axis Newall DP700 DRO (quill)
• X-axis powerfeed
• Tolerance test sheet

Frequently Asked Questions

What DRO system is included with this mill, and how many axes does it cover?

This mill comes equipped with a 3-axis Newall DP700 DRO configured for the quill, giving the operator precise digital position readout across three axes for improved accuracy and reduced setup time.

What are the available quill downfeed rates and how does the automatic stop work?

The three-stage power downfeed system offers rates of .0015, .003, and .006 inches per revolution. The automatic stop feature allows the operator to preset a depth, and the downfeed will disengage automatically when that depth is reached, enabling consistent and repeatable results.

Is a coolant pump included with the built-in coolant tank?

The base of the mill includes an internal coolant tank designed for use with a coolant system; however, the coolant pump is not included and must be sourced separately.

What spindle taper does this mill use, and what collet sizes are compatible?

The JTM-2 uses an R-8 spindle taper, which is one of the most widely used standards in knee mills. It accepts collets ranging from 1/8 inch to 7/8 inch, providing compatibility with a broad selection of standard toolholding and workholding accessories.
