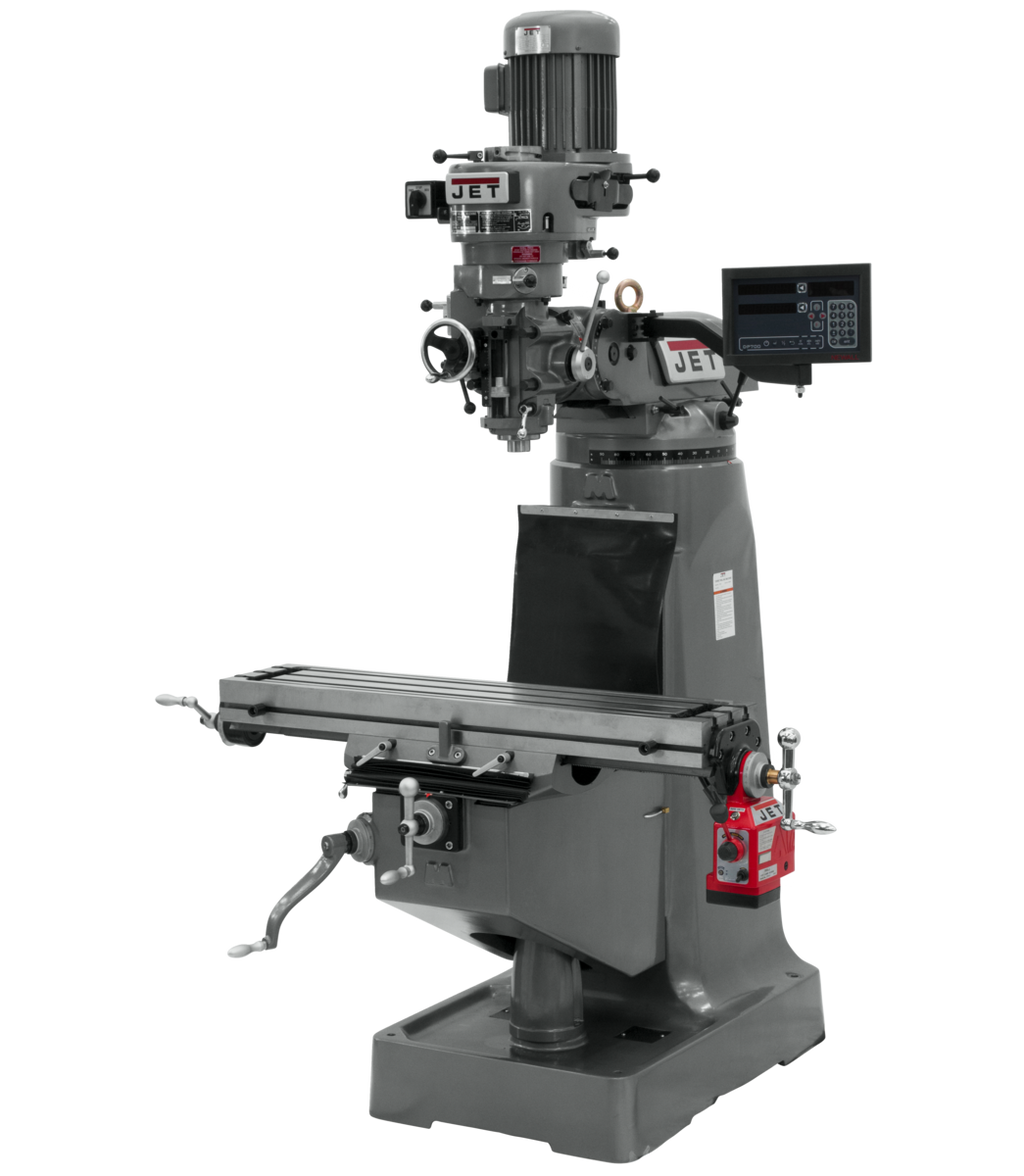

JET JTM-1 Mill with 3-Axis Newall DP700 DRO (Quill) with X-Axis Powerfeed is a precision vertical milling machine engineered by JET for demanding machining environments where accuracy, repeatability, and long-term reliability are non-negotiable. Equipped with a 3-axis Newall DP700 digital readout on the quill and an X-axis powerfeed, this step-pulley R-8 mill delivers 16 spindle speeds ranging from 80-5,440 RPM, making it equally capable of tackling roughing cuts and fine finishing work. Certified Meehanite castings provide the rugged, vibration-dampening foundation that serious machinists demand, while Class 7 spindle bearings and a precision bored and honed milling head ensure consistent, high-quality results backed by the industry-leading JET Two Year Warranty.

Key Features

• Heavy duty splined motor drive for reliable, consistent power transmission to the spindle
• Internal coolant tank built into the base for use with a coolant system (coolant pump not included)
• Large diameter chromed quill (3-3/8 in.) resists wear and corrosion for extended service life
• One shot lubrication system keeps critical components properly lubricated with minimal effort
• Precision bored and honed milling head for superior spindle alignment and surface finish quality
• Precision hardened and ground ways deliver smooth, accurate table movement across all axes
• Satin chrome finished dials provide clear, easy-to-read graduations for precise manual adjustments
• Tolerance test sheet included, verifying the machine meets JET's strict accuracy standards out of the box
• Three-stage power down feed with automatic stop for repeatable, controlled quill depth operations
• Quill down feed rates of .0015-.003-.006 IPR to match feed requirements to the material and operation
• Internally cooled spindle head prevents seizing during extended machining sessions
• 3-axis Newall DP700 DRO (quill) eliminates manual measurement error and speeds up setups significantly
• X-axis powerfeed automates longitudinal table travel for consistent surface finishes and reduced operator fatigue
• 16 spindle speeds from 80-5,440 RPM accommodate a wide range of materials and cutting tools
• R-8 spindle taper accepts a broad selection of industry-standard tooling and collets
• Collet capacity of 1/8-7/8 in. for versatile tooling options across common milling tasks

Specifications

• MPN: JT9-691191
• Stock Number: 691191
• Country of Origin: Taiwan
• Style (Type): Step Pulley R8
• Motor: 2 HP, 230V, 3Ph
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 80-5,440
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015-.003-.006
• Collet Capacity: 1/8-7/8
• Number of Axis: 3 (Quill)
• Powerfeed: X-Axis
• Table Longitudinal Travel (In.): 23-7/8
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Max Distance Spindle to Table (In.): 17-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What type of digital readout is included with this mill, and how many axes does it cover?

This mill comes equipped with a 3-axis Newall DP700 DRO configured for the quill. It covers three axes and is designed to eliminate manual measurement errors, significantly reducing setup time and improving positional accuracy across all milling operations.

Does this machine include a coolant pump?

The JTM-1 features an internal coolant tank built directly into the base, which is designed for use with a coolant system. However, the coolant pump is not included with the machine and must be sourced separately.

What spindle taper does the JTM-1 use, and what collet sizes are compatible?

The JTM-1 uses an R-8 spindle taper, which is one of the most widely used standards in vertical milling. It accepts collets ranging from 1/8-7/8 in., giving machinists a broad selection of compatible tooling for a wide variety of milling tasks.

How does the one shot lubrication system benefit the machine during operation?

The one shot lubrication system allows the operator to deliver lubricant to all critical moving components simultaneously with a single action. This ensures the precision hardened and ground ways and other wear surfaces remain properly lubricated, extending machine life and maintaining accuracy over years of heavy use.
