Product Description

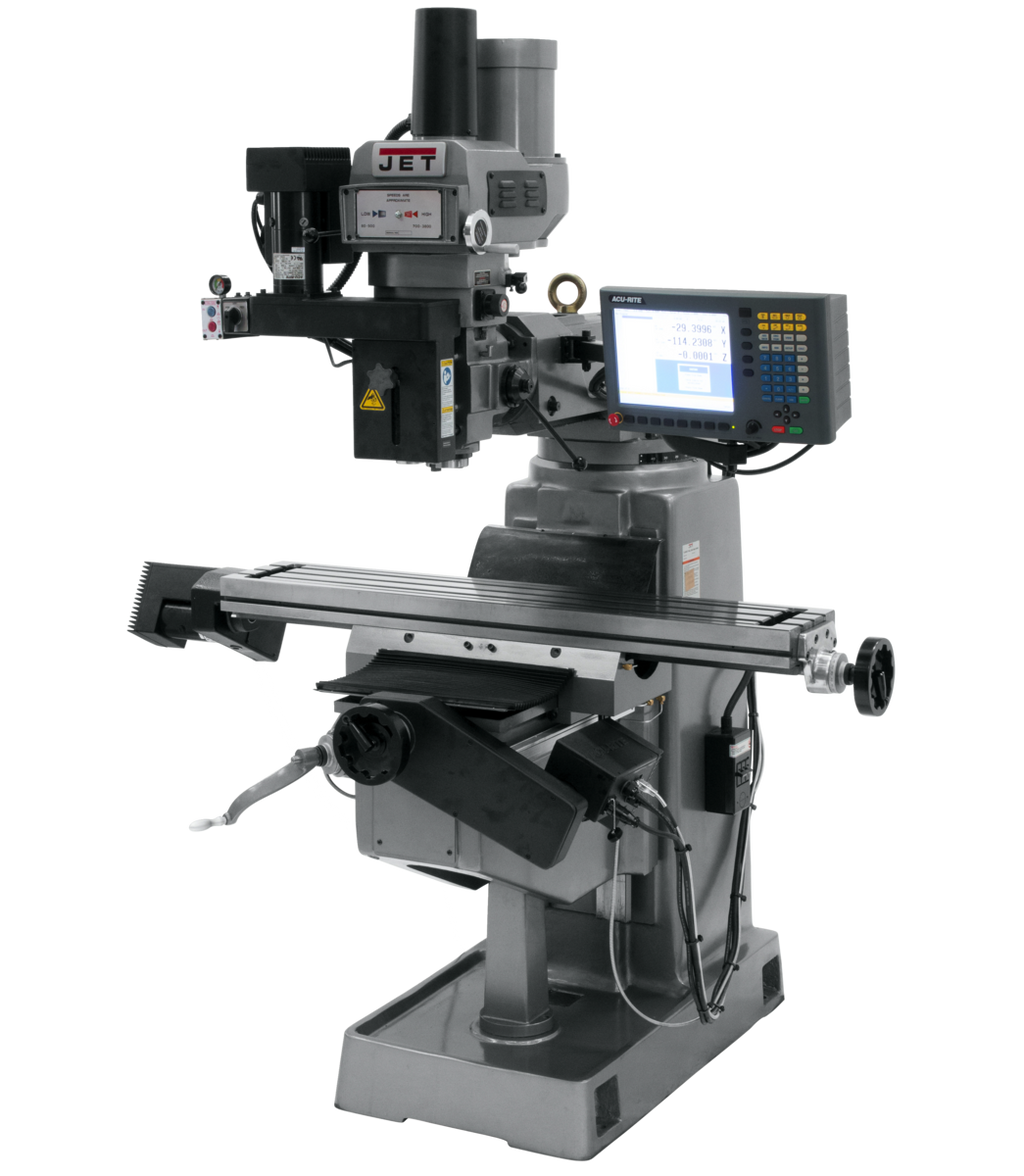

JET JTM-4VS Mill with 3-Axis ACU-RITE G-2 MILLPWR CNC and Air Powered Draw Bar is a professional-grade vertical milling machine from JET, engineered for machinists and shops that demand precision, repeatability, and the efficiency of digital CNC automation. Built on a Meehanite-cast frame and paired with the ACU-RITE MILLPWR G2 3-axis CNC control system, this mill delivers accurate, consistent results across a wide range of machining operations - all backed by the industry-leading JET Two Year Warranty.
Key Features
- Factory-installed ACU-RITE MILLPWR G2 3-axis CNC package for precise digital automation and enhanced operator control
- Meehanite cast construction provides superior rigidity, vibration damping, and long-term dimensional stability
- Pneumatic (air-powered) draw bar speeds up tool changes and reduces operator fatigue during high-volume production
- Wide spindle speed range of 60 - 4,200 RPM accommodates a broad variety of materials and cutting tools
- 3 HP, 230/460V, 3-phase motor delivers ample power for demanding milling tasks
- Generous 9 x 49 in. table with 34 in. longitudinal travel and 12 in. cross travel for handling large workpieces
- R-8 spindle taper with collet capacity from 1/8 to 7/8 in. for broad tooling compatibility
- 5 in. spindle travel and 3-3/8 in. quill diameter for precise depth control
- Quill down feed rates of .0015, .003, and .006 IPR for fine finishing and aggressive material removal
- 14-1/2 in. knee travel and 13-3/8 in. ram travel provide flexible workpiece positioning
- Backed by the JET Two Year Warranty for peace of mind on every job
Specifications
- Stock Number: 690949
- CNC Package: ACU-RITE MILLPWR G2
- Number of Axis: 3
- Style (Type): CNC
- Motor: 3 HP, 230/460V, 3Ph
- Range of Spindle Speeds (RPM): 60 - 4,200
- Spindle Taper: R-8
- Spindle Travel (In.): 5
- Quill Diameter (In.): 3-3/8
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Collet Capacity: 1/8 - 7/8
- Table Size (L x W) (In.): 9 x 49
- Table Longitudinal Travel (In.): 34
- Table Cross Travel (In.): 12
- T-Slot Centers (In.): 2-1/2
- Travel of Knee (In.): 14-1/2
- Travel of Ram (In.): 13-3/8
- Distance Spindle to Column, Max. (In.): 19
- Max Distance Spindle to Table (In.): 17-1/2
- Power Draw Bar: Pneumatic
- Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
- Weight (Lbs.): 2420
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What CNC control system is included with this mill?
- This mill comes with the ACU-RITE MILLPWR G2 CNC package, factory-installed and configured for 3-axis operation. It provides precise digital automation to improve control, efficiency, and repeatability at the machine.
- What is the spindle speed range, and what types of work does it support?
- The spindle operates from 60 to 4,200 RPM, offering a wide range suitable for everything from slow, heavy cuts in steel to high-speed finishing passes in aluminum and other softer materials. The R-8 spindle taper with collet capacity from 1/8 to 7/8 in. supports a broad selection of tooling.
- How does the pneumatic draw bar benefit the operator?
- The air-powered (pneumatic) draw bar automates the tool-clamping and release process, significantly reducing the time and physical effort required for tool changes compared to manual draw bars - a major productivity advantage in high-volume or repetitive machining environments.
- What warranty is included with this machine?
- The JET JTM-4VS Mill is backed by the industry-leading JET Two Year Warranty, providing coverage and confidence for professional shop use.
