Product Description

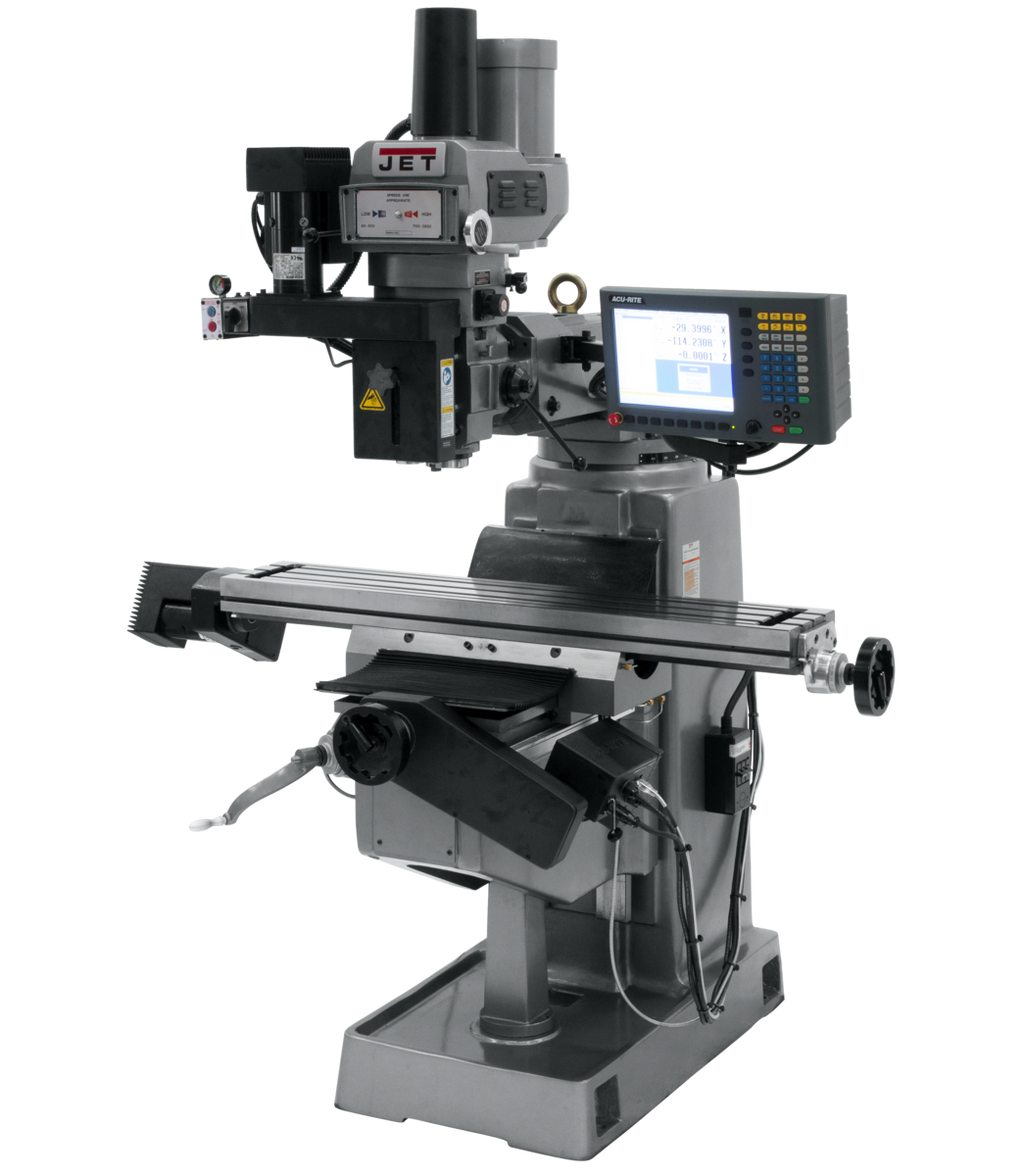

JET JTM-949EVS/230 Mill with 3-Axis ACU-RITE G-2 MILLPWR CNC is a professional-grade Meehanite-cast vertical milling machine from JET, paired with a factory-installed ACU-RITE MILLPWR G2 3-axis CNC control system. Designed for machinists and production shops demanding exceptional precision and repeatable results, this mill combines digital CNC automation with a robust mechanical platform - delivering greater operator control, improved efficiency, and accurate outcomes across a wide range of milling applications. The inverter drive system and emergency stop are located on a swing-away control arm, bringing all major functions within the operator's reach, while automatic lubrication cycles every 30 minutes with a flow of 3 - 6cc to minimize maintenance demands. Backed by the industry-leading JET Two Year Warranty.
Key Features
- Adjustable gibs throughout for precise fit and consistent performance
- Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
- Dual locks on all moveable surfaces for secure, repeatable positioning
- Heavy-duty spindle brake for fast, reliable spindle stopping
- Internal coolant tank built into casting base - no external tank required
- Precision bored and honed milling head for accurate spindle alignment
- Precision hardened and ground ways and table for smooth, long-lasting travel
- Quick spindle feed nut easily adjusts to different depths for efficient setup
- Three-stage power downfeed with automatic stop for controlled, hands-free drilling and boring operations
- Two 115V outlets on electrical box for DRO or powerfeeds
- Factory-installed 3-axis ACU-RITE MILLPWR G2 CNC package for digital automation and enhanced precision
- Automatic lubrication cycles every 30 minutes (3 - 6cc flow) to reduce routine maintenance
- Swing-away control arm positions emergency stop and major controls within easy operator reach
- Meehanite cast construction provides superior vibration dampening and structural stability
Specifications
- Stock Number: 690576
- MPN: JT9-690576
- CNC Package: ACU-RITE MILLPWR G2
- Number of Axis: 3
- Motor: 3HP, 230V, 3Ph
- Inverter Type: Delta, B
- Collet Capacity: 1/8 - 7/8 in.
- Quill Diameter: 3-3/8 in.
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Column Width: 18 in.
- Distance Spindle to Column (Max.): 18-1/8 in.
- Max Distance Spindle to Table: 20-3/4 in.
- Overall Dimensions (L x W x H): 67 x 64 x 86 in.
- Prop 65: Cancer and Reproductive Harm
- Country of Origin: Taiwan
Frequently Asked Questions
- What CNC control system is included with this mill?
- This mill comes factory-installed with the ACU-RITE MILLPWR G2 3-axis CNC control system, providing digital automation and enhanced precision for milling operations.
- How many axes does the CNC system control on this machine?
- The CNC package on this mill operates on 3 axes, giving the operator full digital control over three planes of movement for complex and precise milling work.
- What type of spindle support does this mill use, and why does it matter?
- The spindle is supported by Class 7 bearings, which are specifically selected to provide maximum rigidity during heavy cutting applications - helping maintain accuracy and extending spindle life under demanding loads.
- Does this mill have a built-in coolant system?
- Yes. An internal coolant tank is built directly into the casting base, eliminating the need for a separate external coolant reservoir and contributing to a cleaner, more compact machine footprint.
