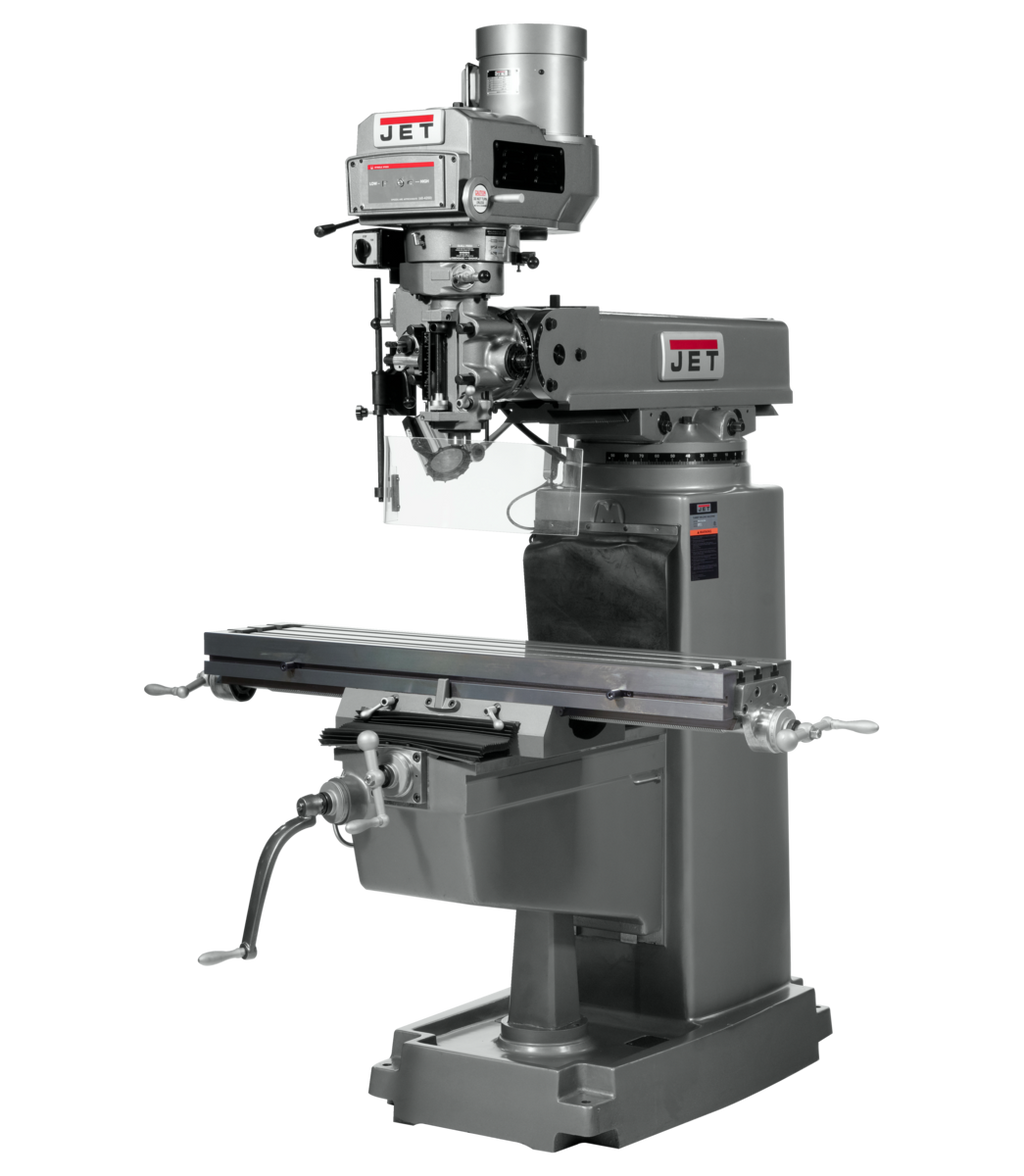

JET JTM-1050VS2 Mill with 3-Axis ACU-RITE 203 DRO (Quill) and X & Y-Axis Powerfeeds is a professional-grade variable speed knee mill engineered by JET for precision milling operations in demanding shop environments. Built on Certified Meehanite castings with a hardened and ground 10" x 50" table, this machine combines a wide spindle speed range, integrated digital readout, and dual-axis powerfeeds to deliver consistent, high-accuracy results across a broad range of milling applications. High precision Class 7 bearings support the spindle, and a three-stage power downfeed with automatic stop makes operation straightforward and repeatable. The JET JTM-1050VS2 is backed by the industry-leading JET Two Year Warranty.

Key Features

• Adjustable gibs throughout for precise fit and long-term accuracy
• Chrome lead screws on X and Y axis for smooth, corrosion-resistant operation
• Chrome-plated motor shaft with bearing support at end for enhanced durability and stability
• Hardened and ground square vertical knee ways and cross ways for rigid, accurate movement
• Heavy duty motor drive delivers consistent power under load
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Large diameter quill is chromed for smooth travel and extended wear resistance
• One shot lubrication system for easy, efficient maintenance of all critical wear surfaces
• Spindle head is internally cooled to maintain operating temperatures during extended use
• Tolerance test sheet included for verified out-of-box accuracy
• Certified Meehanite castings for exceptional rigidity and vibration damping
• Precision bored and honed milling head ensures quality cuts
• Three-stage power downfeed with automatic stop for repeatable depth control
• ACU-RITE 203 3-Axis DRO (Quill) for precise positional readout during machining
• X and Y-Axis powerfeeds for reduced operator fatigue and improved surface finish consistency
• High precision Class 7 bearings support the spindle for superior accuracy
• Variable spindle speed range from 70 to 3,800 RPM suits a wide variety of materials and operations

Specifications

• MPN: JT9-690159
• Country of Origin: Taiwan
• Style (Type): Variable Speed R8
• Motor: 3 HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper: R-8
• Spindle Travel (In.): 5
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Number of Axis: 3 (Quill)
• Powerfeed: X and Y-Axis
• Table Longitudinal Travel (In.): 35
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column, Max. (In.): 26
• Max Distance Spindle to Table (In.): 19
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Prop 65: Cancer and Reproductive Harm

What's Included

• ACU-RITE 203 3-Axis DRO (Quill) pre-installed
• X-Axis powerfeed
• Y-Axis powerfeed
• Tolerance test sheet

Frequently Asked Questions

What spindle taper does the JET JTM-1050VS2 use?

The JTM-1050VS2 uses an R-8 spindle taper, which is a widely adopted standard in knee mill tooling and compatible with a broad range of collets, end mill holders, and accessories. The collet capacity range is 1/8 to 7/8 inch.

Does this mill include a coolant pump?

The JTM-1050VS2 features an internal coolant tank built into the base for use with a coolant system; however, the coolant pump is not included and must be purchased separately.

What does the one shot lubrication system do?

The one shot lubrication system allows the operator to lubricate all critical wear surfaces - including the ways, lead screws, and gibs - with a single action, ensuring consistent maintenance and reducing the time required for routine upkeep.

What is the full spindle speed range, and how is it controlled?

The JTM-1050VS2 offers a variable spindle speed range from 70 to 3,800 RPM, giving operators the flexibility to machine a wide variety of materials at optimal cutting speeds. The variable speed drive allows smooth speed adjustment without the need to change belt positions for every speed setting.
