Product Features
Product Description
JET GH-1440-1 Geared Head Lathe with Acu-Rite 203 DRO and Taper Attachment by JET is a heavy-duty geared head engine lathe engineered for machinists and production shops demanding precision, durability, and versatile threading capability. Weighing over one ton and built with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this lathe delivers the ultimate working durability for demanding turning operations. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth and quiet operation while maintaining peak performance, and the included Acu-Rite 203 DRO and taper attachment extend its capability even further for exacting work.
Key Features
- Precision induction hardened ground bed-ways for long-term accuracy and wear resistance
- Spindle roller bearings and high-quality steel hardened gears in the headstock for ultimate working durability

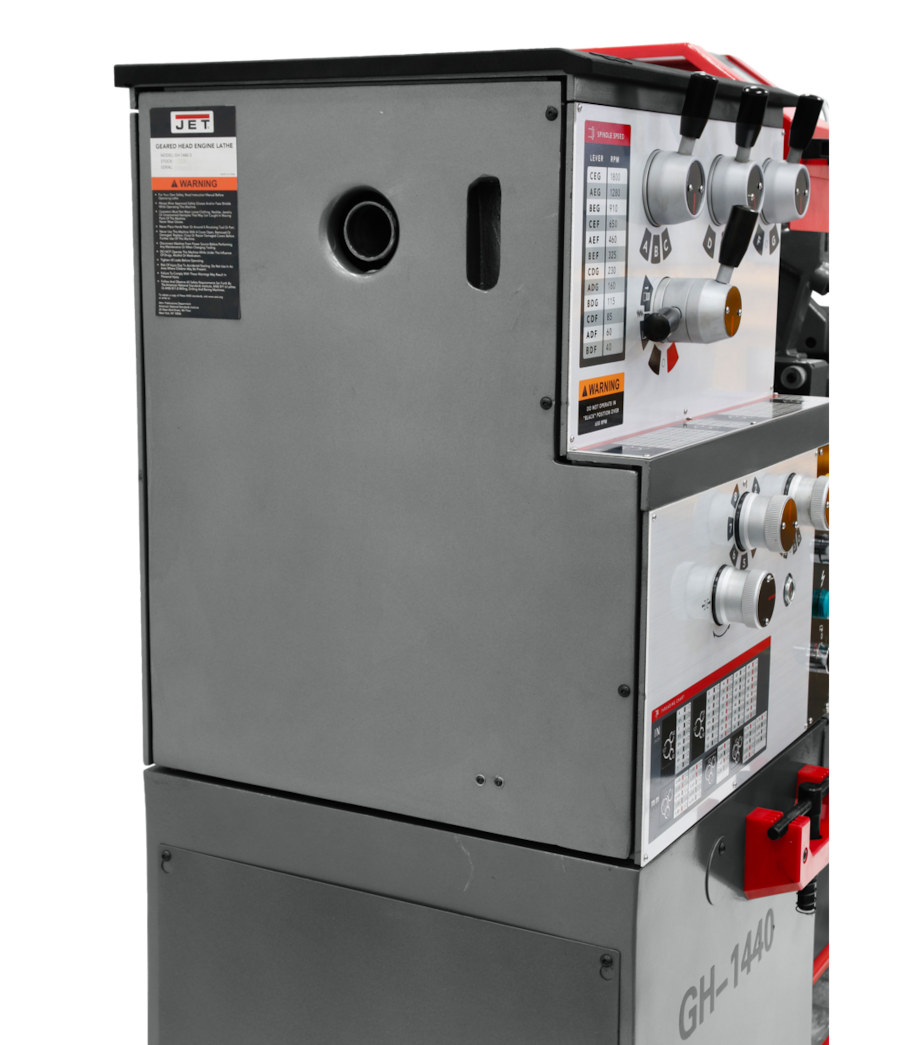

- Enclosed gearbox design provides smooth and quiet operation
- Standard coolant system and lead screw cover maintain peak performance
- Compound and cross slide have backlash elimination for precise cuts
- Front removable chip tray keeps the work area clean and accessible
- Full length splash guard protects the operator and surrounding area
- Inch-metric dials are standard for versatile measurement capability
- Independent lead screw and feed rod for flexible machining operations
- Safety on/off switch for convenient and secure operation
- Spindle actuation control is apron mounted for easy operator access
- Spindle jog button for easy gear engagement and spindle inching
- Splined, T-keyed shafts are utilized for robust power transmission

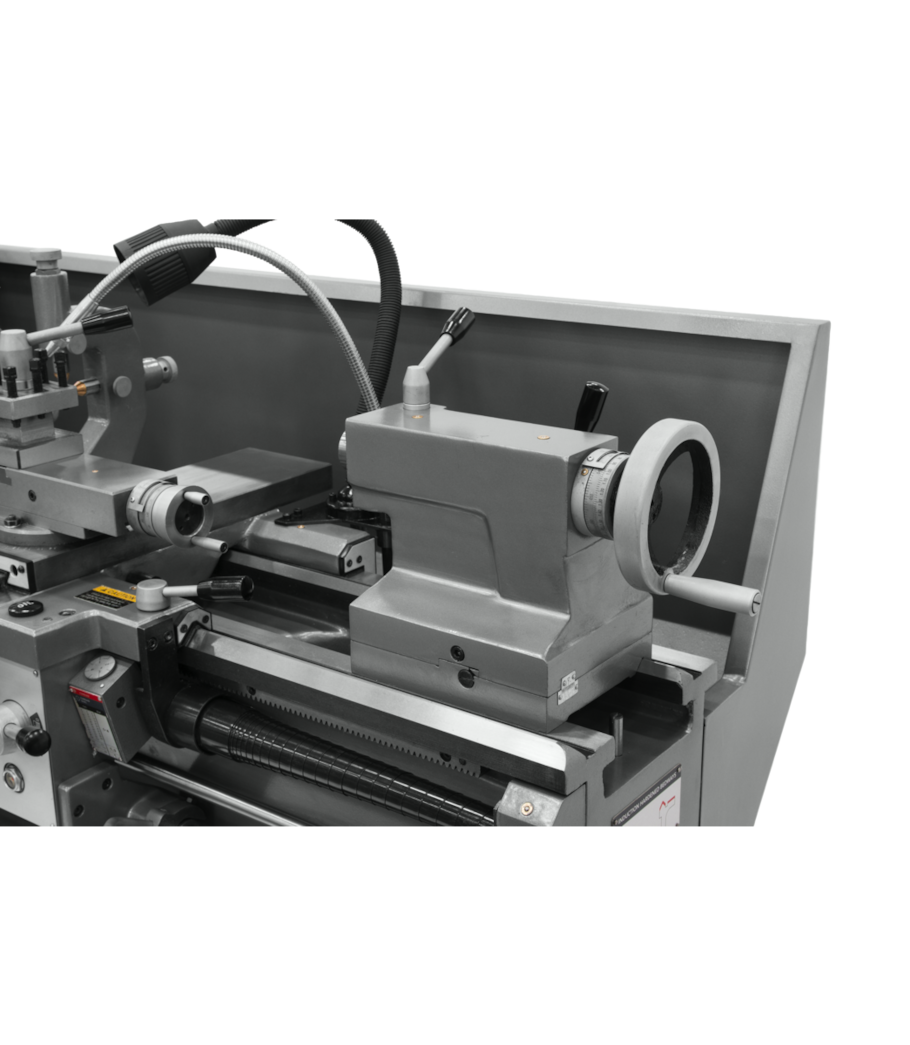

- Tailstock may be offset for turning taper
- Emergency stop within easy reach of the operator
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key when safely docked
Specifications
- MPN: JT9-323375
- Stock Number: 323375
- Motor: 3HP, 230V, 1PH
- Number of Spindle Speeds: 12
- Carriage Travel: 37-1/2 in.
- Compound Slide Travel: 3-1/2 in.
- Length of Gap: 9-3/8 in.
- Max Tool Size: 5/8 x 5/8 in.
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Range of Inch Threads: 4-112 TPI
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Longitudinal Feeds: 0.0012-0.0294 IPR
- Range of Cross Feeds: 0.0004-0.0103 IPR
- Overall Dimensions (L x W x H): 74-4/5 x 28 x 46 in.
- Prop 65: Cancer and Reproductive Harm
- Country of Origin: China
Frequently Asked Questions
- Does this lathe support both inch and metric threading?
- Yes. Inch-metric dials are standard, and the lathe offers 40 inch threads ranging from 4-112 TPI as well as 23 metric threads, giving machinists broad threading versatility in a single machine.
- How does the backlash elimination on the compound and cross slide benefit machining accuracy?
- The compound and cross slide backlash elimination feature reduces unwanted play in the feed mechanism, allowing for more precise and repeatable cuts - a critical advantage when working to tight tolerances.
- Can this lathe perform taper turning?
- Yes. In addition to the included taper attachment, the tailstock may be offset for turning taper, providing two methods for producing tapered workpieces depending on the application and required taper length.
- What safety features are built into this lathe?
- This lathe includes a safety on/off switch, an emergency stop within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked, helping to reduce the risk of accidents during operation.
