Product Features
Product Description
JET GH-1440-3 Geared Head Lathe with 203 DRO, Collet Closer & Taper Attachment is a heavy-duty, professional-grade engine lathe from JET engineered for machinists who demand precision, durability, and versatile threading capability. Weighing over one ton and built on precision induction hardened ground bed-ways, this 3HP three-phase lathe delivers smooth, quiet operation and long-term reliability across a full range of turning, threading, and taper work.
Key Features
- Precision induction hardened ground bed-ways and spindle roller bearings for superior accuracy and long-term durability

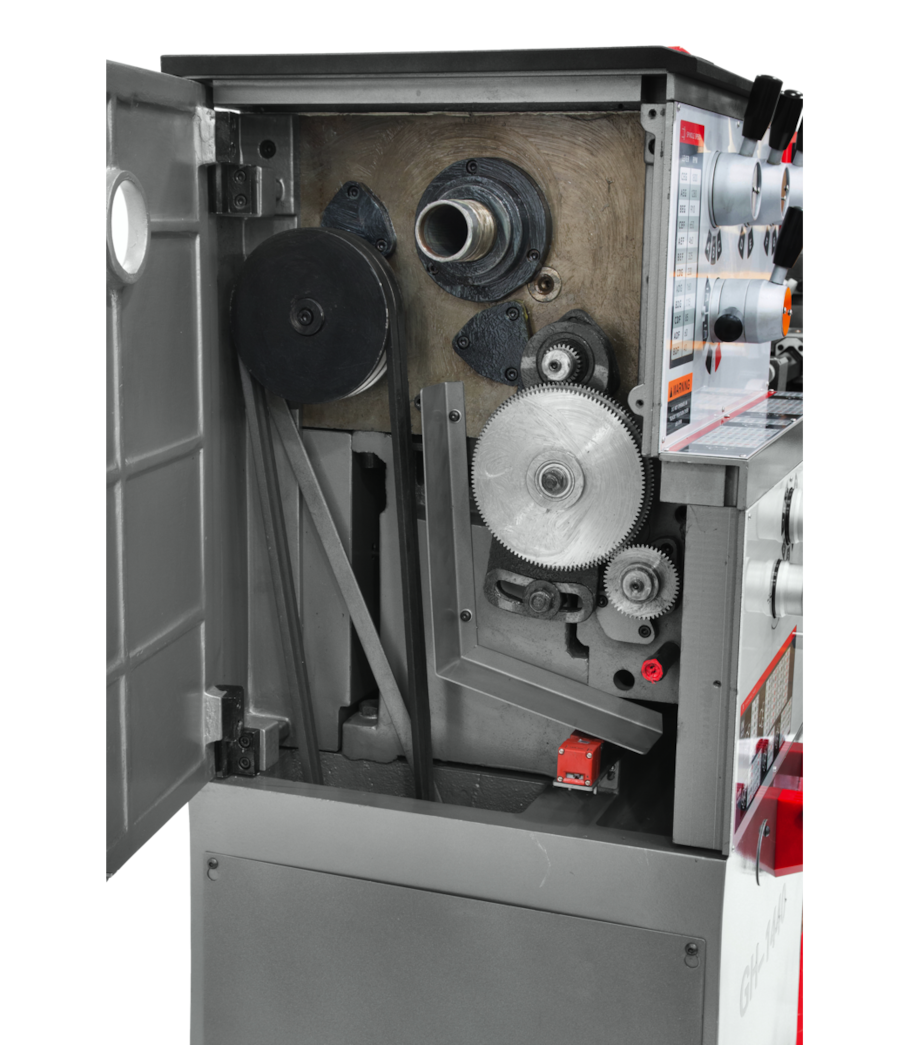

- High-quality steel hardened gears in the headstock ensure ultimate working durability
- Enclosed gearbox design provides smooth and quiet operation while maintaining peak performance
- Compound and cross slide have backlash elimination for precise, repeatable cuts
- Independent lead screw and feed rod for enhanced operational flexibility
- Splined, t-keyed shafts are utilized throughout for robust power transmission
- Spindle actuation control is apron mounted for convenient, ergonomic access
- Spindle jog button for easy gear engagement and spindle inching
- Inch-metric dials are standard, supporting both measurement systems without additional tooling

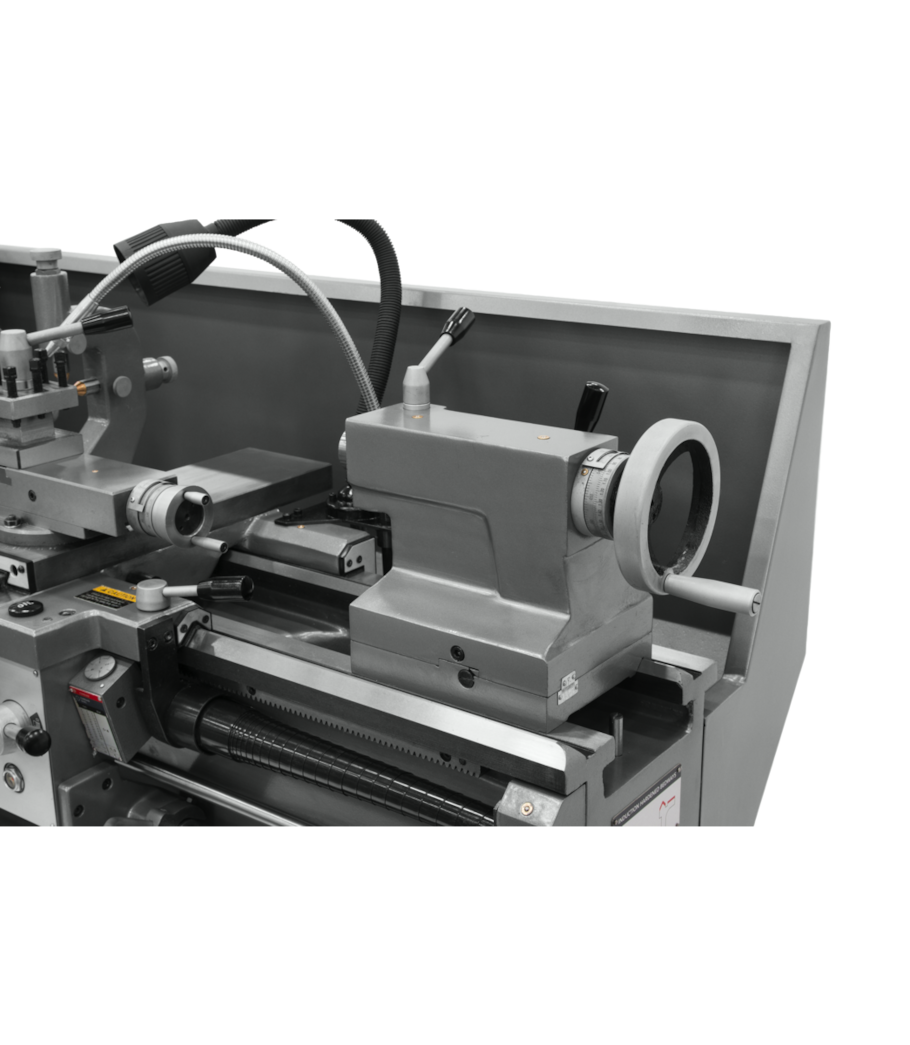

- Tailstock may be offset for turning taper
- Front removable chip tray for fast, easy cleanup
- Full length splash guard to protect the operator and keep the work area clean
- Safety on/off switch for quick, accessible emergency response
- Standard coolant system and lead screw cover maintain peak performance
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key when safely docked
Specifications
- MPN: JT9-323408
- Stock Number: 323408
- Motor: 3HP, 230/460V, 3PH
- Carriage Travel: 37-1/2 in.
- Compound Slide Travel: 3-1/2 in.
- Length of Gap: 9-3/8 in.
- Max Tool Size: 5/8 x 5/8 in.
- Number of Spindle Speeds: 12
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Inch Threads: 4-112 TPI
- Range of Longitudinal Feeds: 0.0012-0.0294 IPR
- Range of Cross Feeds: 0.0004-0.0103 IPR
- Overall Dimensions (L x W x H): 74-4/5 x 28 x 46 in.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What power supply is required to operate this lathe?
- This lathe is equipped with a 3HP motor rated at 230/460V, 3-phase power. A compatible three-phase electrical supply must be available at the installation site before use.
- Does this lathe support both inch and metric threading?
- Yes. Inch-metric dials are standard on this lathe. It supports 40 inch thread pitches ranging from 4-112 TPI and 23 metric threads, making it suitable for a wide variety of threading applications in both measurement systems.
- How is taper turning accomplished on this lathe?
- The lathe includes a taper attachment, and the tailstock may be offset for turning taper, providing two complementary methods for producing precision tapered workpieces.
- What safety features are built into this lathe?
- This lathe includes a safety on/off switch for quick shutoff access, a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked, and an emergency stop within easy reach of the operator. A full length splash guard and front removable chip tray also contribute to a safer working environment.
