Product Features
Product Description

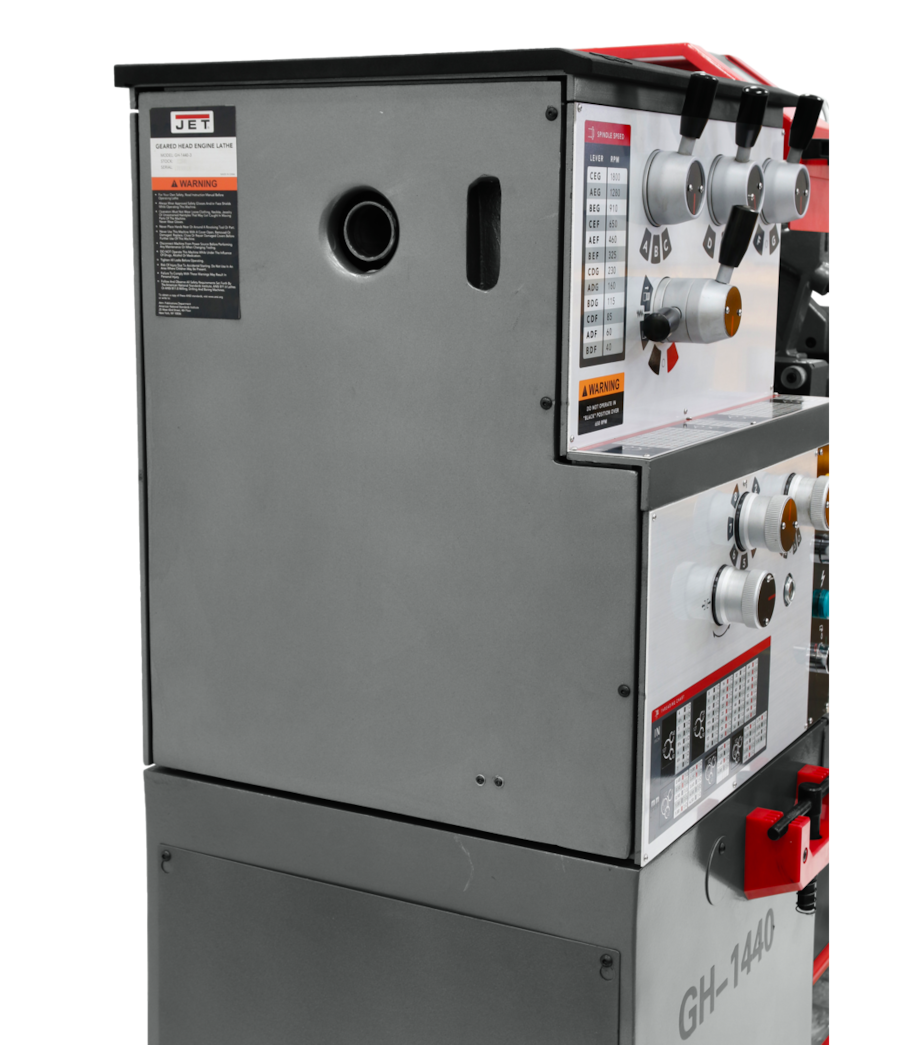

The JET GH-1440-1 Geared Head Lathe with Newall DP700 DRO, Collet Closer, and Taper Attachment by JET delivers professional-grade precision turning capability for demanding machine shop environments. Weighing over one ton and built with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this geared head engine lathe is engineered for ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth, quiet operation while maintaining peak performance, and the patented Electronic Chuck Key Docking Station prevents startup without the chuck key when safely docked - keeping operators protected during every cycle.
Key Features
- Compound and cross slide have backlash elimination for improved accuracy and repeatability
- Front removable chip tray for fast, convenient cleanup
- Full length splash guard to contain coolant and chips during operation
- Inch-metric dials are standard, allowing seamless switching between measurement systems
- Independent lead screw and feed rod for greater versatility in threading and feeding operations
- Safety on/off switch with emergency stop within easy reach of the operator
- Spindle actuation control is apron mounted for convenient, ergonomic access
- Spindle jog button for easy gear engagement and spindle inching
- Splined, T-keyed shafts are utilized throughout for robust power transmission

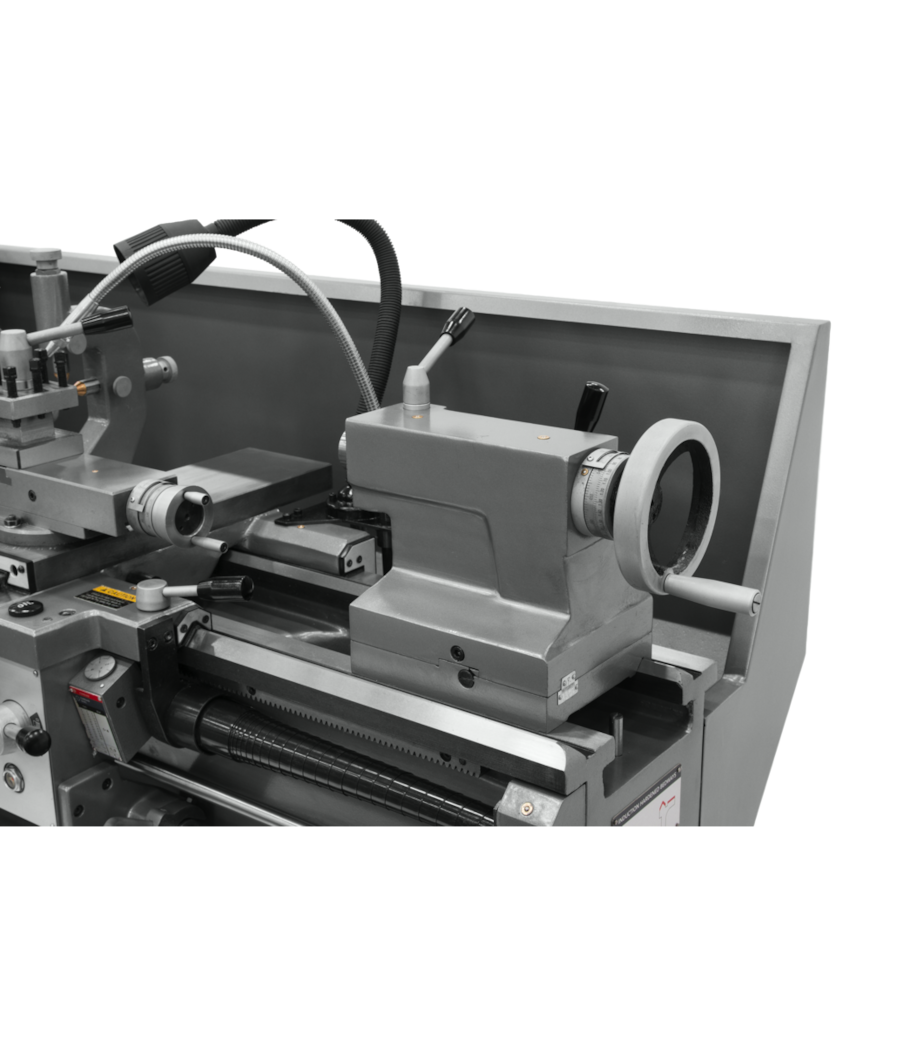

- Tailstock may be offset for turning taper, adding flexibility to the range of workpieces this lathe can handle
- Precision induction hardened and ground bed-ways for long-term accuracy and wear resistance
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked
- Standard coolant system supports continuous production use
- Lead screw cover maintains a clean, protected drive environment
Specifications
- MPN: JT9-323385
- Stock Number: 323385
- Motor: 3HP, 230V, 1PH
- Number of Spindle Speeds: 12
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Inch Threads (TPI): 4-112
- Range of Longitudinal Feeds (IPR): 0.0012-0.0294
- Range of Cross Feeds (IPR): 0.0004-0.0103
- Carriage Travel: 37-1/2 in.
- Compound Slide Travel: 3-1/2 in.
- Length of Gap: 9-3/8 in.
- Max Tool Size: 5/8 x 5/8 in.
- Overall Dimensions (L x W x H): 74-4/5 x 28 x 46 in.
- Prop 65: Cancer and Reproductive Harm
- Country of Origin: China
Frequently Asked Questions
- Does this lathe support both inch and metric threading?
- Yes. Inch-metric dials are standard, and the lathe offers 40 inch thread options spanning 4-112 TPI as well as 23 metric thread options, making it highly versatile for both measurement systems.
- What safety features are included on this lathe?
- The lathe includes a safety on/off switch with an emergency stop within easy reach of the operator, a spindle jog button for safe gear engagement and spindle inching, and a patented Electronic Chuck Key Docking Station that prevents the machine from starting up unless the chuck key is safely docked.
- Can this lathe cut tapers?
- Yes. The tailstock may be offset for turning taper, and the machine also comes equipped with a taper attachment, providing two methods for producing tapered workpieces.
- How does backlash elimination on the compound and cross slide benefit precision work?
- Backlash elimination on both the compound and cross slide minimizes unwanted play in the feed mechanisms, resulting in more accurate and repeatable cuts - especially important when making fine finishing passes or holding tight dimensional tolerances.
