Product Features
Product Description

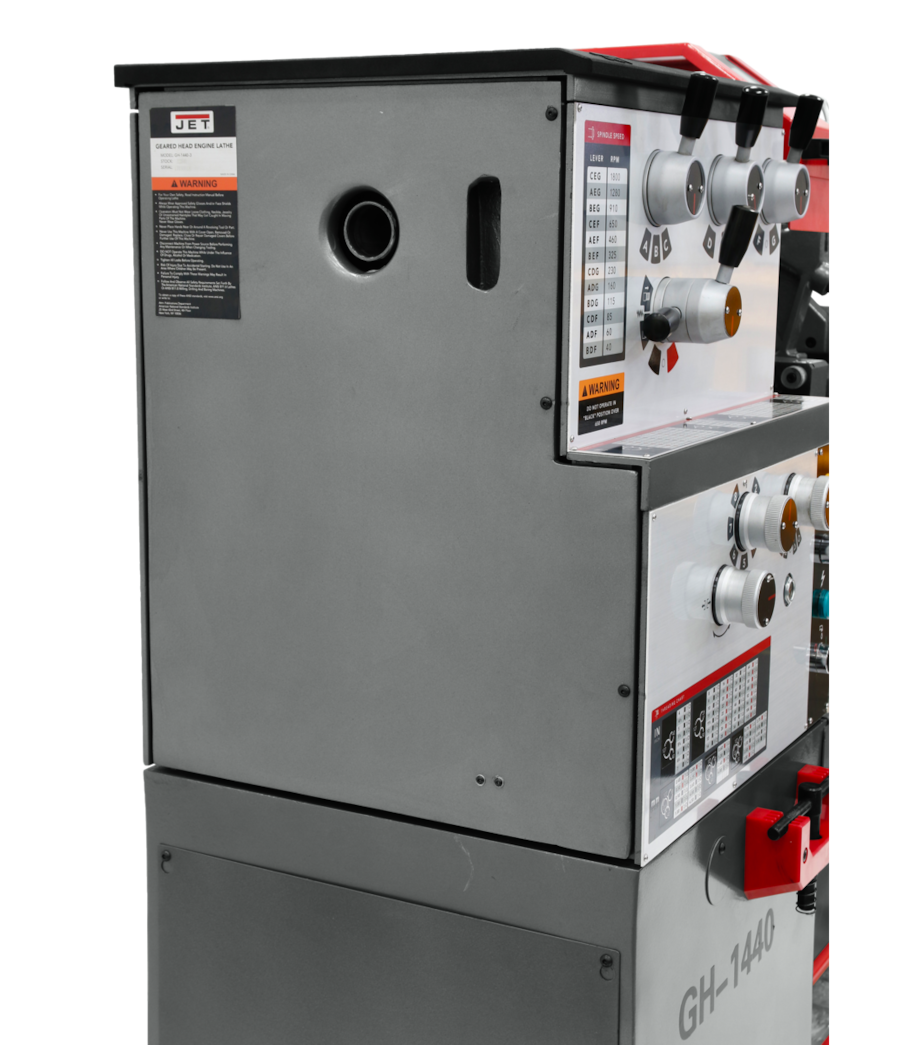

The JET GH-1440-3 Geared Head Lathe with Collet Closer from JET is a heavy-duty 3-phase engine lathe engineered for demanding metalworking operations that require precision, reliability, and long-term durability. Weighing over one ton and built with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this machine delivers the ultimate working durability for serious shop environments. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth and quiet operation while maintaining peak performance, and a patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked - keeping operators protected every step of the way.
Key Features
- Precision induction hardened ground bed-ways for long-term accuracy and wear resistance
- Spindle roller bearings and high-quality steel hardened gears in the headstock for ultimate working durability
- Enclosed gearbox design delivers smooth and quiet operation
- Standard coolant system and lead screw cover maintain peak performance
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked
- Emergency stop within easy reach of the operator
- Compound and cross slide have backlash elimination for precise, repeatable cuts
- Front removable chip tray for easy cleanup and reduced downtime
- Full length splash guard to contain coolant and swarf
- Inch-metric dials are standard for versatile measurement setups
- Independent lead screw and feed rod for greater operational flexibility
- Safety on/off switch for added operator protection
- Spindle actuation control is apron mounted for convenient operator access
- Spindle jog button for easy gear engagement and spindle inching
- Splined, T-keyed shafts are utilized for robust power transmission

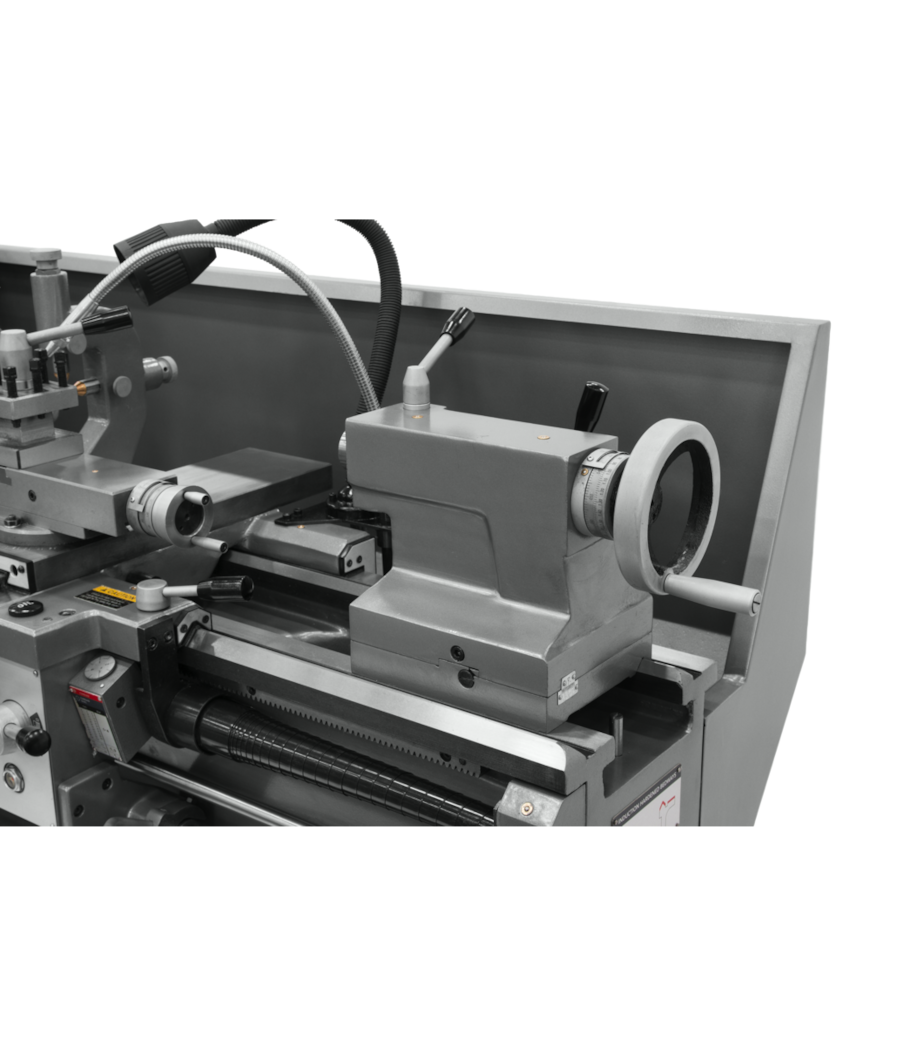

- Tailstock may be offset for turning taper
Specifications
- MPN: JT9-323400
- Stock Number: 323400
- Motor: 3HP, 230/460V, 3PH
- Number of Spindle Speeds: 12
- Carriage Travel: 37-1/2 in.
- Compound Slide Travel: 3-1/2 in.
- Length of Gap: 9-3/8 in.
- Max Tool Size: 5/8 x 5/8 in.
- Number of Inch Threads: 40
- Range of Inch Threads: 4-112 TPI
- Number of Metric Threads: 23
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Longitudinal Feeds: 0.0012-0.0294 IPR
- Range of Cross Feeds: 0.0004-0.0103 IPR
- Overall Dimensions (L x W x H): 74-4/5 x 28 x 46 in.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What power supply is required to run the JET GH-1440-3?
- The GH-1440-3 is powered by a 3HP motor rated at 230/460V, 3-phase. It requires a 3-phase electrical supply, making it suited for industrial and professional shop environments with appropriate electrical infrastructure.
- How many spindle speeds and thread options does this lathe offer?
- The GH-1440-3 provides 12 spindle speeds for versatile material and operation compatibility. It supports 40 inch threads ranging from 4-112 TPI and 23 metric threads, giving machinists broad flexibility for threading operations.
- Does this lathe include safety features to protect the operator?
- Yes. The lathe features a safety on/off switch, an emergency stop within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents startup unless the chuck key is safely docked. These features work together to create a safer operating environment.
- Can the tailstock be adjusted for taper turning, and does the machine support both inch and metric measurements?
- Yes on both counts. The tailstock may be offset for turning taper, expanding the range of workpieces and geometries the machine can handle. Additionally, inch-metric dials are standard, allowing operators to work seamlessly in either measurement system without additional accessories.
