Product Features
Product Description
The JET GH-1440-1 Geared Head Lathe with Collet Closer from JET delivers over one ton of precision machining capability, built around induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for outstanding durability. The enclosed gearbox design, standard coolant system, and lead screw cover work together to ensure smooth, quiet operation at peak performance. A patented Electronic Chuck Key Docking Station prevents startup unless the chuck key is safely docked, and an emergency stop is positioned within easy reach of the operator at all times.
Key Features
- Compound and cross slide have backlash elimination for greater precision and repeatability
- Front Removable Chip Tray for fast, convenient cleanup during and after machining
- Full Length Splash Guard helps contain coolant and chips across the full working envelope
- Inch-metric dials are standard, enabling seamless switching between measurement systems
- Independent lead screw and feed rod for versatile threading and feeding operations
- Safety on/off switch provides reliable operator protection at all times
- Spindle actuation control is apron mounted for convenient access during operation
- Spindle jog button for easy gear engagement and spindle inching
- Splined, t keyed, shafts are utilized for robust and consistent power transmission

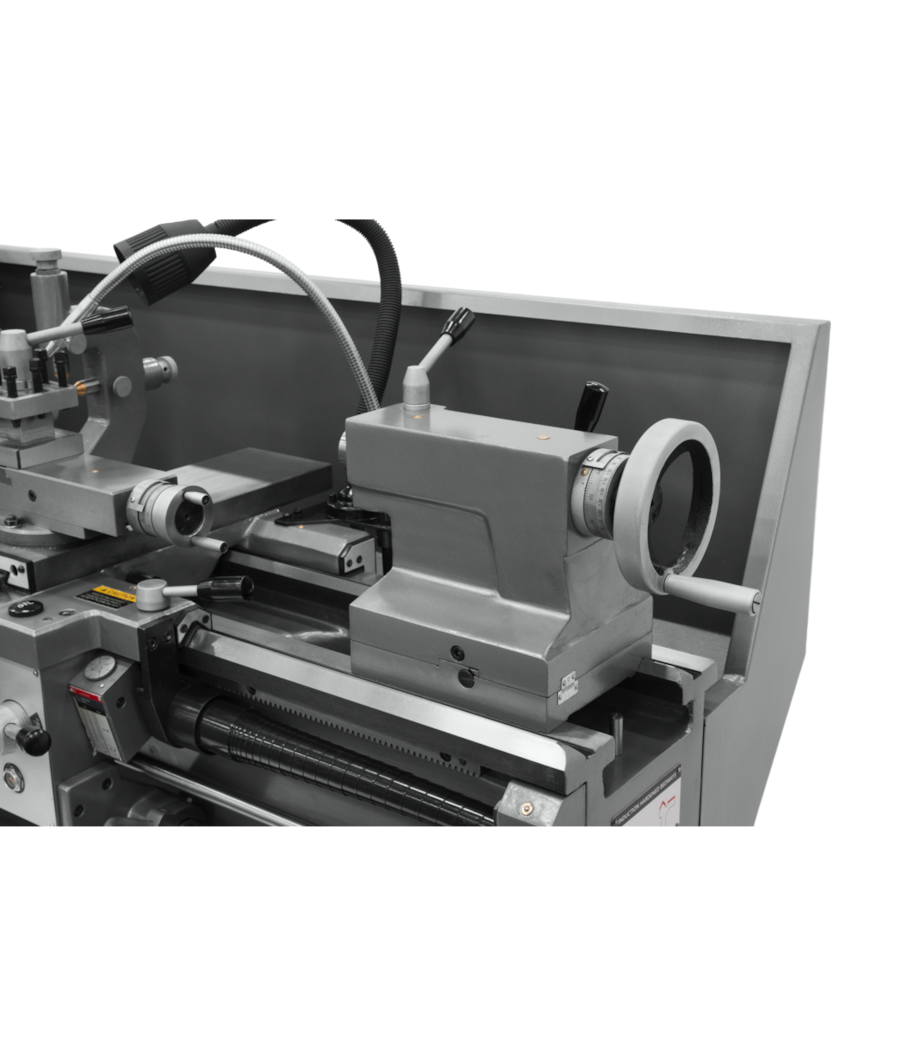

- Tailstock may be offset for turning taper, expanding the range of workpiece geometries achievable
- Precision induction hardened ground bed-ways for long-term accuracy and wear resistance
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked
- Emergency stop within easy reach of the operator

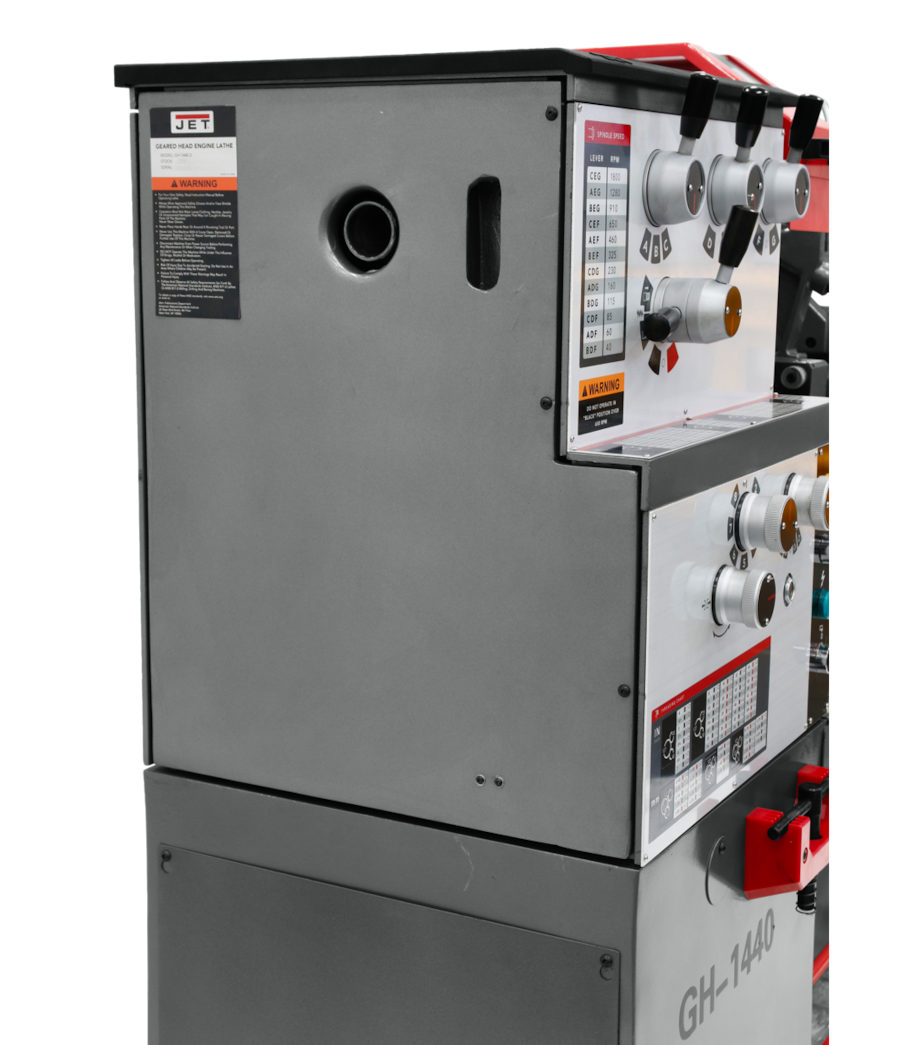

- Enclosed gearbox design for smooth and quiet operation
- Standard coolant system and lead screw cover included
Specifications
- Stock Number: 323372
- MPN: JT9-323372
- Motor: 3HP, 230V, 1PH
- Number of Spindle Speeds: 12
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Inch Threads (TPI): 4-112
- Range of Longitudinal Feeds (IPR): 0.0012-0.0294
- Range of Cross Feeds (IPR): 0.0004-0.0103
- Carriage Travel: 37-1/2 in.
- Compound Slide Travel: 3-1/2 in.
- Length of Gap: 9-3/8 in.
- Max Tool Size: 5/8 x 5/8 in.
- Overall Dimensions (L x W x H): 74-4/5 x 28 x 46 in.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- How many spindle speeds does the GH-1440-1 offer, and does it support both inch and metric threading?
- The GH-1440-1 provides 12 spindle speeds. It fully supports both inch and metric threading - inch-metric dials are standard, with 40 inch thread options covering a range of 4-112 TPI and 23 metric thread options available.
- What safety features are built into this lathe?
- The GH-1440-1 includes a safety on/off switch, an emergency stop positioned within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents the lathe from starting unless the chuck key is safely docked.
- Can this lathe cut tapers, and what power source does it require?
- Yes - the tailstock may be offset for turning taper, allowing the machining of tapered workpieces. The lathe is powered by a 3HP motor requiring a 230V, 1-phase electrical supply.
- What is the carriage travel, and how is backlash managed on the slides?
- The carriage travel is 37-1/2 in. Both the compound and cross slide feature backlash elimination, ensuring precise, repeatable positioning during turning and facing operations.
