Product Description

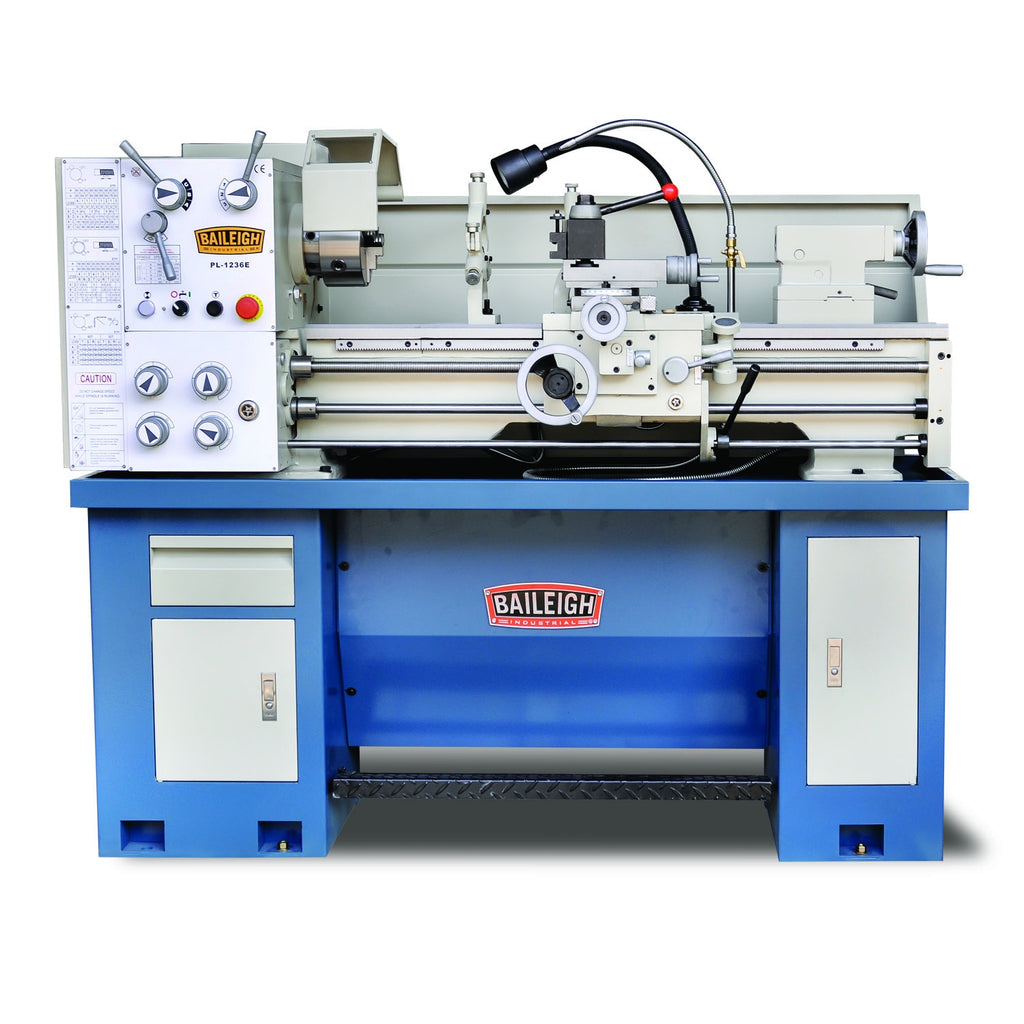

Baileigh Metal Shop Lathe and Gear Head Lathe Machine PL-1236E is an economical gear-head metal lathe from Baileigh, engineered as a perfect choice for schools, hobbyists, and maintenance shops. Built with an integrated gear system and hardened, ground ways, this machine delivers the precision, versatility, and durability that demanding metalworking tasks require - all powered by convenient 220-volt single-phase power.
Key Features
- Integrated gear system allows for taping, turning, and polishing
- All ways are ground and hardened to ensure long life
- Runs on 220-volt single-phase power and 70 to 1,400 rpm variable speed

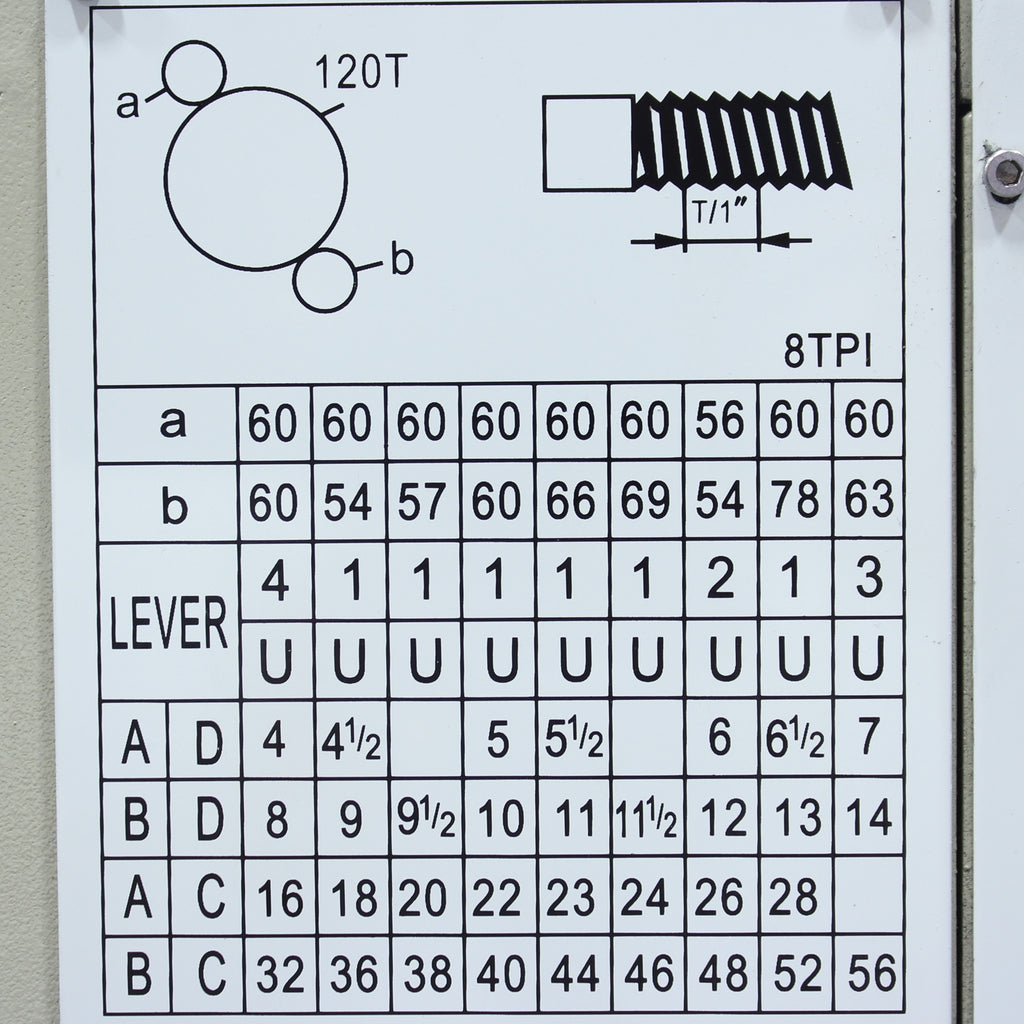

- Capable of standard and metric threading

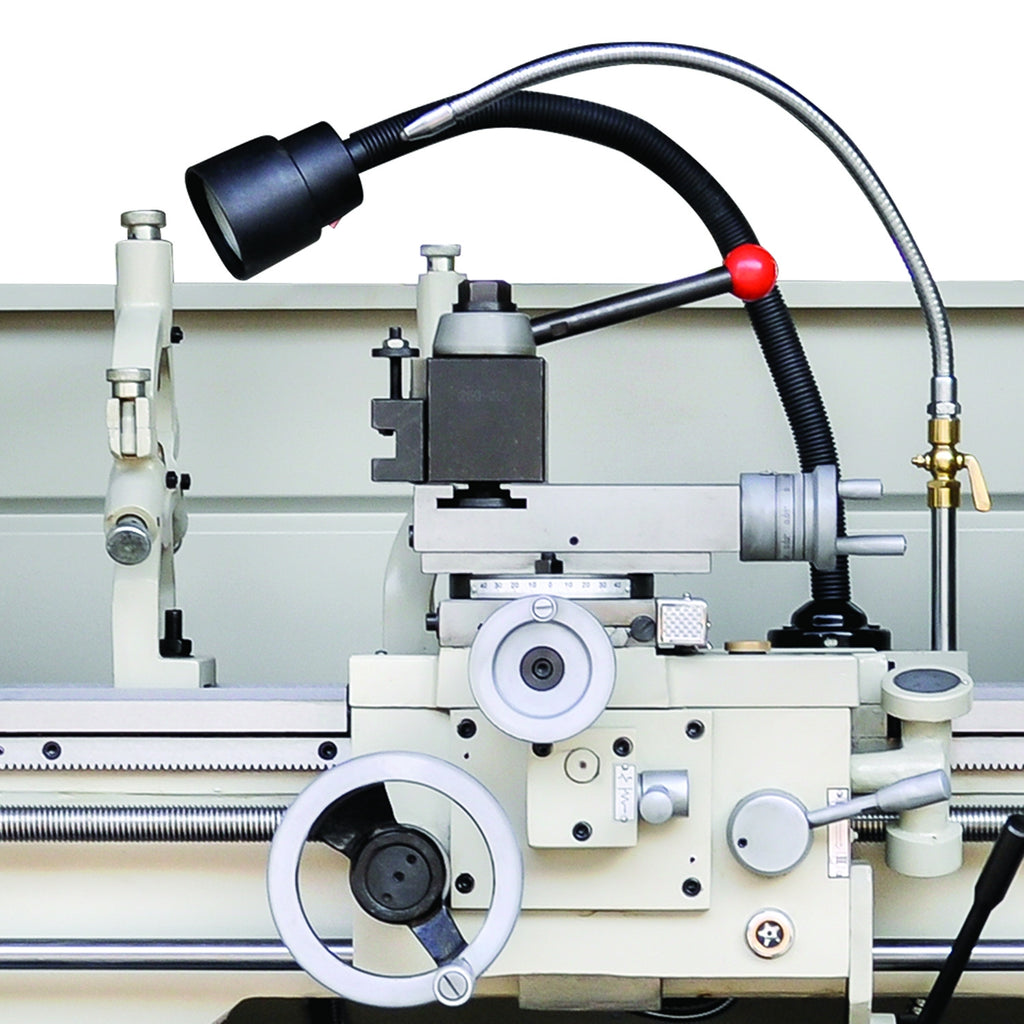

- Quick-change tool post helps you save time

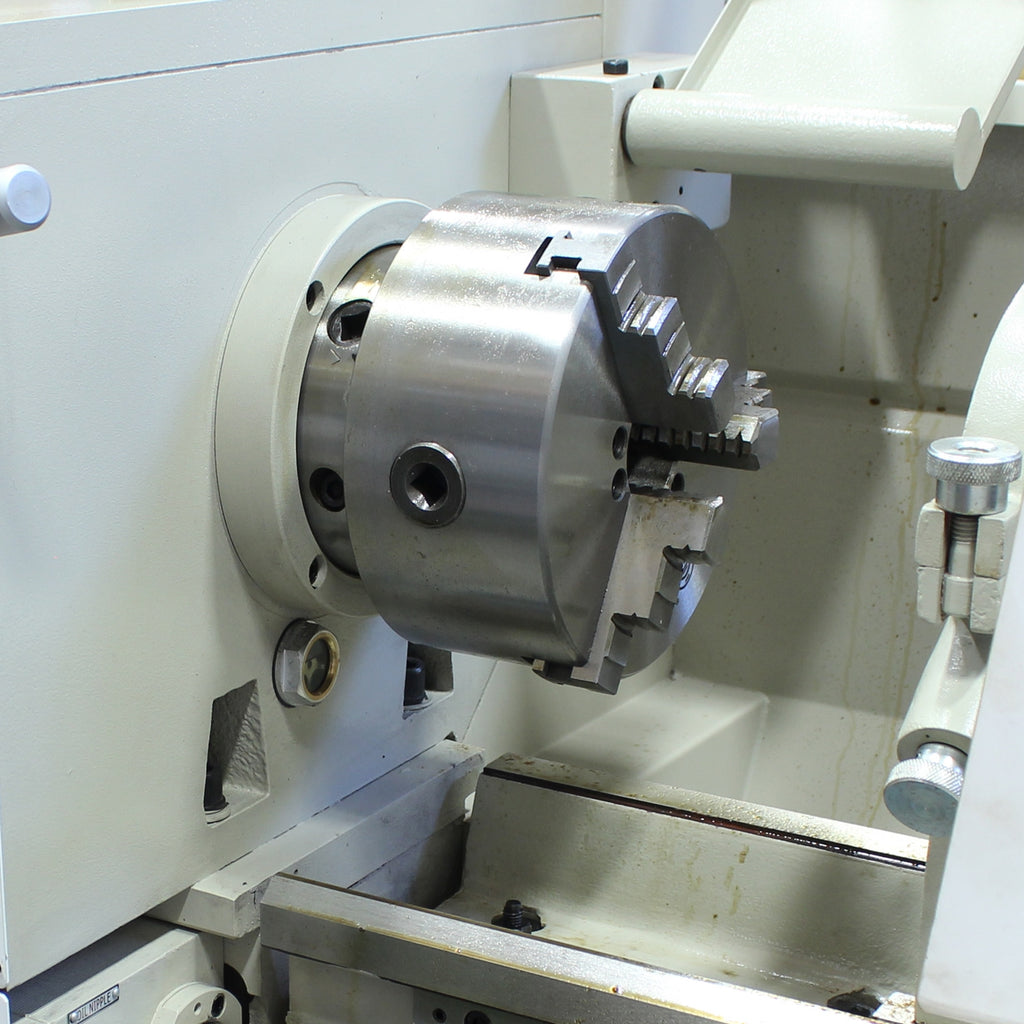

- 3-jaw and 4-jaw chucks can hold both square and rounded materials
- Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy
- Facing plate lets you shape materials that are large but not long - bolt your metal to the plate to keep it square and symmetrical
- Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed
- Foot brake helps keep your shop safe and halogen work light comes standard
Specifications
- MPN: BA9-1016616
- Assembled Dimensions: 69 in. x 44 in. x 64 in.
- Distance Between Centers: 36 in.

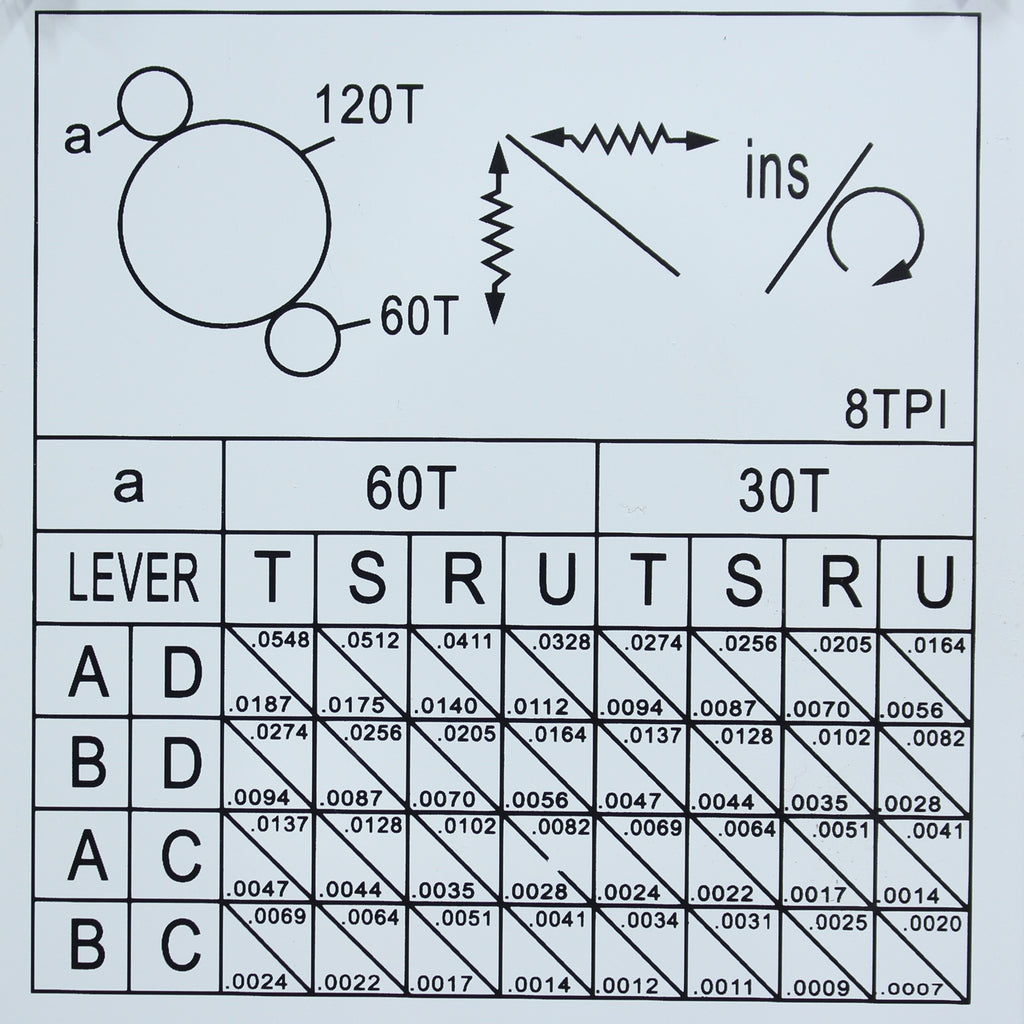

- Leadscrew Thread Pitch: 8 TPI
- Length of Gap: 6 in.

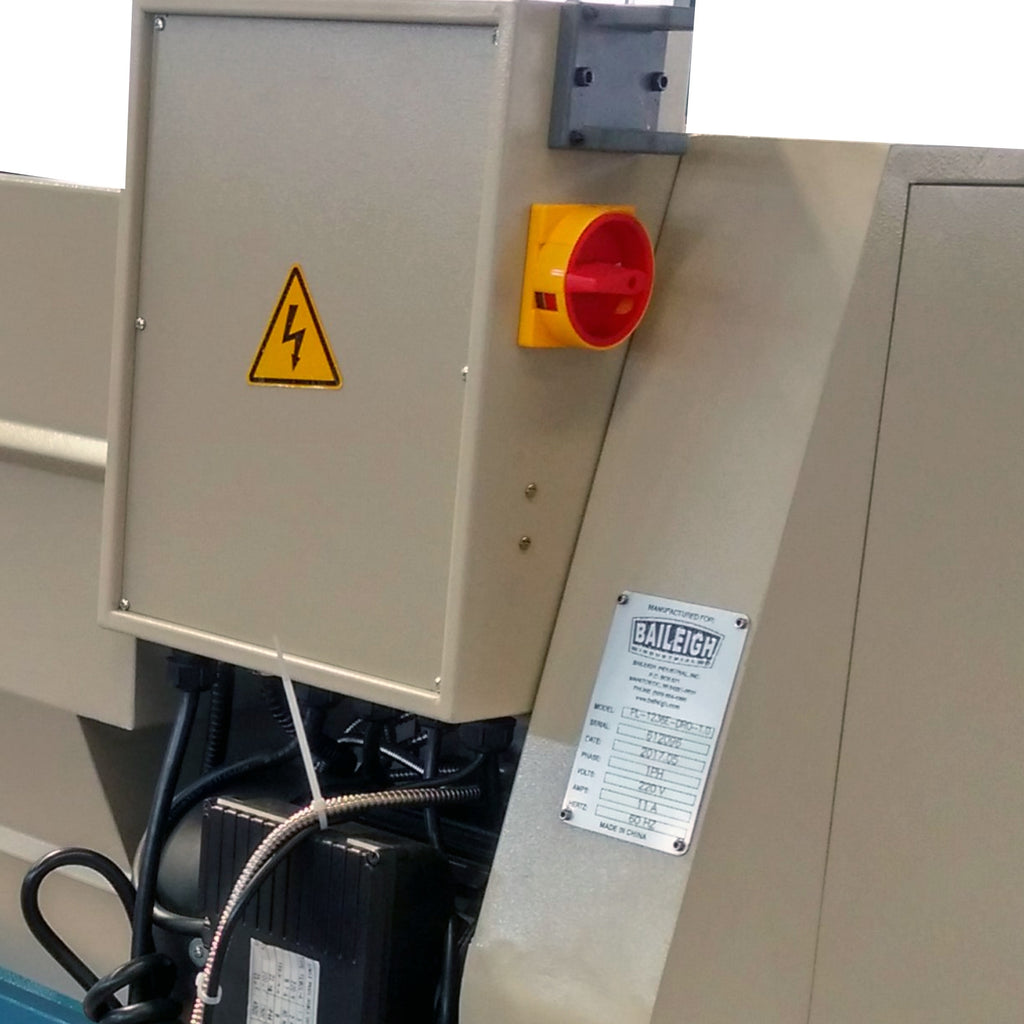

- Motor Phase: Single
- Motor Voltage: 220 V.
- Nose Radius: D1-4 in.
- Quick Change Collet Size: .625 in. x .625 in.

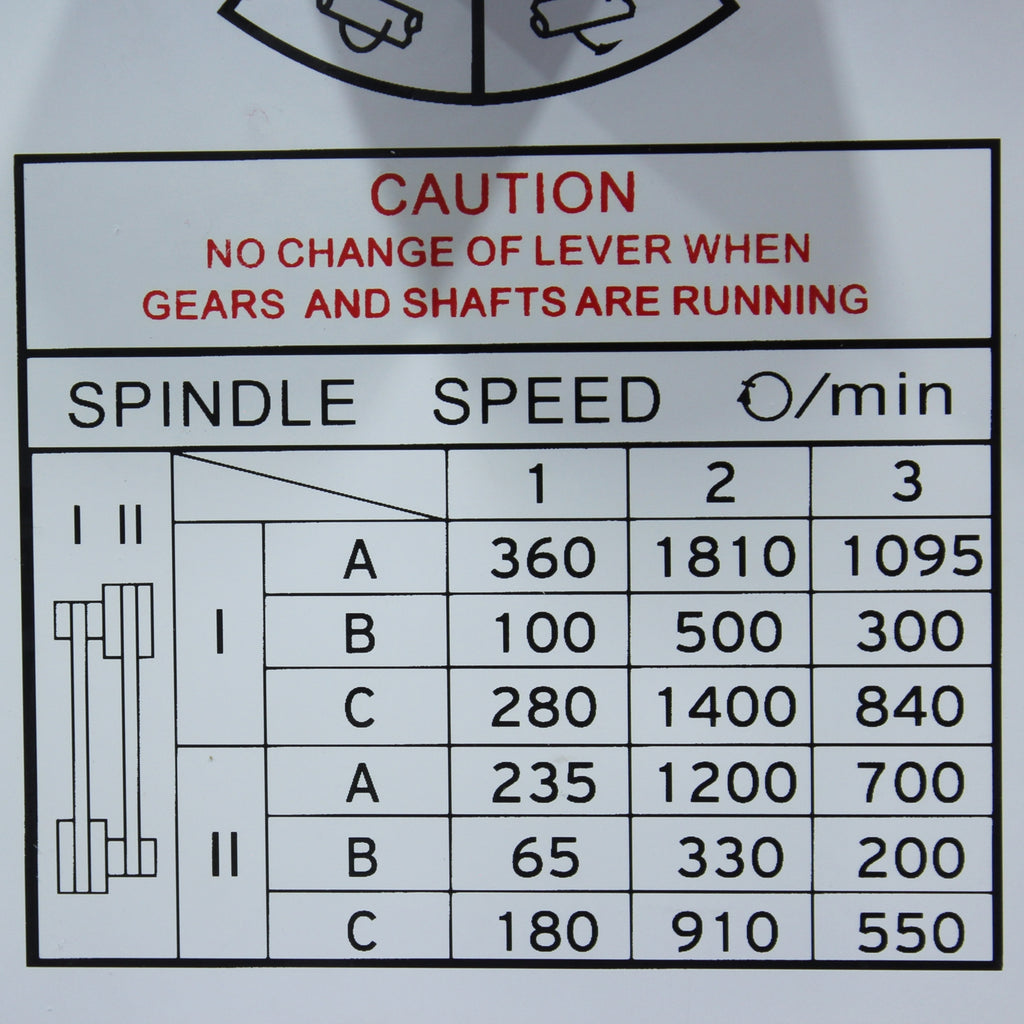

- Speed Range: 70-1,400 RPM
- Country of Origin: China
What's Included
- Quick-change tool post
- 3-jaw chuck
- 4-jaw chuck
- Steady rest
- Follow rest
- Facing plate
- Coolant system (reservoir, pump, and hose)
- Foot brake
- Halogen work light
Frequently Asked Questions
- What power supply does the PL-1236E require?
- The PL-1236E runs on 220-volt single-phase power, making it compatible with standard single-phase electrical service commonly found in shops, schools, and home garages.
- What is the speed range of this lathe, and can it be varied?
- Yes - the PL-1236E features a variable speed range of 70 to 1,400 RPM, allowing you to dial in the appropriate speed for taping, turning, polishing, and threading operations.
- Can this lathe cut both standard and metric threads?
- Yes. The PL-1236E is capable of standard and metric threading, giving you the flexibility to work on a wide variety of projects and part specifications without needing a separate machine.
- What accessories are included to improve accuracy and handle different workpiece shapes?
- The lathe comes with a steady rest and follow rest that brace the shaft and prevent wobbling to ensure high accuracy. It also includes both a 3-jaw chuck and a 4-jaw chuck to hold square and rounded materials, as well as a facing plate for shaping large materials that are not long - bolt your metal to the plate to keep it square and symmetrical.
