Product Description

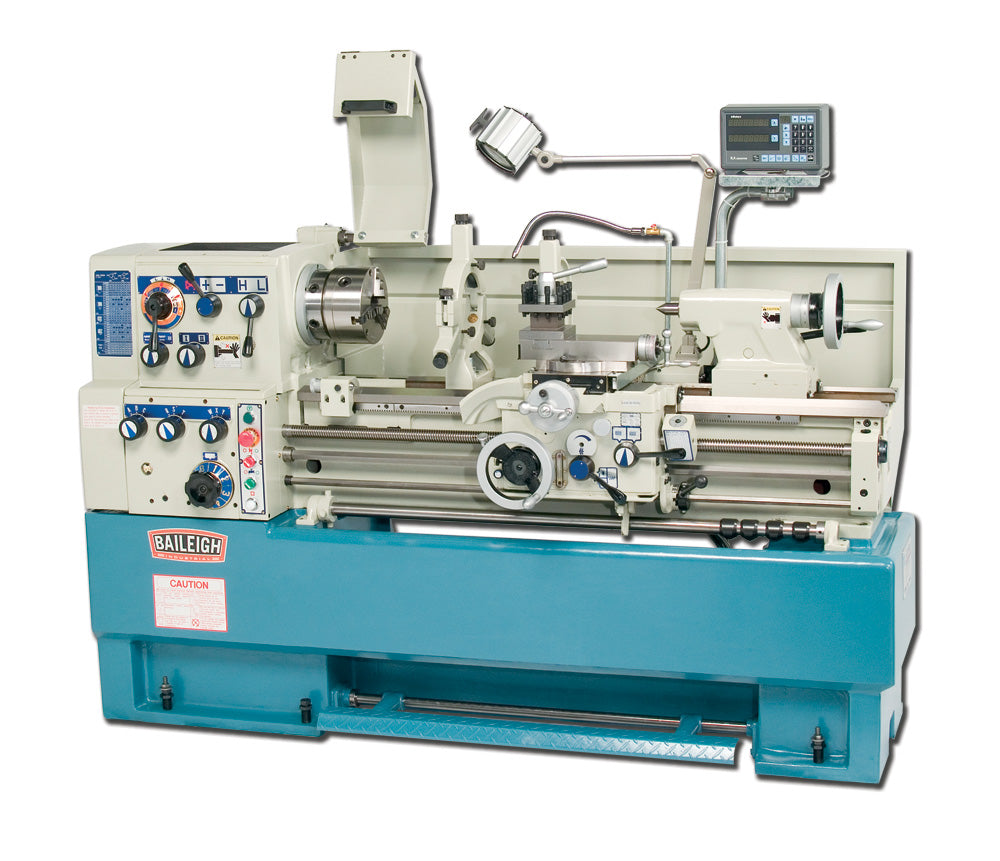

The Baileigh Precision Lathe PL-1640 from Baileigh Industrial is a heavy-duty metal lathe engineered for shops that demand accuracy, rigidity, and repeatability on mid-to-large workpieces. Driven by a 7.5 hp motor and built on a full cast iron base integrated directly into the mainframe, the PL-1640 delivers the structural rigidity and precision tooling features that demanding metalworking environments require - including a factory-installed Mitutoyo DRO straight out of the crate.
Key Features
- 12 speeds from 30-2,000 rpm with a 7.5 hp motor which runs on 220-volt 3-phase power
- Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts with no additional assembly required
- Precision ground and hardened ways will withstand years of use in any metalworking shop
- ..." square indexing tool post with a steady rest and follow rest
- Collar system lets you set stops for repeat parts
- Gap lathe design allows you to remove a section of the slide to fit a slightly larger diameter
- Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market
- Comes standard with 3-jaw chuck, emergency foot brake, and halogen work light
- Headstock chuck guard with automatic safety switch and flood coolant system (with backsplash guard) to prolong machine life
Specifications
- MPN: BA9-1006140
- Brand: Baileigh Industrial
- Motor: 7.5 hp
- Power Requirement: 220-volt, 3-phase
- Spindle Speed Range: 30-2,000 rpm (12 speeds)
- DRO: Factory-installed Mitutoyo digital readout
- Tool Post: ..." square indexing
- Base Construction: Full cast iron, integrated into mainframe
- Lathe Type: Gap lathe
- Country of Origin: Taiwan
What's Included
- 3-jaw chuck
- Emergency foot brake
- Halogen work light
- Steady rest
- Follow rest
- Headstock chuck guard with automatic safety switch
- Flood coolant system with backsplash guard
- Factory-installed Mitutoyo DRO
Frequently Asked Questions
- What power supply does the PL-1640 require?
- The PL-1640 runs on 220-volt 3-phase power and is driven by a 7.5 hp motor, making it suited for shops with an appropriate 3-phase electrical setup.
- Does the Mitutoyo DRO come pre-installed, or does it require assembly?
- The Mitutoyo digital readout (DRO) is factory-installed, so it is ready to use and helps you make precise cuts with no additional assembly required.
- What does the gap lathe design allow you to do?
- As a gap lathe, the PL-1640 allows you to remove a section of the slide to fit a slightly larger diameter workpiece, giving you added flexibility compared to a standard lathe bed design.
- Can the PL-1640 be used for repeat-part production?
- Yes. The collar system on the PL-1640 lets you set stops for repeat parts, enabling consistent, repeatable cuts across production runs without time-consuming re-measurement between each piece.
