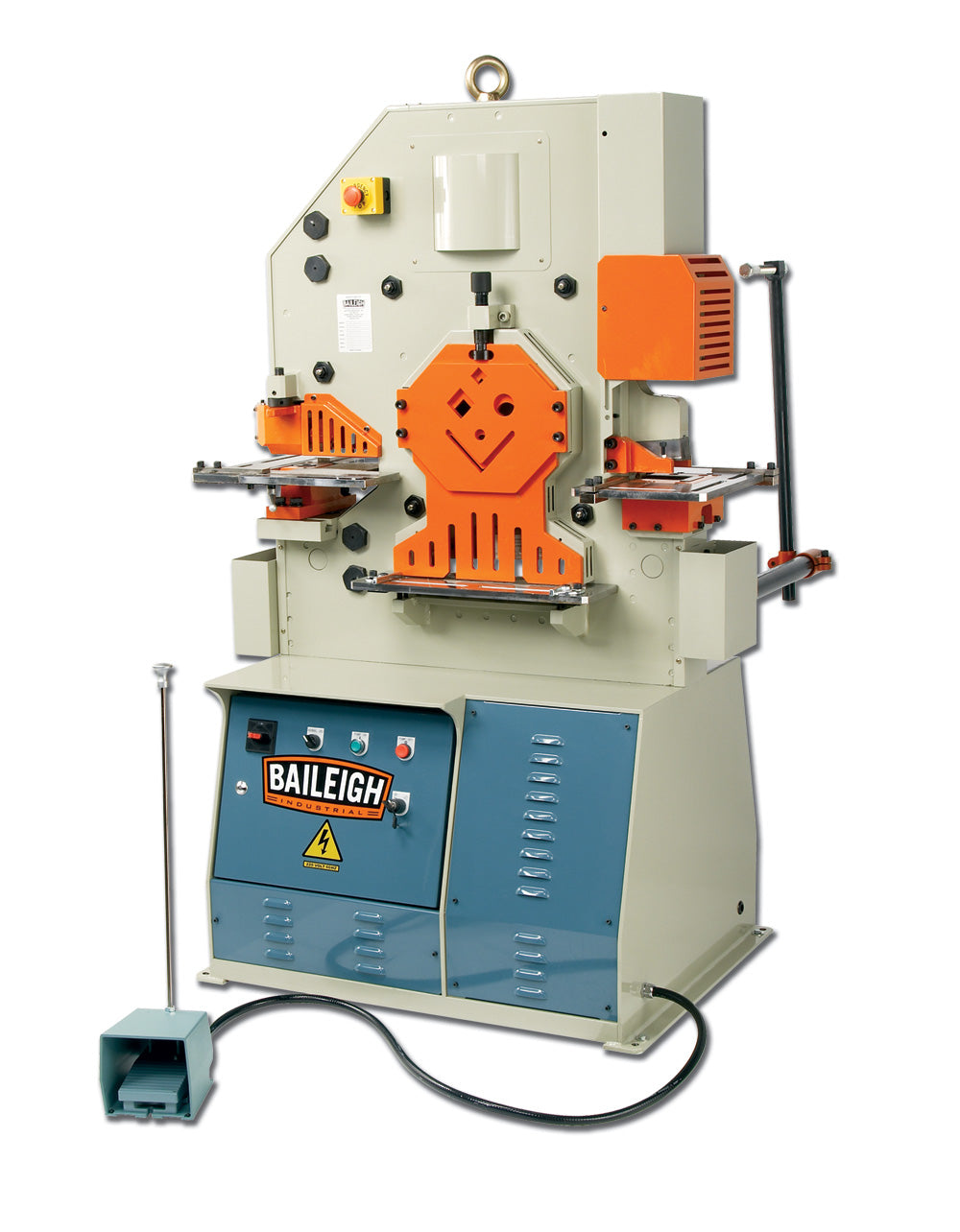

The Baileigh Hydraulic Iron Worker SW-621 is a heavy-duty single-phase ironworker engineered by Baileigh for shops that regularly take on punching, shearing, and notching applications. Delivering a robust 62 tons of pressure across five fully integrated stations, this machine is built to handle tough production demands with exceptional precision and efficiency over decades of reliable use.

Key Features

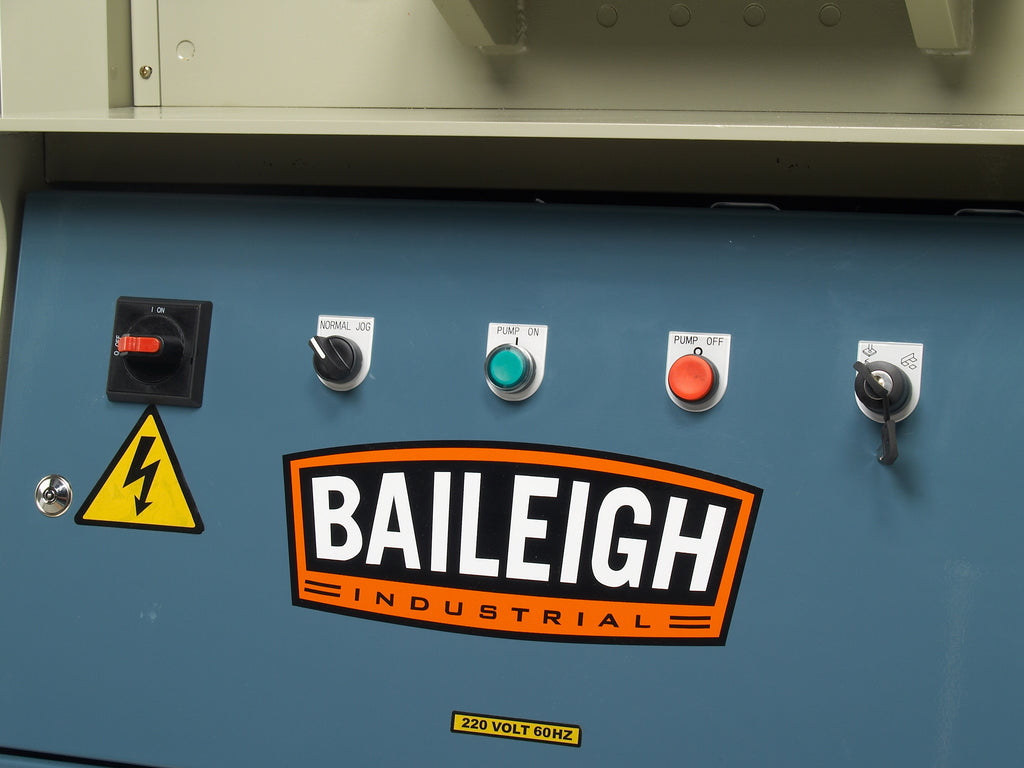

• Runs on 220-volt single-phase power and will work at almost any site in North America.
• Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
• Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds.

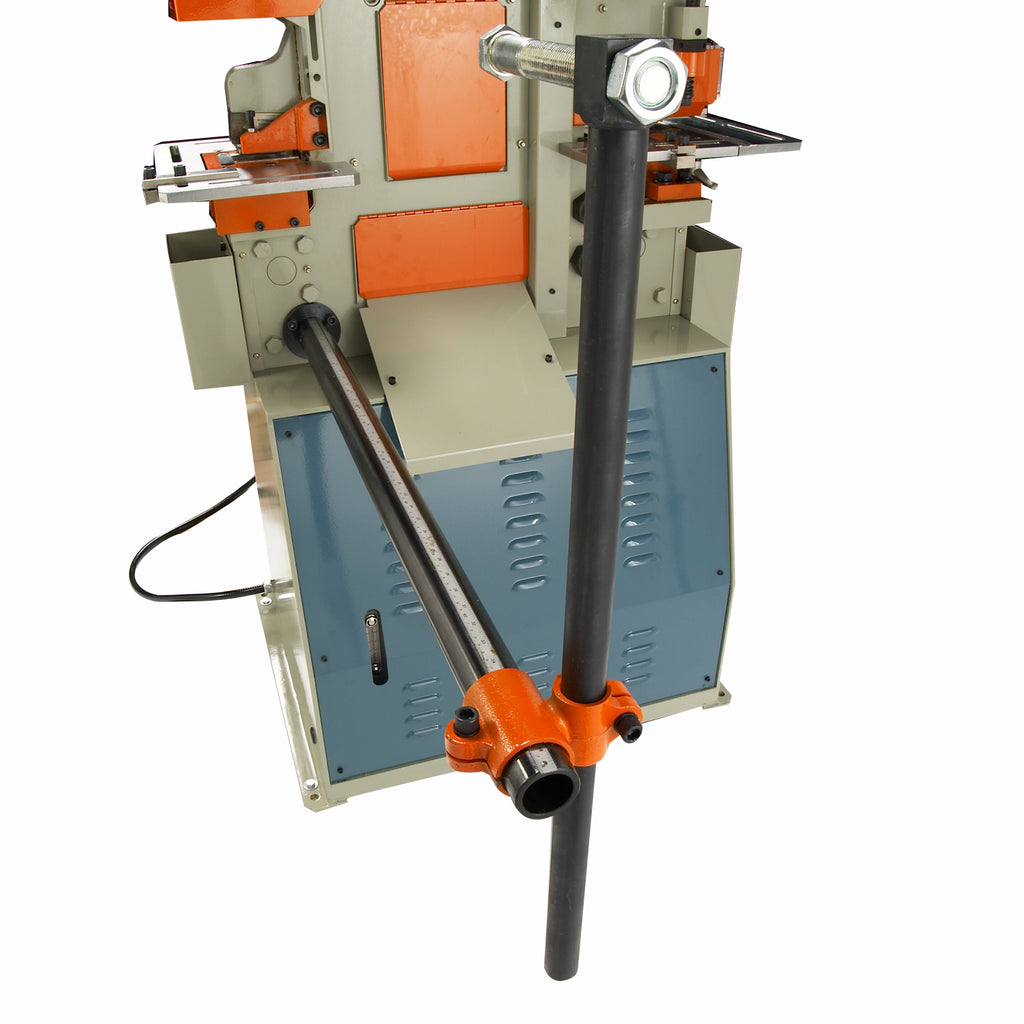

• You can set the back-gauge and material stops to save time and ensure repeatability for production runs.
• Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials.

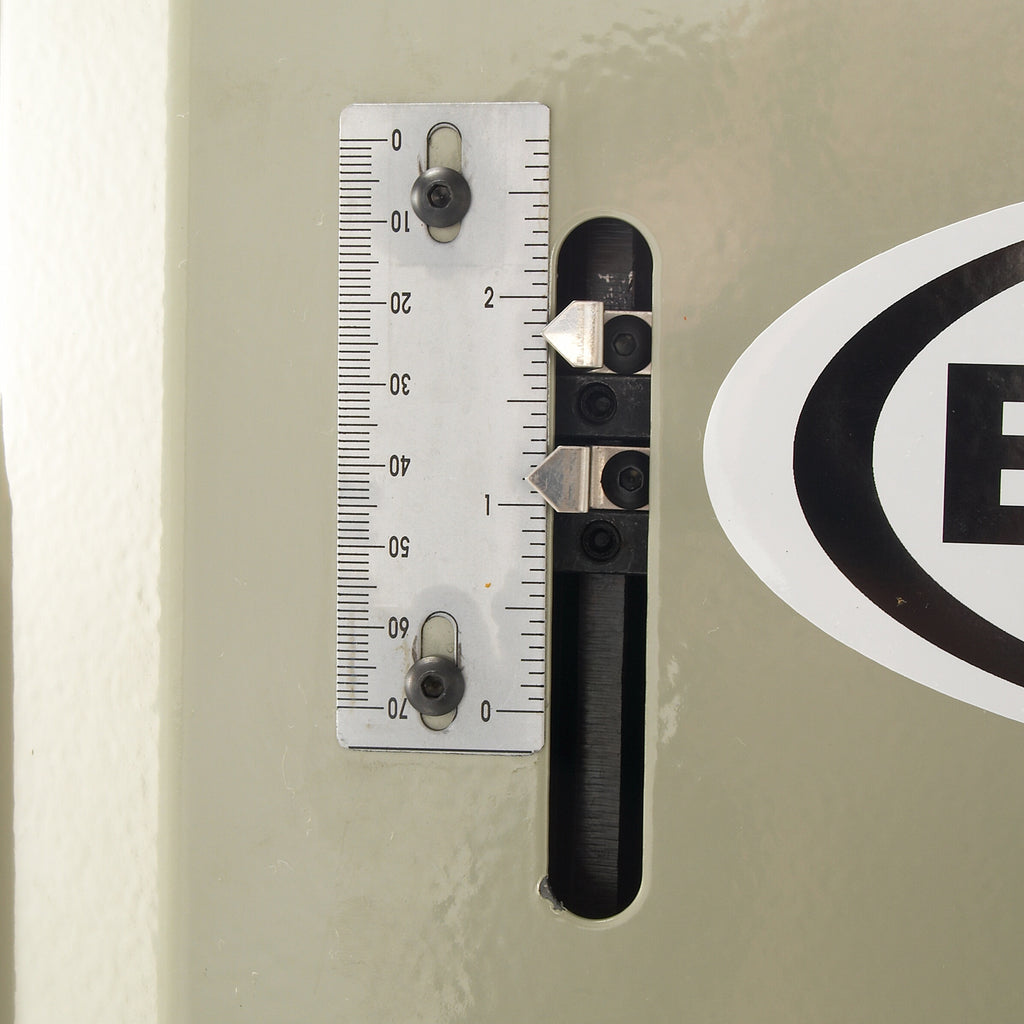

• Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear.

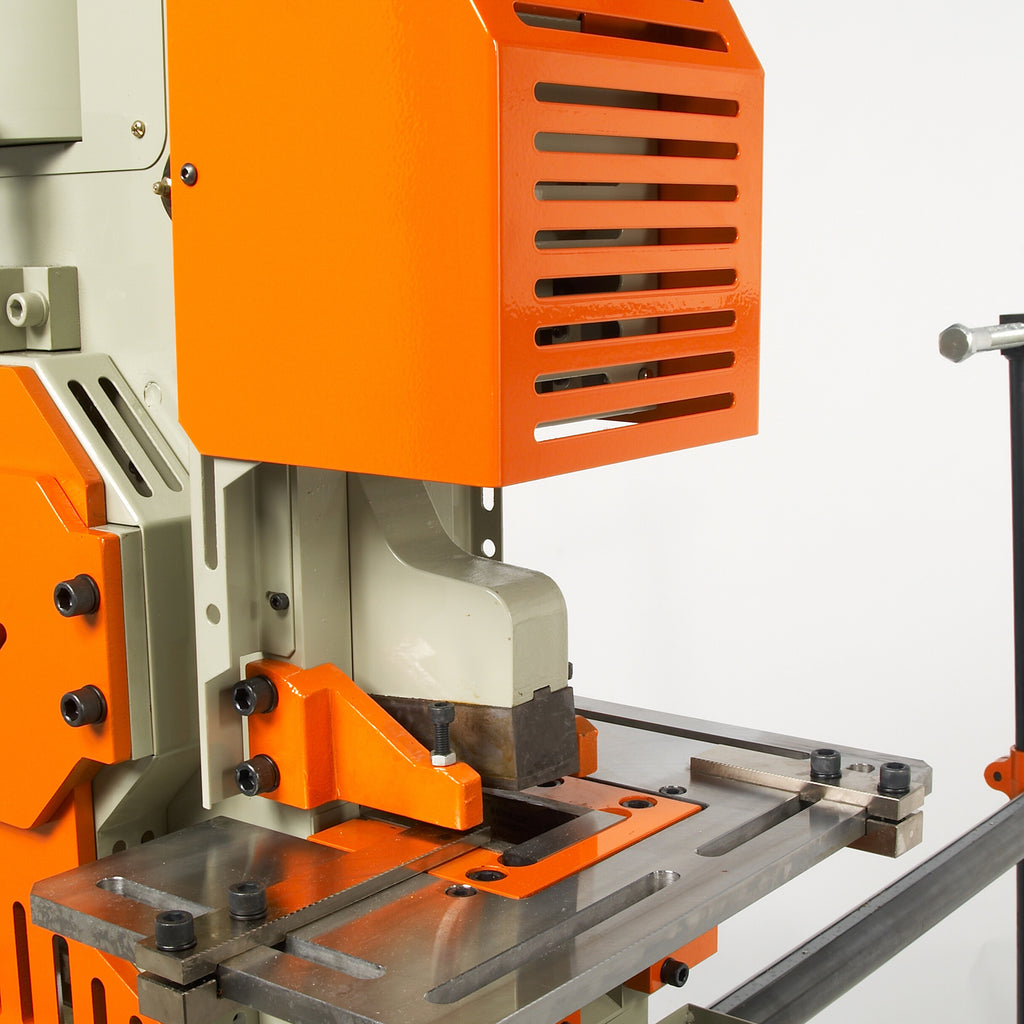

• Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes.

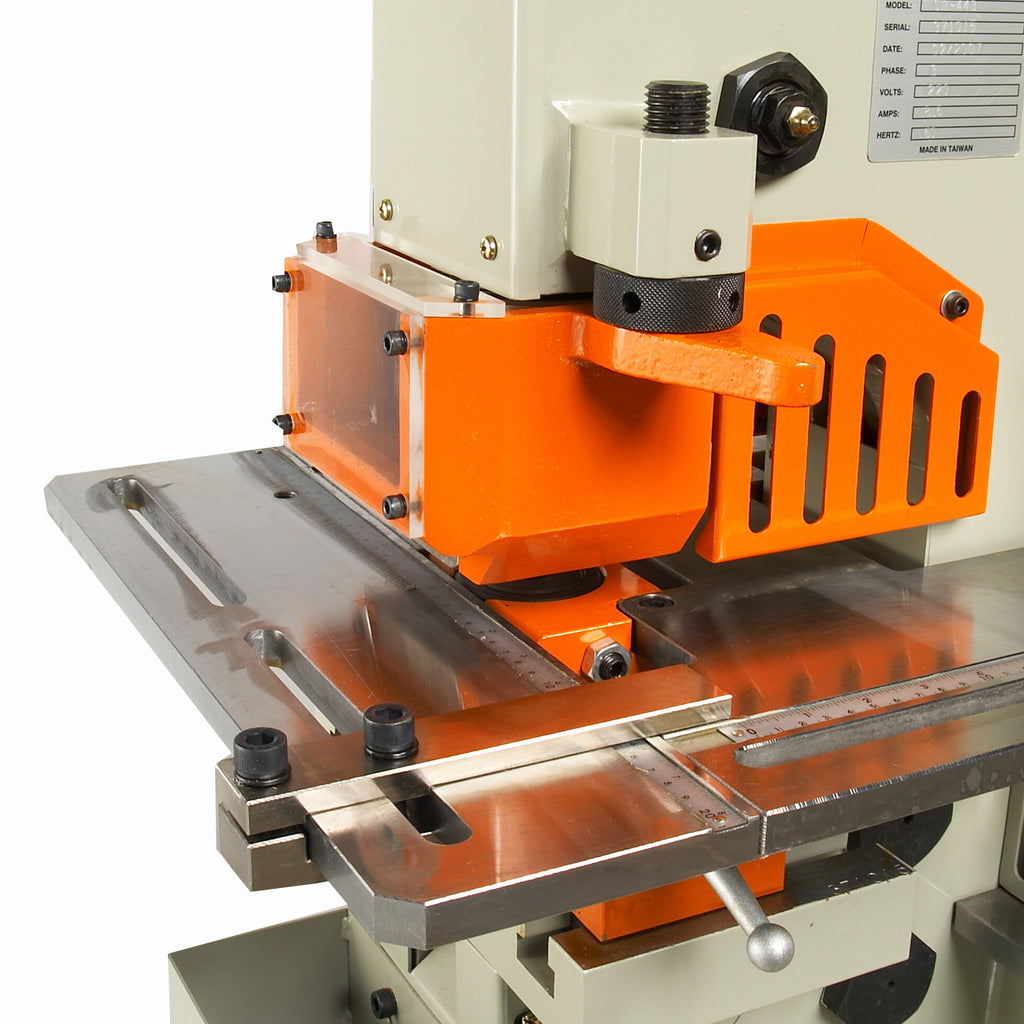

• Patented swing-away material stripper lets you change tooling in seconds.
• Specify tooling alignment with a turn of the jog dial for increased safety.
• Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.

Specifications

• Brand: Baileigh
• MPN: BA9-1007809
• Model: SW-621
• Power Requirement: 220-volt single-phase
• Tonnage: 62 tons
• Number of Integrated Stations: 5
• Stations: Punching, flat bar shearing, angle shearing, bar shearing, rectangle notching
• Punch and Die Sets Included: 7
• Country of Origin: Taiwan

What's Included

• 7 punch and die sets

Frequently Asked Questions

What type of power supply does the SW-621 require?

The SW-621 runs on 220-volt single-phase power, making it compatible with almost any site in North America without the need for special three-phase electrical infrastructure.

How many stations does the SW-621 include, and what operations can it perform?

The SW-621 features 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching. All 5 stations operate with a robust 62 tons of pressure and pure vertical hydraulic movement for exceptionally clean results.

How does the SW-621 support production runs and repeatability?

You can set the back-gauge and material stops to save time and ensure repeatability for production runs. The large 2-piece worktables with meter guides also pull out to accommodate oversized or awkwardly shaped materials, further supporting efficient, consistent workflow.

How quickly can tooling be changed on the SW-621?

The patented swing-away material stripper allows you to change tooling in seconds, minimizing downtime between jobs. Additionally, the jog dial lets you specify tooling alignment for increased safety during changeovers.
