Product Description

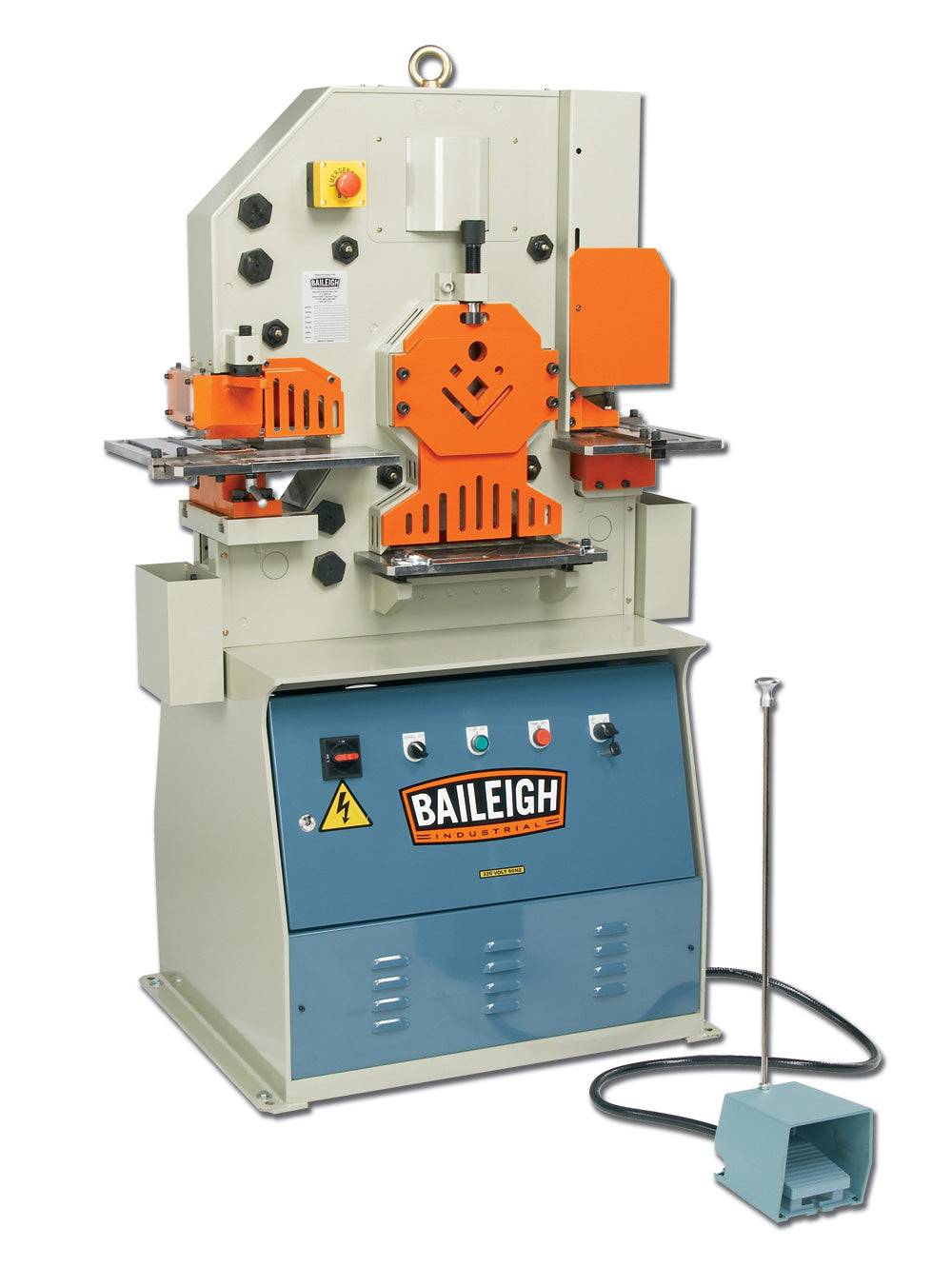

Baileigh Hydraulic Ironworker SW-503 is a heavy-duty, multi-function ironworker from Baileigh that brings five essential metalworking operations into a single compact machine. Engineered to punch, shear, notch, and more with 50 tons of vertical hydraulic force at every station, this ironworker delivers clean, precise results in seconds - eliminating deformed edges, reducing material waste, and dramatically improving throughput in demanding shop environments.
Key Features
- This 50 ton ironworker runs on 220-volt 3-phase power.
- 50 tons of vertical pressure at each of its 5 integrated stations.

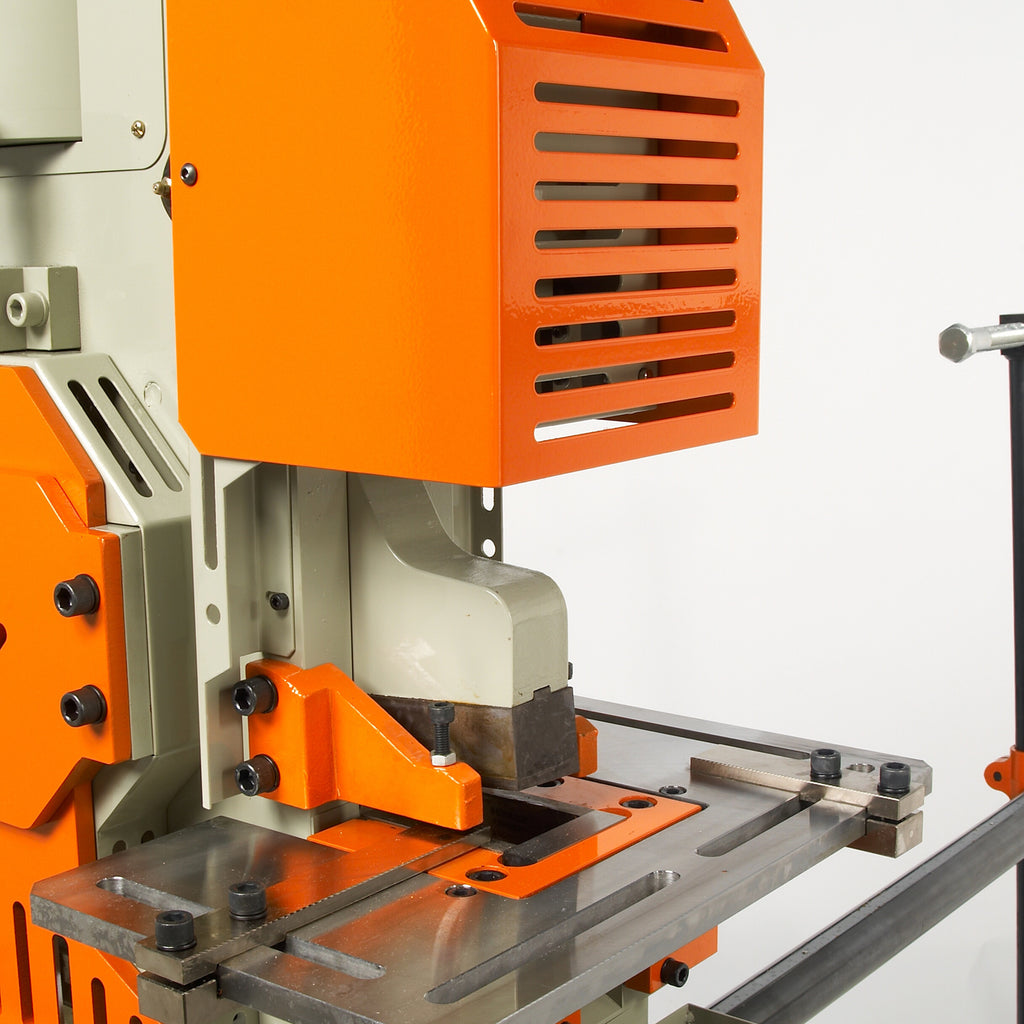

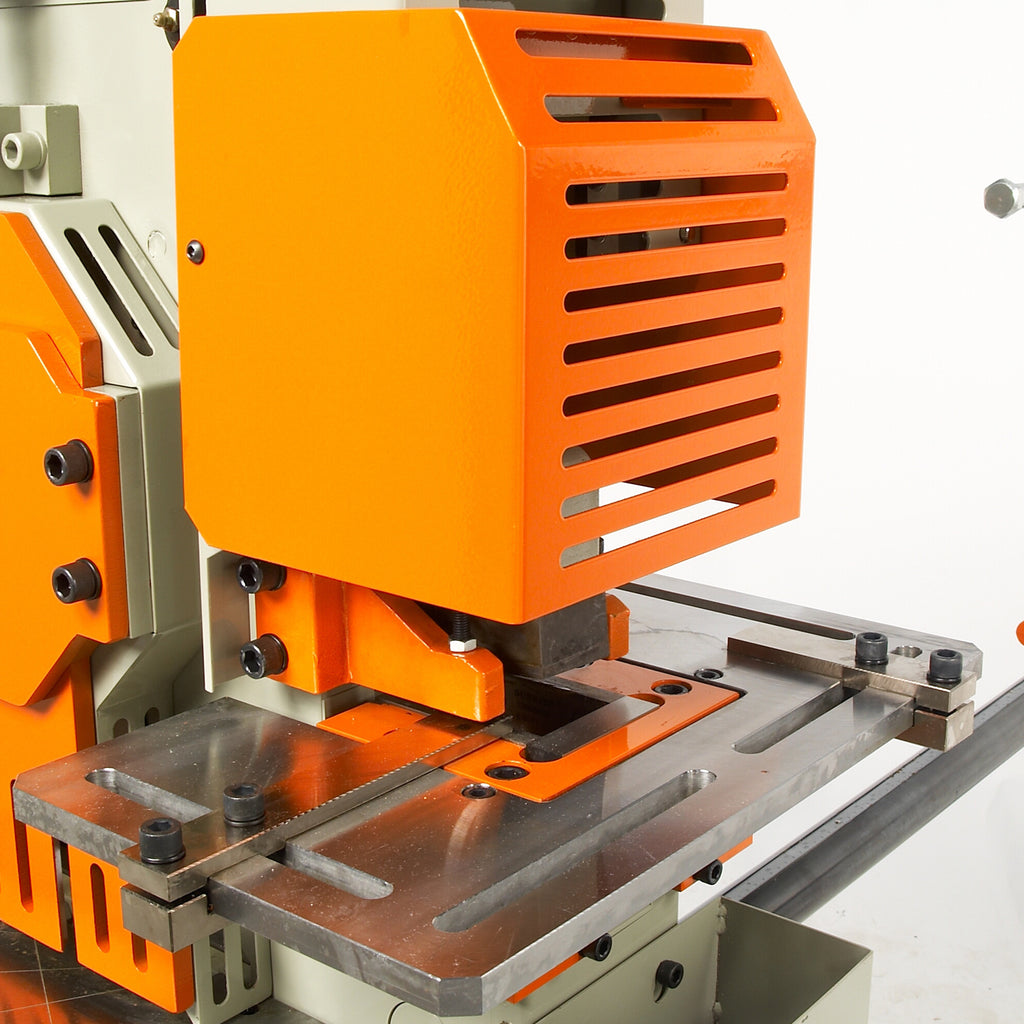

- 5 workstations each execute a different function: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
- Vertical hydraulic movement executes clean cuts in seconds, prevents deformed edges, and reduces waste.

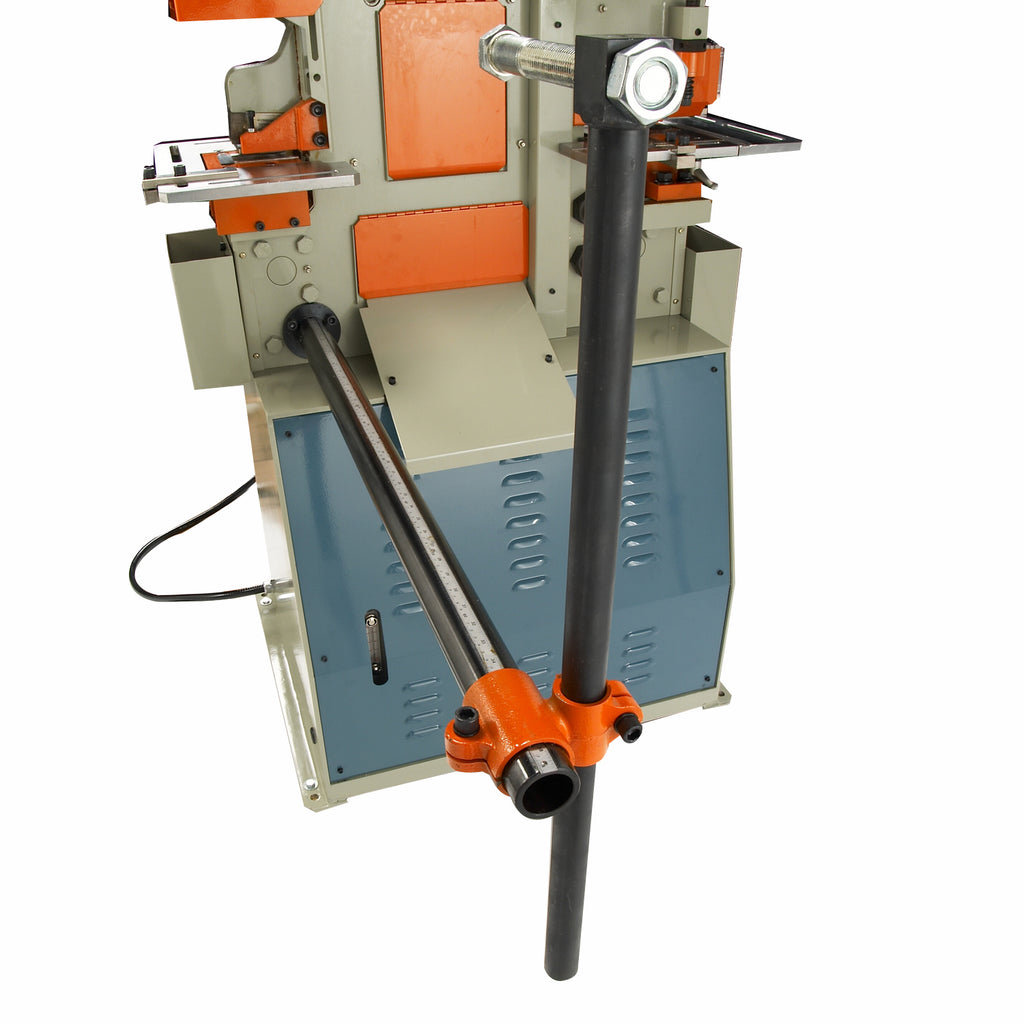

- Material stops and multi-positional back-gauge simplify production runs.
- Large 2-piece tables with meter guides pull out from the machine to handle many shapes and profiles.

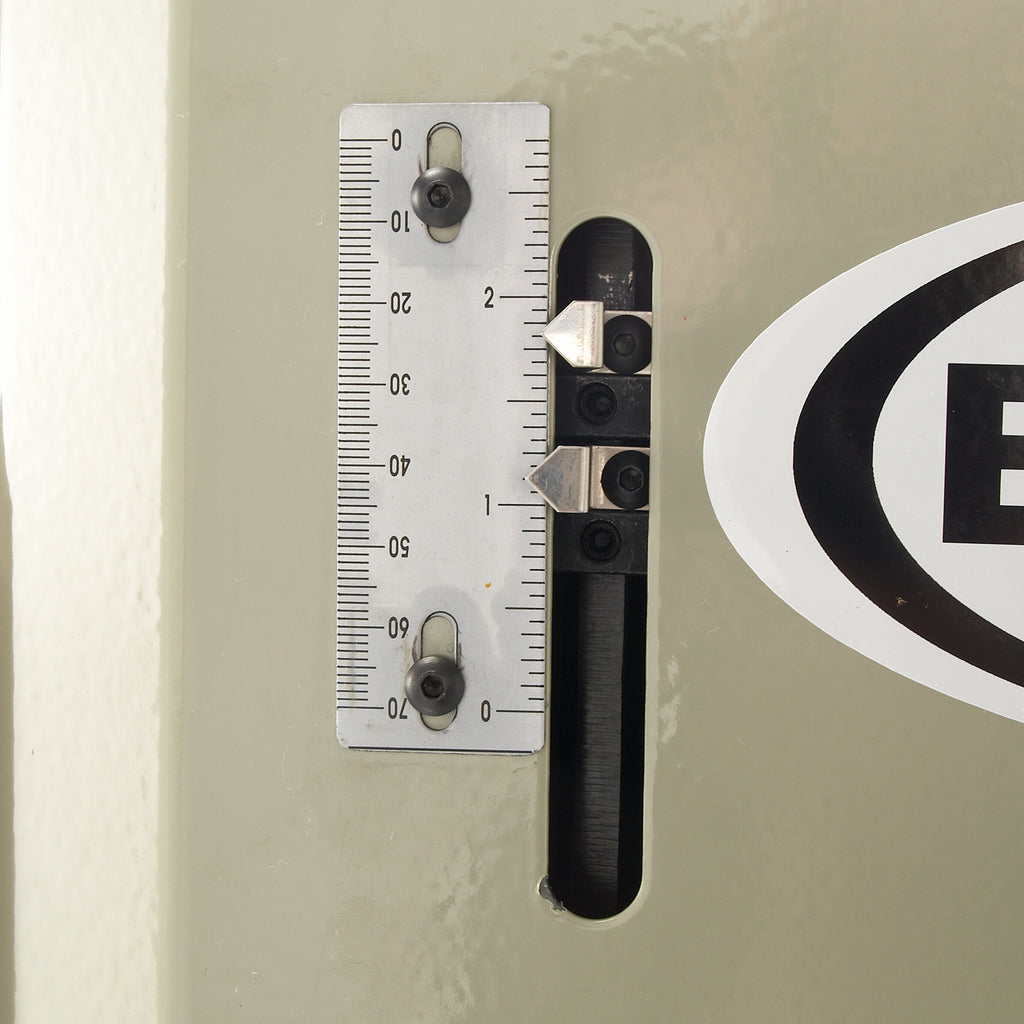

- Adjustable stroke control, with downward and upward stroke knobs, can limit machine movement and reduce production costs.

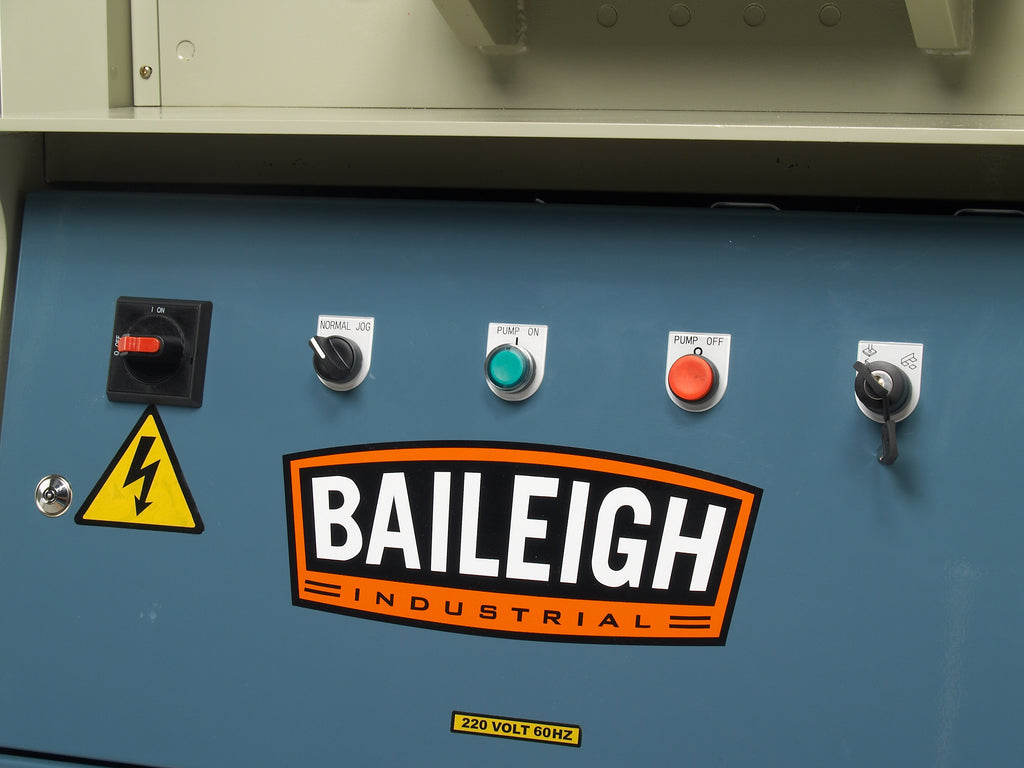

- Jog dial lets you align tooling for safe and easy set-ups.

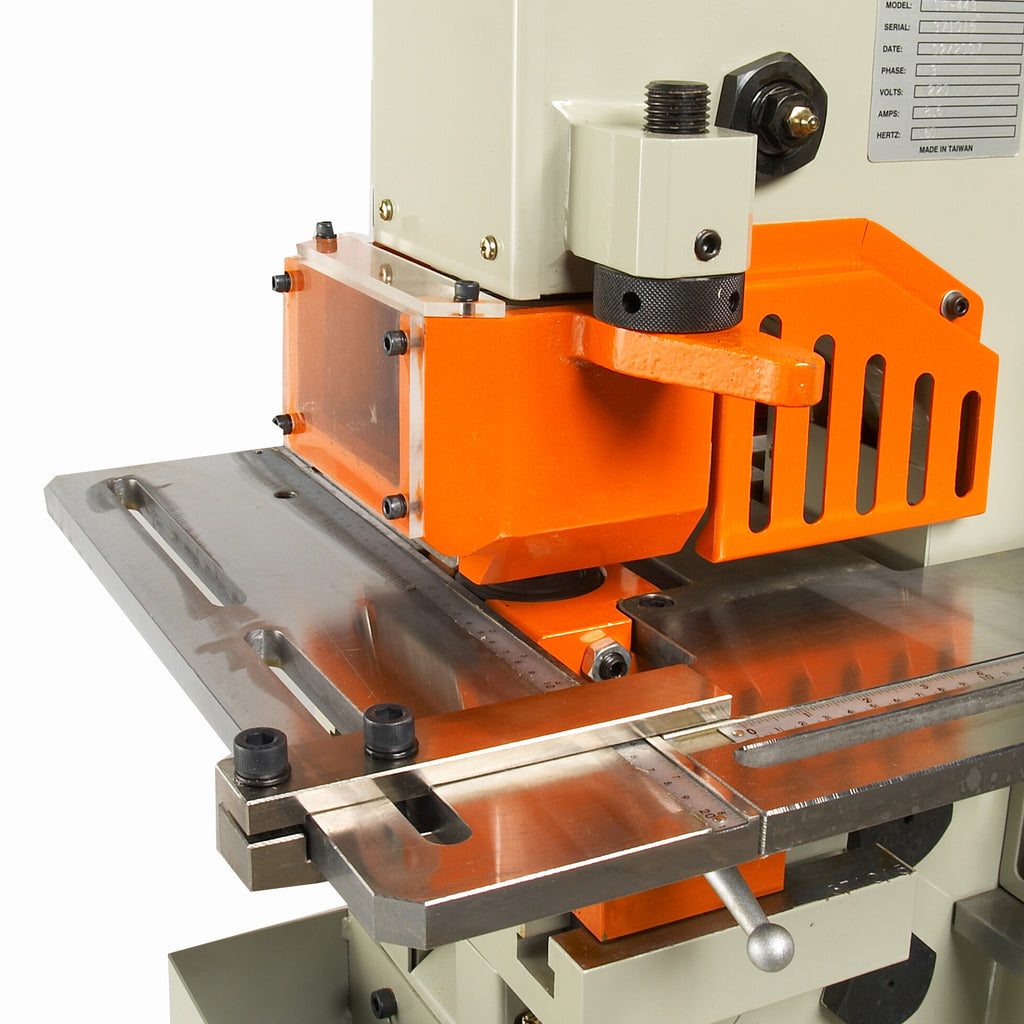

- Material hold-down with knurled handle enables you to quickly fine-tune and fit a given profile.
- Punching station includes a T-slot base.
Specifications
- MPN: BA9-1007792
- Brand: Baileigh
- Model: SW-503
- Tonnage: 50 tons
- Number of Stations: 5
- Station Functions: Punching, flat bar shearing, angle shearing, bar shearing, rectangle notching
- Power Requirement: 220-volt, 3-phase
- Country of Origin: Taiwan
Frequently Asked Questions
- How many workstations does the SW-503 include, and what does each one do?
- The SW-503 features 5 integrated workstations. Each station executes a different function: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching - giving you five distinct metalworking capabilities in a single machine.
- What power supply is required to operate the SW-503?
- This 50 ton ironworker runs on 220-volt 3-phase power. Ensure your shop has the appropriate electrical service before installation.
- How does the vertical hydraulic movement benefit my cuts compared to pivot-style mechanisms?
- Vertical hydraulic movement executes clean cuts in seconds, prevents deformed edges, and reduces waste - delivering more precise and consistent results than machines that rely on pivot mechanisms.
- What features help with quick set-ups and production runs?
- The SW-503 includes a jog dial to align tooling for safe and easy set-ups, a material hold-down with a knurled handle for fast fine-tuning, material stops and a multi-positional back-gauge to simplify production runs, and adjustable stroke control with downward and upward stroke knobs to limit machine movement and reduce production costs.
