Product Features
Product Description

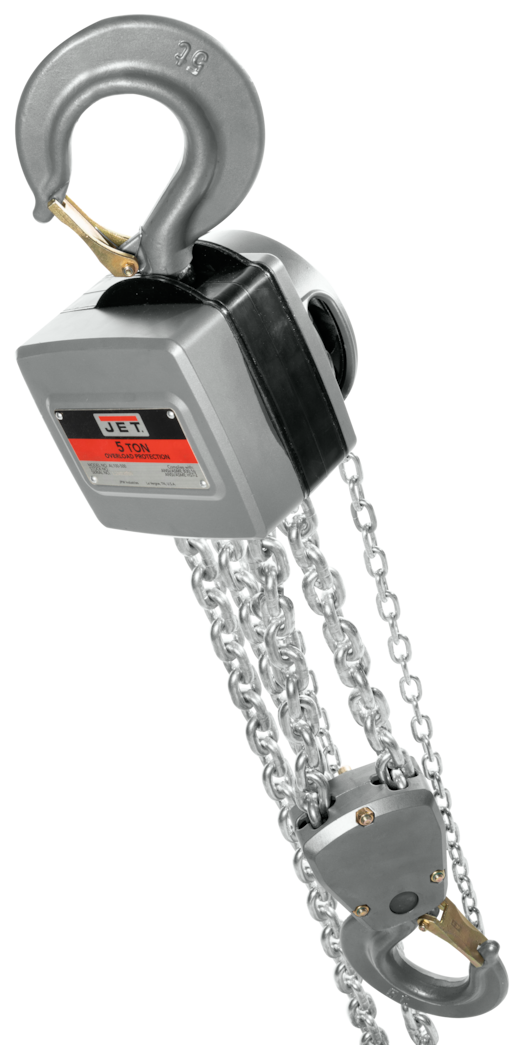

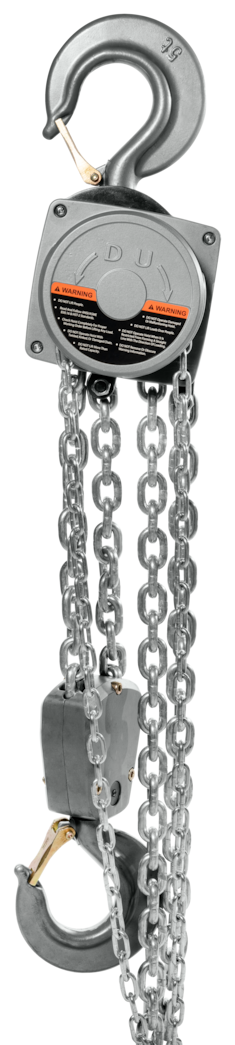

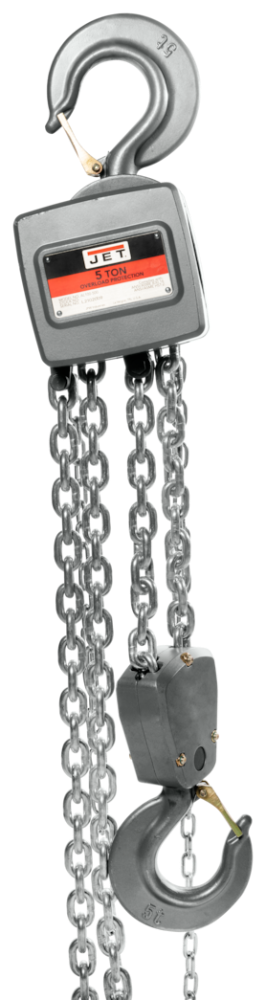

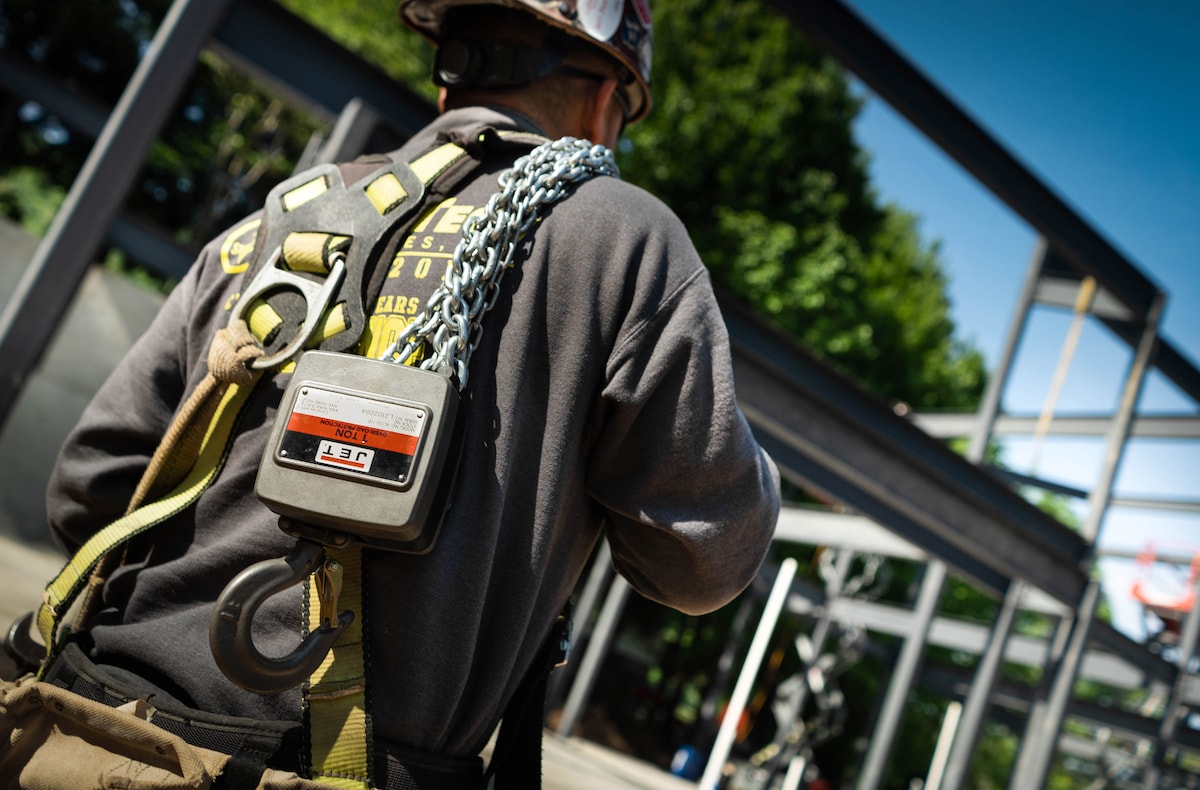

The JET 5-Ton Aluminum Hand Chain Hoist with 30ft of Lift (AL100-500-30), MPN JT9-133530, is a heavy-duty manual lifting solution engineered for demanding industrial environments. Part of JET's AL100 Series, this hoist delivers a 11,200 lb capacity while being 20% lighter and 20% thinner than comparable models - offering the smallest headroom in its class. Whether you're lifting steel beams, machinery, or other heavy loads, the AL100-500-30 combines rugged durability with precision engineering to get the job done safely and efficiently.
Key Features
- Extra large hand chain opening for side chain pulling
- Sealed housing to provide extra protection against the elements
- Complies with ANSI/ASME B30.16 and HAST-2 Standards

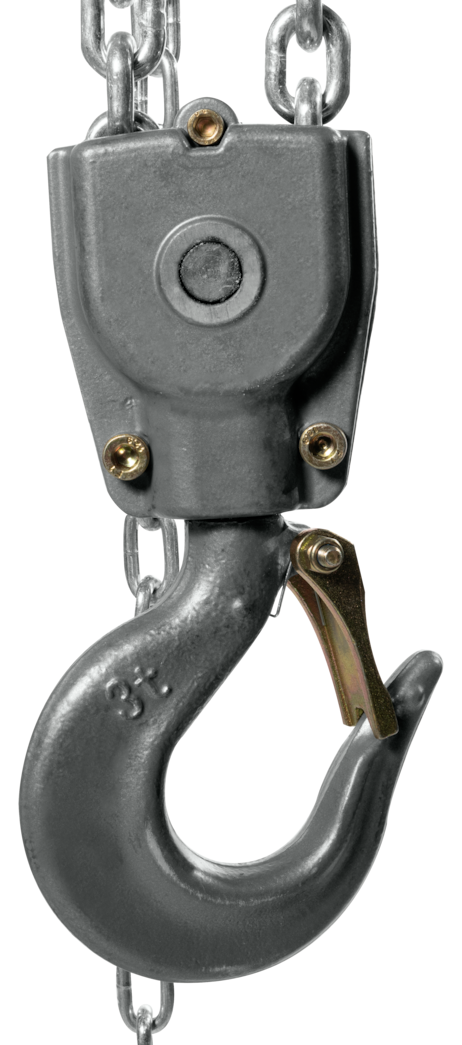

- Cast steel safety latches for secure and reliable hook retention
- Dual pawl Weston style brake for controlled, dependable load holding
- Grade 100 load chain is heat treated for additional strength and zinc plated for corrosion resistance
- Patented Fused Brake Design provides durability and increases safety backed by a lifetime replacement warranty
- AL100 Series is 20% lighter and 20% thinner with the smallest headroom compared to the closest competitor on the market
Specifications
- MPN: JT9-133530
- Stock Number: 133530
- Brand: JET
- Load Capacity (Tons): 5
- Capacity (Lbs.): 11200
- Lift (Ft.): 30
- Load Chain Dimensions (dia/mm): 9 x 27
- Headroom (In.): 22-13/16
- Hand Chain to Lift Load 1 ft.: 191
- Lbs. of Pull to Lift Capacity: 82.0000
- Weight (Lbs.): 131.63
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What brake system does the JET AL100-500-30 use?
- This hoist features a dual pawl Weston style brake combined with JET's Patented Fused Brake Design. This combination provides controlled load holding, enhances overall durability, and increases safety - and the Fused Brake Design is backed by a lifetime replacement warranty.
- What safety and compliance standards does this hoist meet?
- The JET AL100-500-30 complies with ANSI/ASME B30.16 and HAST-2 Standards, ensuring it meets recognized industry benchmarks for manual chain hoist safety and performance. It also features cast steel safety latches for additional load security.
- How is the load chain protected against corrosion and wear?
- The Grade 100 load chain is heat treated for additional strength and zinc plated for corrosion resistance, making it well-suited for use in environments where moisture or harsh conditions may be present. The sealed housing further protects internal components against the elements.
- What is the headroom requirement and how does the AL100-500-30 compare in size to competitors?
- The headroom dimension is 22-13/16 inches. The AL100 Series is 20% lighter, 20% thinner, and offers the smallest headroom compared to the closest competitor on the market, making it easier to use in tight or overhead-clearance-restricted applications where a standard hoist may not fit as effectively.
