Product Features
Product Description

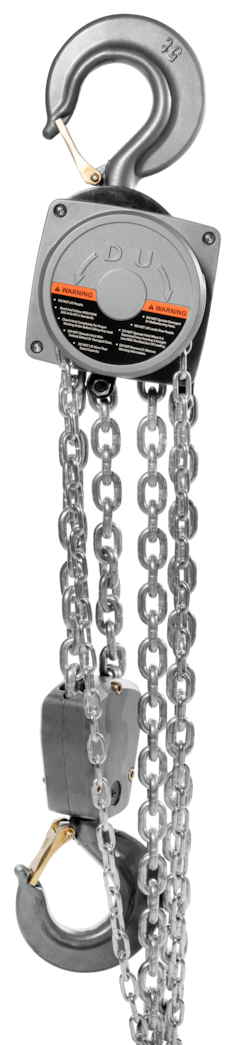

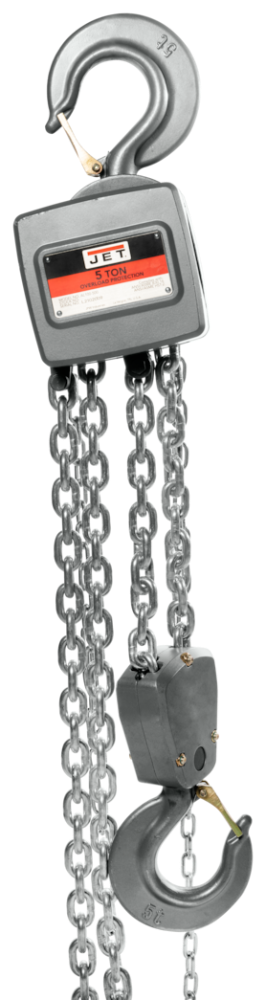

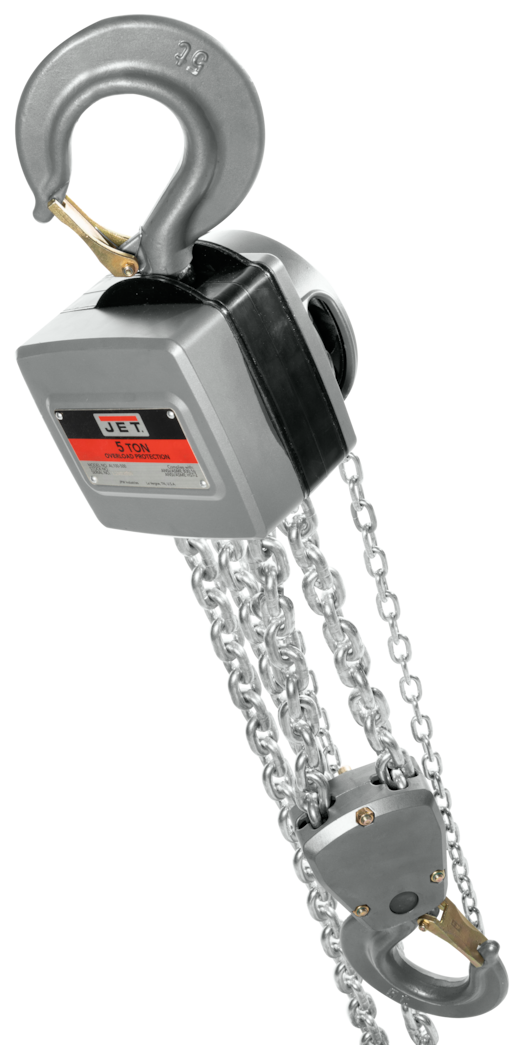

The JET 5-Ton Aluminum Hand Chain Hoist with 20ft of Lift (AL100-500-20), MPN JT9-133520, is a professional-grade manual chain hoist engineered by JET for demanding lifting applications requiring up to 11,200 lbs of capacity. Part of the AL100 Series, this hoist is designed to be 20% lighter and 20% thinner than comparable models while offering the smallest headroom in its class - making it an exceptional choice for tight overhead clearances and heavy-duty material handling across industrial, construction, and maintenance environments.
Key Features

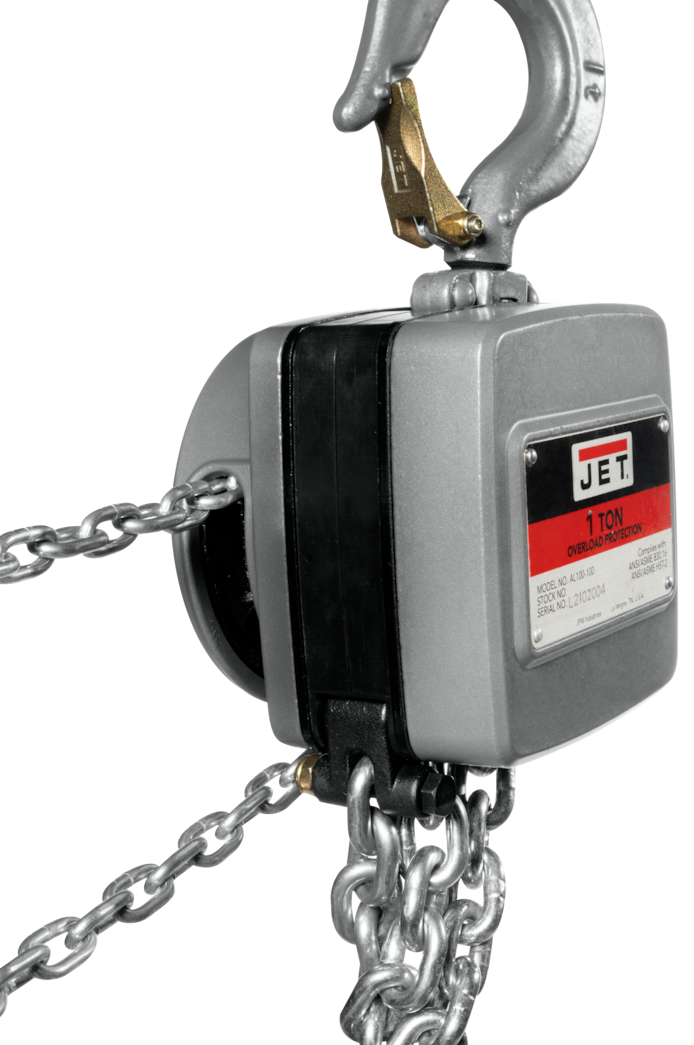

- Extra large hand chain opening for side chain pulling, improving versatility and ease of use in confined or awkward rigging scenarios
- Sealed housing provides extra protection against the elements, extending service life in harsh or outdoor environments
- Complies with ANSI/ASME B30.16 and HAST-2 Standards for safe and reliable overhead lifting

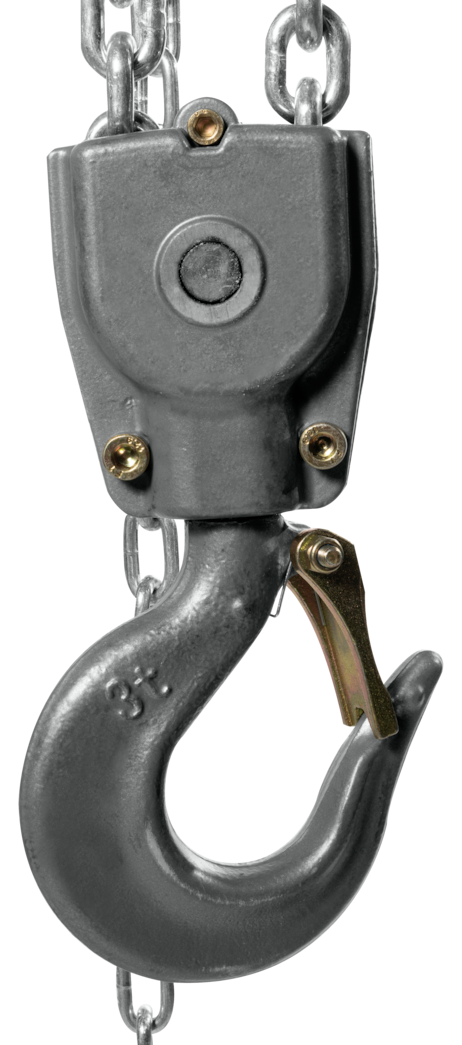

- Cast steel safety latches deliver robust hook security under heavy load conditions
- Dual pawl Weston style brake offers reliable load holding and controlled lowering performance
- Grade 100 load chain is heat treated for additional strength and zinc plated for corrosion resistance, ensuring long-term durability
- Patented Fused Brake Design provides durability and increases safety, backed by a lifetime replacement warranty
- AL100 Series design is 20% lighter and 20% thinner compared to the closest competitor, reducing operator fatigue and improving maneuverability
- Smallest headroom in class at 22-13/16 in., ideal for low-clearance lifting environments
Specifications
- MPN: JT9-133520
- Stock Number: 133520
- Brand: JET
- Capacity (Lbs.): 11,200
- Load Capacity (Tons): 5
- Lift (Ft.): 20
- Headroom (In.): 22-13/16
- Load Chain Dimensions (dia/mm): 9 x 27
- Hand Chain to Lift Load 1 ft.: 191
- Lbs. of Pull to Lift Capacity: 82.0000
- Weight (Lbs.): 99.91
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What is the maximum load capacity of this hoist?
- This hoist has a maximum load capacity of 11,200 lbs (5 tons), making it suitable for heavy-duty industrial lifting and rigging tasks.
- What safety standards does this hoist comply with?
- This hoist complies with ANSI/ASME B30.16 and HAST-2 Standards, ensuring it meets established safety requirements for manual overhead lifting equipment.
- What makes the brake system on this hoist reliable?
- This hoist features both a dual pawl Weston style brake for controlled load holding and lowering, as well as a Patented Fused Brake Design that provides durability and increases safety. The Patented Fused Brake Design is backed by a lifetime replacement warranty.
- How is the load chain protected against corrosion and wear?
- The Grade 100 load chain is heat treated for additional strength and zinc plated for corrosion resistance, ensuring reliable performance in demanding or corrosive working conditions.
